BSS-100kg Load cell A product belonging to the American Transcell brand, made of high-quality alloy steel and certified by NETP, CMC, and PA, it has the advantages of simple, fast, stable, and reliable installation. It is suitable for weighing machines such as material testing machines, batching scales, mixing stations, belt scales, and packaging scales
1、 American Transmission BSS-100kg Load Cell Product Introduction
Product series:BSS
Product features:
-High quality alloy steel material
-Certified through NETP, CMC, PA
-Easy and fast installation, stable and reliable
-Suitable for material testing machines, batching scales, mixing stations, belt scales, and packaging scales, etc
-Optional range: 100kg, 200kg, 250kg, 500kg, 750kg, 1t, 1.5t, 2t, 2.5t, 5t, 7.5t, 10t
Wiring method:
Red:+Motivation
Black: - Motivation
Green:+signal
White: - Signal

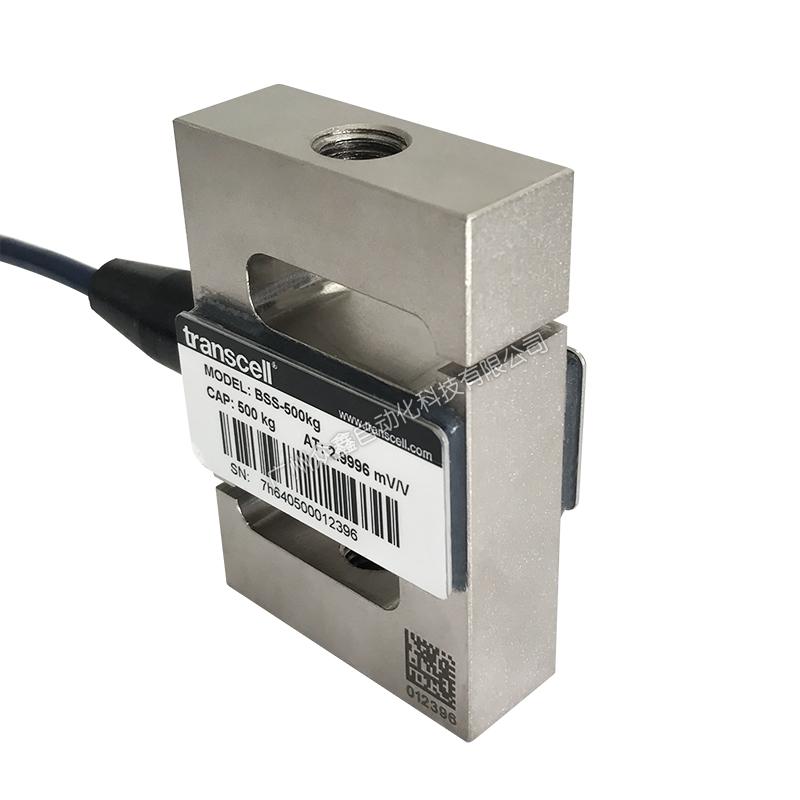

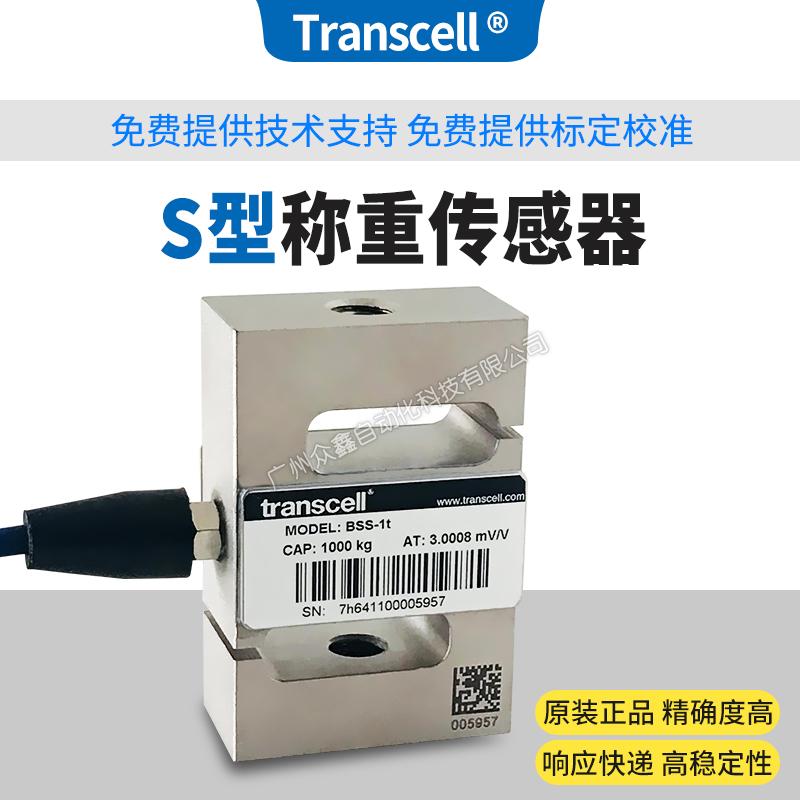

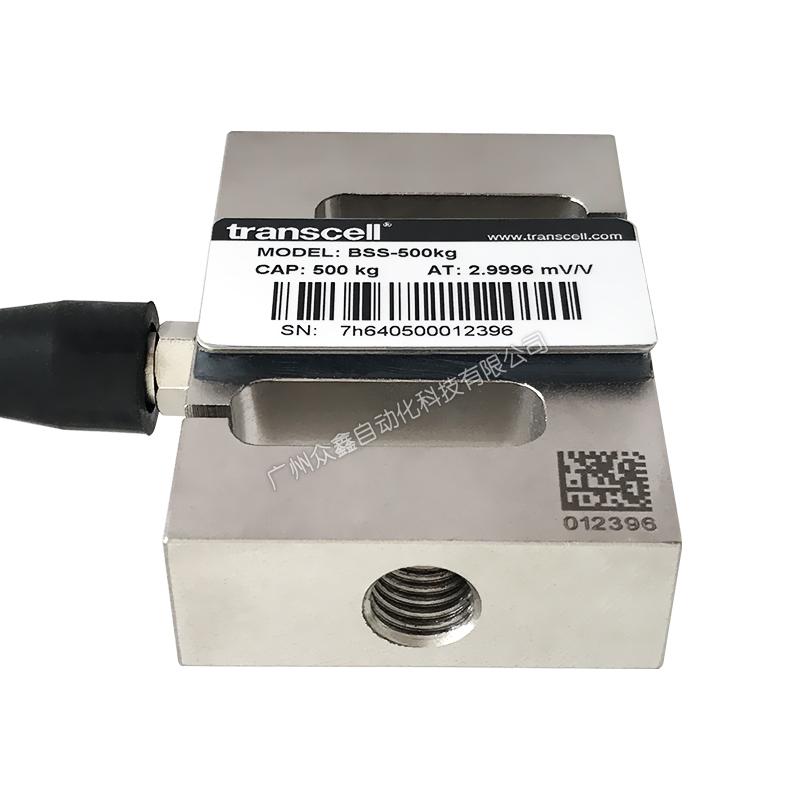

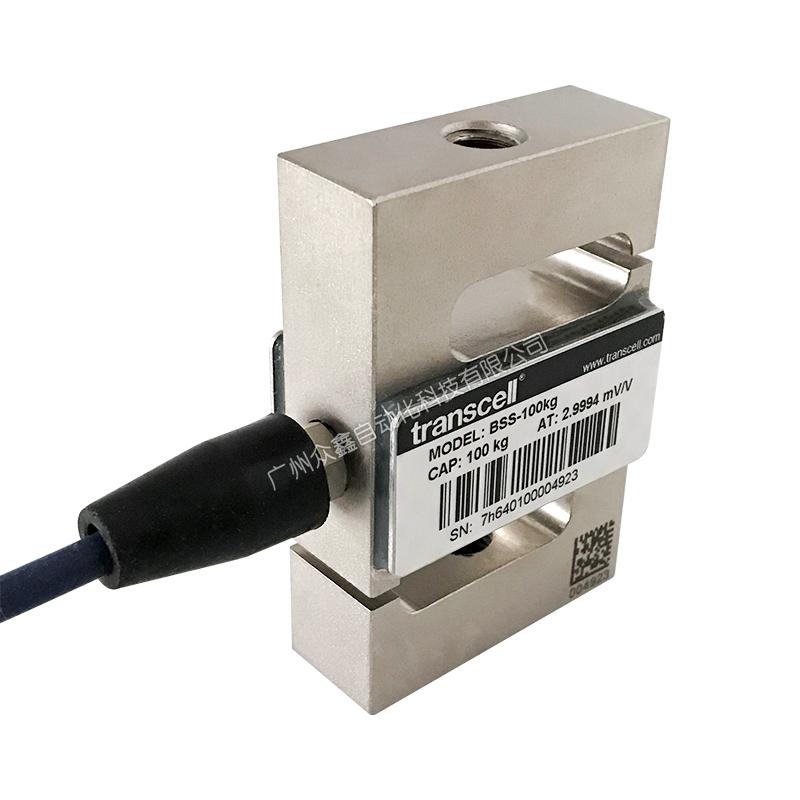

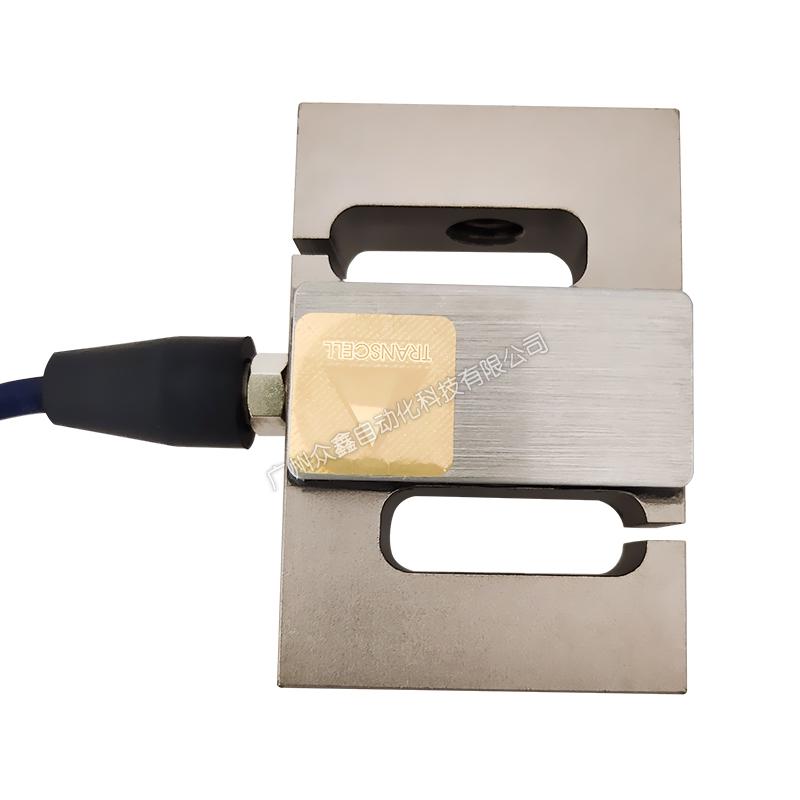

2、 Actual photo of the BSS-100kg Load cell of the American Chuanli
3、 BSS-100kg Load Cell related models from the United States
BSS-100kg Load cell
BSS-200kg Load cell
BSS-250kg Load cell
BSS-500kg Load cell
BSS-750kg Load cell
BSS-1t Load cell
BSS-1.5t Load cell
BSS-2t Load cell
BSS-2.5t Load cell
BSS-5t Load cell
BSS-7.5t Load cell
BSS-10t Load cell
4、 Product dimensions of American Transforce BSS-100kg Load Cell
5、 Technical parameters of BSS-100kg Load cell from the United States
|
Rated Output |
Rated output |
3.0mV/V ±0.1% |
|
Zero Balance |
Zero balance |
±1% of rated output |
|
Creep after 30 minutes |
creep |
±0.03% of rated output |
|
Nonlinearity |
Nonlinear |
±0.03% of rated output |
|
Hysteresis |
lagging |
±0.03% of rated output |
|
Repeatability |
Repeatability |
±0.03% of rated output |
|
Temp, effect on output |
Sensitivity temperature drift |
<0.002% of applied output/℃ |
|
Temp, effect on zero |
Zero temperature drift |
<0.002% of rated output/℃ |
|
Safe Temp. Range |
Available temperature range |
-10℃ to + 70℃ |
|
Temp. Compensated |
Temperature compensation range |
-10℃ to + 40℃ |
|
Safe Overload |
Safe load |
150% |
|
Input Impedance |
Input impedance |
387 ohm ± 20 ohm |
|
Output Impedance |
Output impedance |
350 ohm ± 5 ohm |
|
Insulation Resistance |
Insulation impedance |
>5000 M ohm (50V DC) |
|
Rated Excitation |
Recommended excitation voltage |
10V DC/AC |
|
Maximum Excitation |
Maximum excitation voltage |
15V DC/AC |
|
Cable Length |
Wire length |
6m |
|
Cable Color Code |
Wire color |
Red( + E) Black(-E) Green( + S) White(-S) |
6、 Safety instructions for the American Transcell BSS-100kg load cell
The BSS Series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose
To ensure safe operation, load cells can only be used according to the instructions in the installation instructions During use, it is also necessary to comply with the relevant legal and safety requirements of the application This also applies to the use of attachments
If a load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading) In order to operate safely and without faults, Load Cells must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overloading
The load of BSS-100kg Load Cell is 100kg. When using it, attention should be paid to the possibility of instantaneous overload, which may also cause damage to the sensor. A larger range can be chosen
