[Guangzhou Zhongxin Automation Technology Co., Ltd.] Professional supply

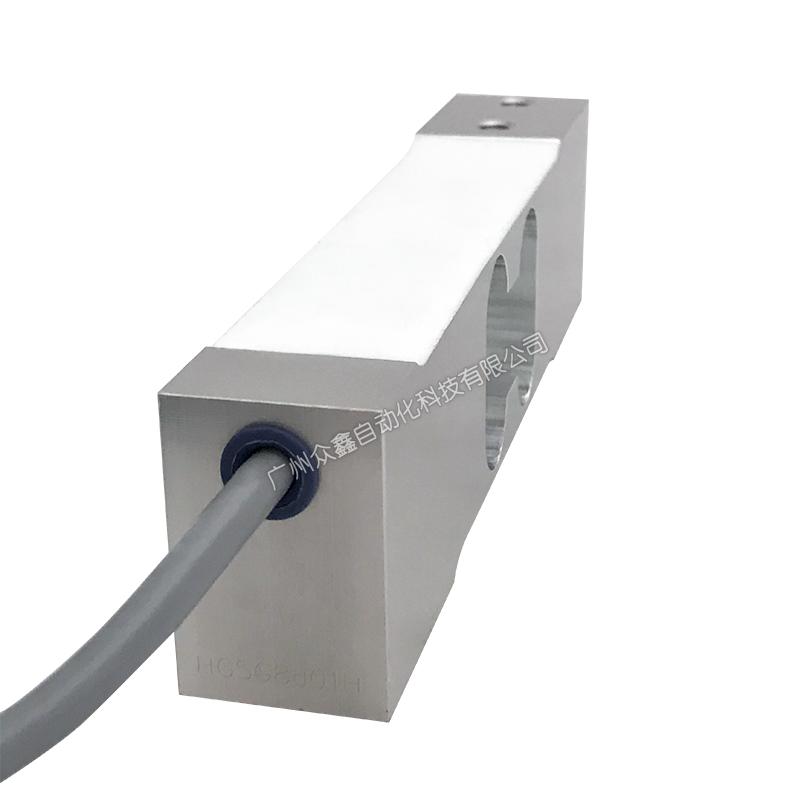

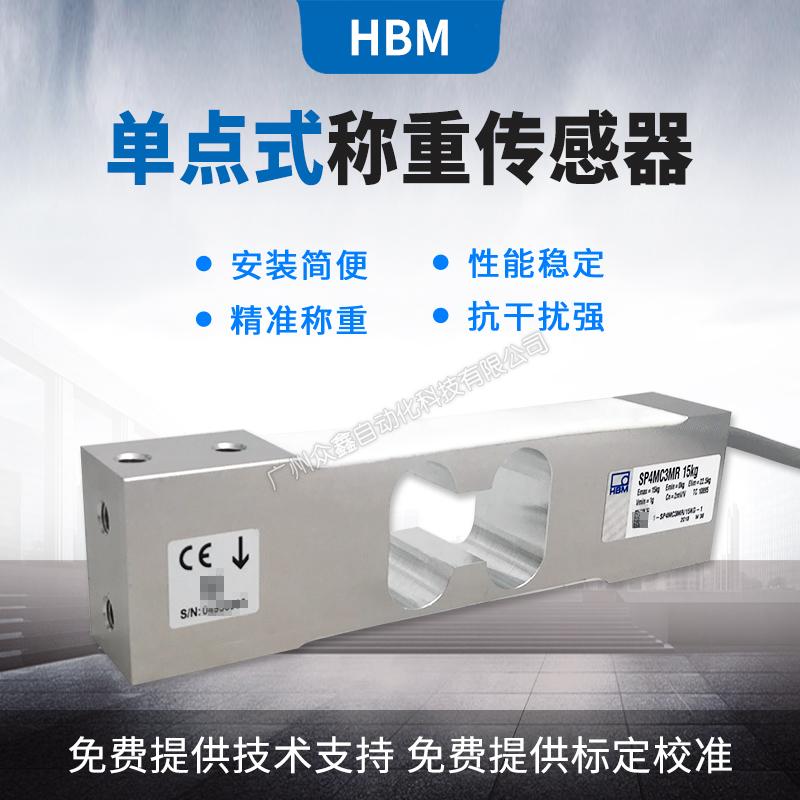

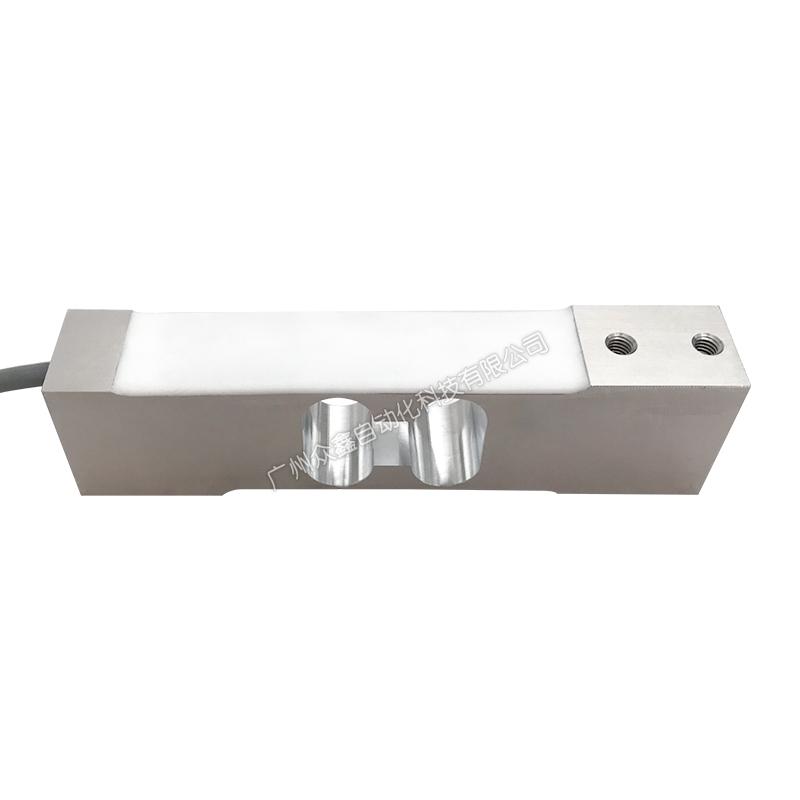

German HBM 1-SP4MC3 Series weighing sensors, [SP4M Single point sensor] 1-SP4MC3/1kg-1~SP4MC3/200kg_ German HBM Load cell guarantees fast delivery time, 100% original import, and strives to become the top brand for sensor sales in China German HBM 1-SP4MC3 series
Load cell Related models: 1-SP4MC3/1KG-1, 1-SP4MC3/3KG-1, 1-SP4MC3/5KG-1, 1-SP4MC3/7KG-1, 1-SP4MC3/10KG-1, 1-SP4MC3/15KG-1, 1-SP4MC3/20KG-1, 1-SP4MC3/30KG-1, 1-SP4MC3/50KG-1, 1-SP4MC3/75KG-1, 1-SP4MC3/100KG-1, 1-SP4MC3/150KG-1, 1-SP4MC3/200KG-1
German HBM 1-SP4M series Product Introduction
Product brand:
German HBM Load cell , HBM Load cell
Product features:
C3 and C6 accuracy according to OIML-R60
Eccentric load compensation (OIML R 76)
Multi range applications
Shielded cable
option
Explosion proof model
Different cable lengths
Output adjustment, suitable for parallel connection
German HBM 1-SP4M series Installation dimensions
German HBM 1-SP4M series technical data
Extended Reading
The Origin of Single Point Load Cell
In the discussions at the first International Industrial Weighing and Force-measuring Exhibition in 1979, a new term emerged in the terminology of sensors: "single point" force sensing. The latest generation of retail scales did not include any auxiliary flexors supporting the upper weighing software platform, which was rigidly fixed to the center sensor The design of this kind of single point force sensor is based on the principle of parallelogram, but an additional central cross beam shall be provided for pasting Strain gauge, so as to complete the task of measuring beams and flexure pieces in the top and bottom parts of parallelogram The advantage is that the Strain gauge leaves the position with twisting effect caused by eccentric loading, and increases the rigidity of the structure This type of force sensor is subjected to eccentric loading tests at the manufacturing plant Apply 1/3 of the sensor's ultimate load in different directions within a radius of 200 millimeters Each sensor must operate within ± 1/3000 of the center reading value, a typical design Another eye-catching new news in the field of force sensors is the promotion and application of the principle of gyroscopes. The gyroscopic force measurement system utilizes the proprietary characteristics of the gyroscope, making it a precise, linear, and reproducible force sensor. After studying the anti hysteresis, anti drift, and anti temperature effects of this force sensor, the gyroscopic force measurement system can transmit direct digital signals to the display unit with high anti-interference performance These characteristics make it completely independent of harsh environmental conditions The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal support There is an external universal support suspended by a movable joint, which also supports one end of the rotatable lever under the yoke
The above are [SP4M Single point sensor] 1-SP4MC3/1kg-1~SP4MC3/200kg_ German HBM Load cell Detailed information, if you are interested in [SP4M Single point sensor] 1-SP4MC3/1kg-1~SP4MC3/200kg_ If you have any questions about the price, lead time, model, or inventory of the German HBM Load cell, please feel free to call
