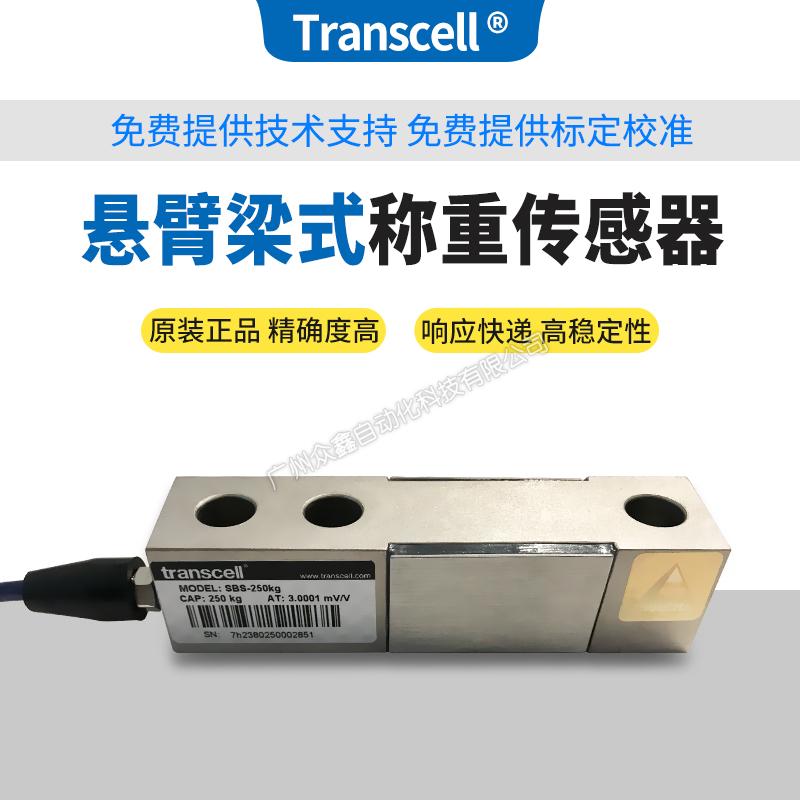

SBS-10T Load cell A product belonging to the Transcell brand in the United States, made of high-quality alloy steel and coated with nickel for anti-corrosion treatment. It has been certified by NTEP, CMC, and OIML, and has the advantages of high precision, high stability, easy installation, and speed. It is suitable for weighing scales such as platform scales, mixing plants, belt scales, and ingredient scales
1、 Transmission SBS-10T Load Cell Product Introduction
Product series:SBS
Product features:
-High quality alloy steel material
-High precision
-High stability
-Certified through NTEP, CMC, OIML
-Easy and fast installation
-Surface nickel plating anti-corrosion treatment
-Suitable for platform scales, mixing plants, belt scales, and ingredient scales, etc
Optional range: 250lb, 250kg, 500kg, 1T, 1.5T, 2T, 2.5T, 5T, 7.5T, 10T
Wiring method:
Red:+Motivation
Black: - Motivation
Green:+signal
White: - Signal

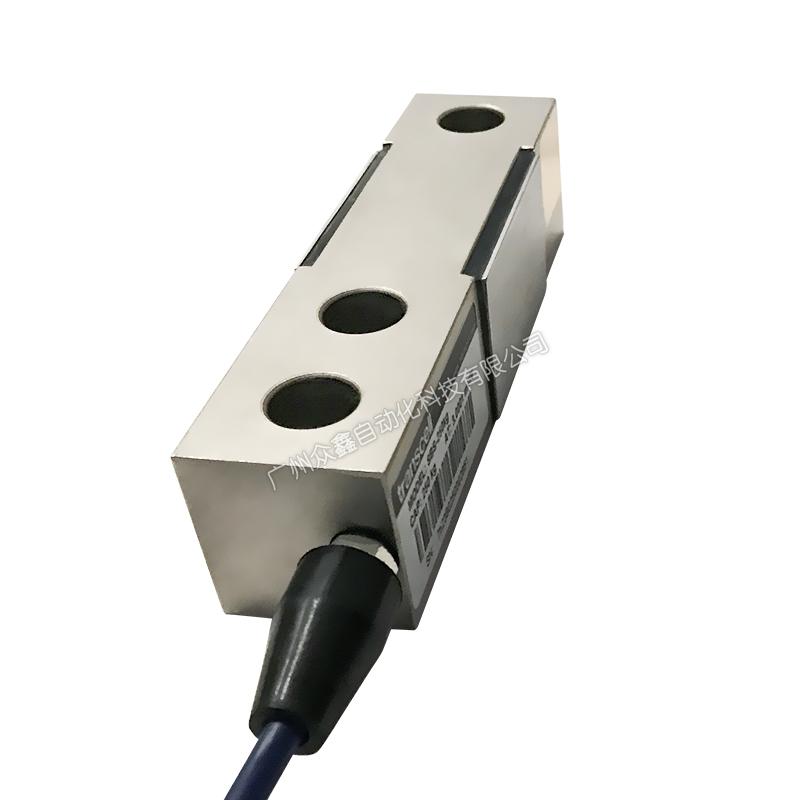

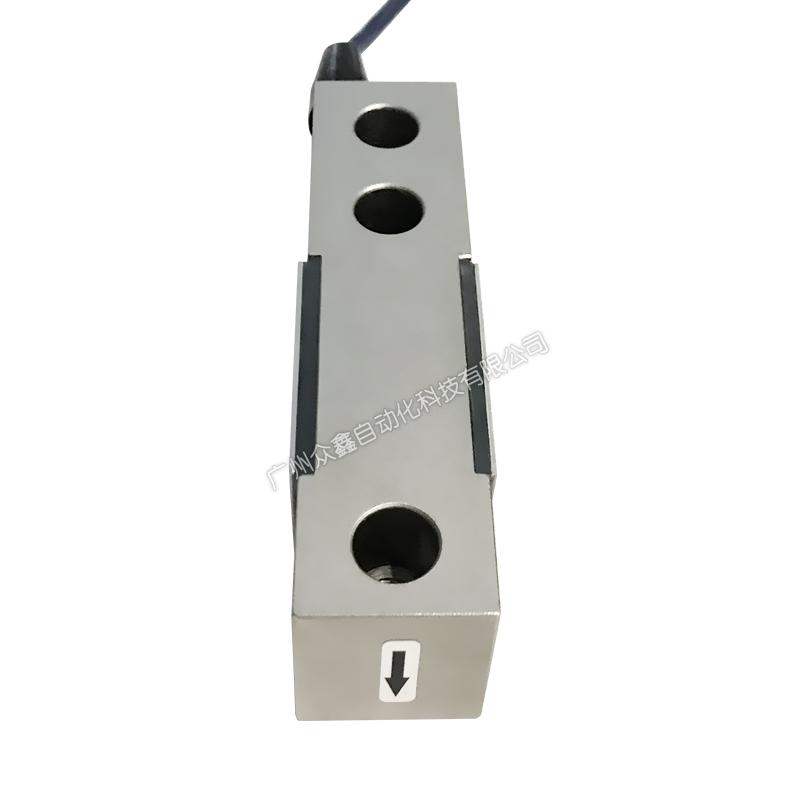

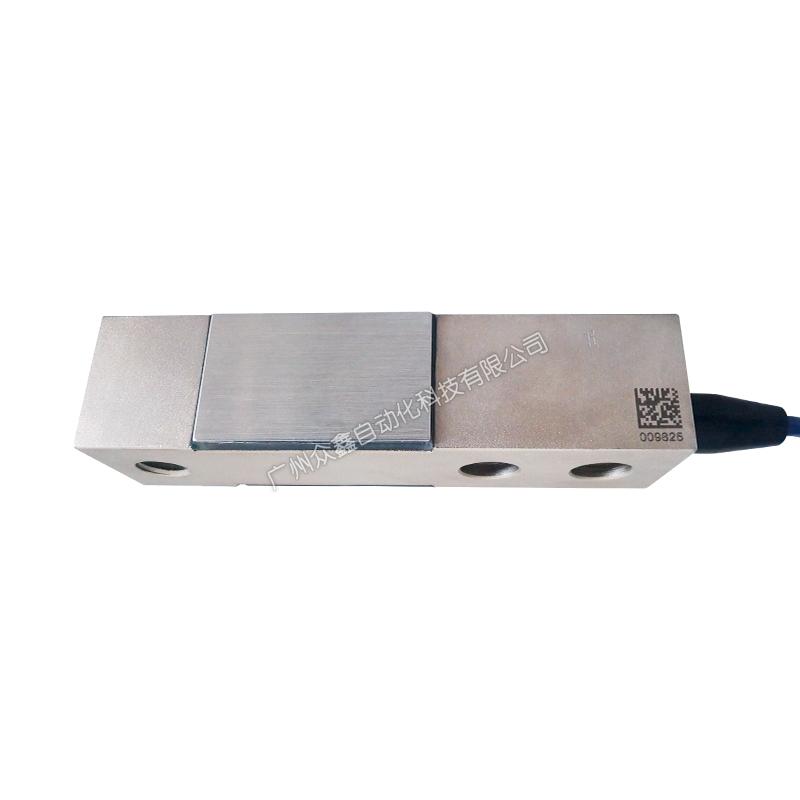

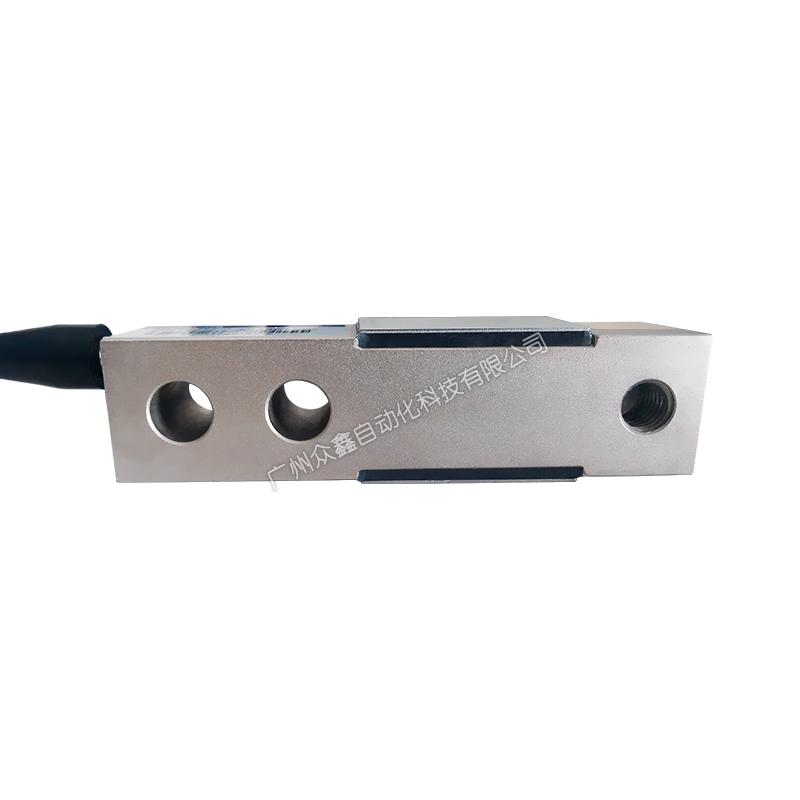

2、 Image of the American Chuanli SBS-10T Load cell
3、 SBS-10T Load Cell related models from the US
SBS-250LB Load cell
SBS-250kg Load cell
SBS-500kg Load cell
SBS-750kg Load cell
SBS-1t Load cell
SBS-1.5t Load cell
SBS-2t Load cell
SBS-2.5ts (small threaded hole) Load cell
SBS-2.5t (large threaded hole) Load cell
SBS-5t Load cell
SBS-7.5ts (small threaded hole) Load cell
SBS-7.5t (large threaded hole) Load cell
SBS-10t Load cell
4、 Product dimensions of the American Transforce SBS-10T Load cell
5、 Technical parameters of the American Transcell SBS-10T load cell
|
Rated Output |
Rated output |
3.0mV/V ±0.1% |
|
Zero Balance |
Zero balance |
±1% of rated output |
|
Creep after 30 minutes |
creep |
±0.03% of rated output |
|
Nonlinearity |
Nonlinear |
±0.03% of rated output |
|
Hysteresis |
lagging |
±0.03% of rated output |
|
Repeatability |
Repeatability |
±0.03% of rated output |
|
Temp, effect on output |
Sensitivity temperature drift |
<0.002% of applied output/℃ |
|
Temp, effect on zero |
Zero temperature drift |
<0.002% of rated output/℃ |
|
Safe Temp. Range |
Available temperature range |
-10℃ to + 70℃ |
|
Temp. Compensated |
Temperature compensation range |
-10℃ to + 40℃ |
|
Safe Overload |
Safe load |
150% |
|
Input Impedance |
Input impedance |
387 ohm ± 20 ohm |
|
Output Impedance |
Output impedance |
350 ohm ± 5 ohm |
|
Insulation Resistance |
Insulation impedance |
>5000 M ohm (50V DC) |
|
Rated Excitation |
Recommended excitation voltage |
10V DC/AC |
|
Maximum Excitation |
Maximum excitation voltage |
15V DC/AC |
|
Cable Length |
Wire length |
6m |
|
Cable Color Code |
Wire color |
Red( + E) Black(-E) Green( + S) White(-S) |
6、 Safety instructions for the American Chuanli SBS-10T Load cell
SBS Series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose
To ensure safe operation, load cells can only be used according to the instructions in the installation instructions During use, it is also necessary to comply with the relevant legal and safety requirements of the application This also applies to the use of attachments
If a load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading) In order to operate safely and without faults, Load Cells must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overloading
The load of the SBS-10T Load cell is 10T. When using it, attention should be paid to the possibility of instantaneous overload, which may also cause damage to the sensor. A larger range can be chosen
