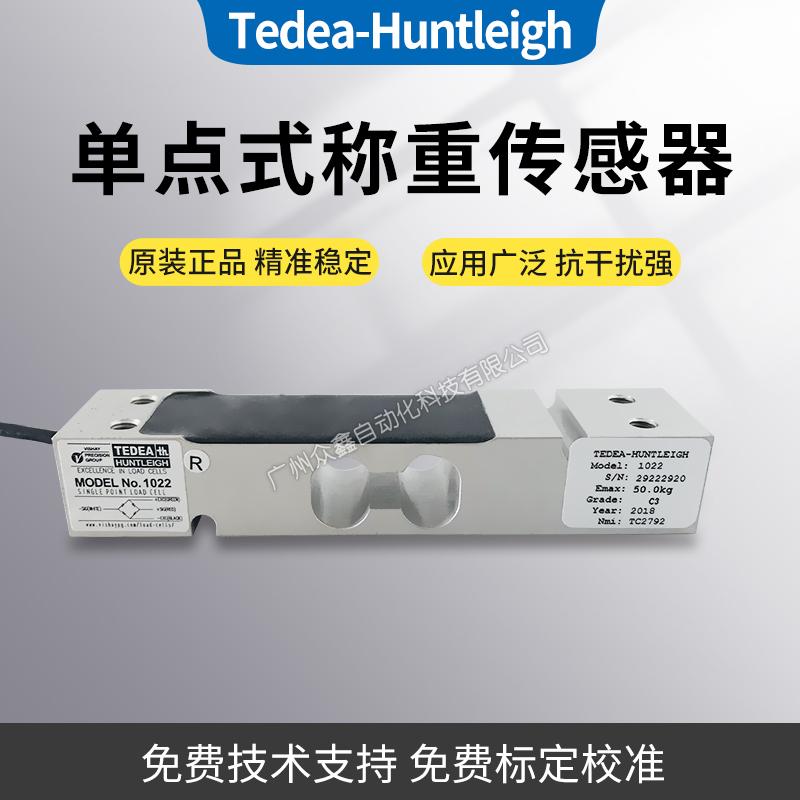

1022-200kg Load cell A product belonging to the Tedea brand in the United States, it is a single point load cell made of aluminum material with a protection level of IP66. The range can be selected from 3kg to 200kg, suitable for platform scales, counting scales, grocery scales, etc
1、 Tedea 1022-200kg Load Cell Product Introduction
Product Description:
The 1022 model is a lightweight single point load cell designed for direct installation on low-cost weighing platforms Its small physical size, combined with high precision and aluminum structure, makes this low-cost Load Cell very suitable for retail, desktop, and counting scales The use of 1022 Load cell simplifies the structure of the scale, thereby saving a lot of parts and labor
The 1022 model has multiple capacities to choose from, ranging from 3 to 150KG approved for OIML R60 (4000d), from 20 to 150KG approved for OIML R60 (6000d), and from 3 to 100KG approved for NTEP (5000d, single unit) The environmental protection standard is IP66. For hazardous environments, ATEX approved versions can be provided
Product series:1022
Product Features
-Capacity: 3-200KG
-Only 22 millimeters high
-Aluminum structure
-Single point 350 x 350 mm platform
-IP66 protection level
-OIML R60 and NTEP approval
-Optional: ATEX, FM, and IECEx certifications are available; Symmetric configuration available
Product Application
-Platform scale
-Counting balance
-Grocery scale

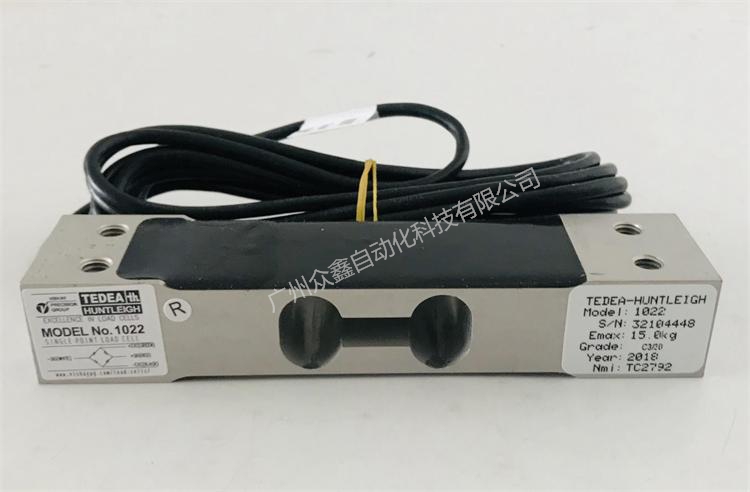

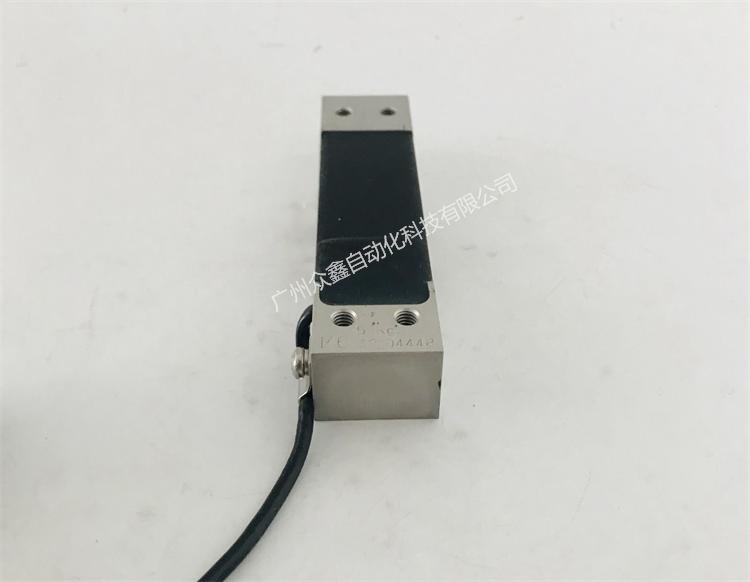

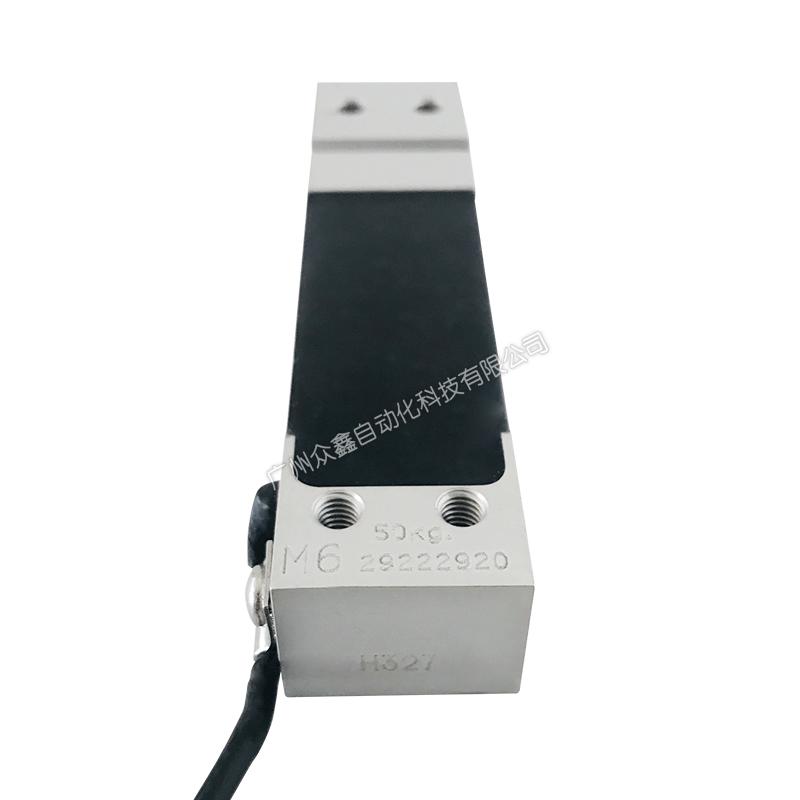

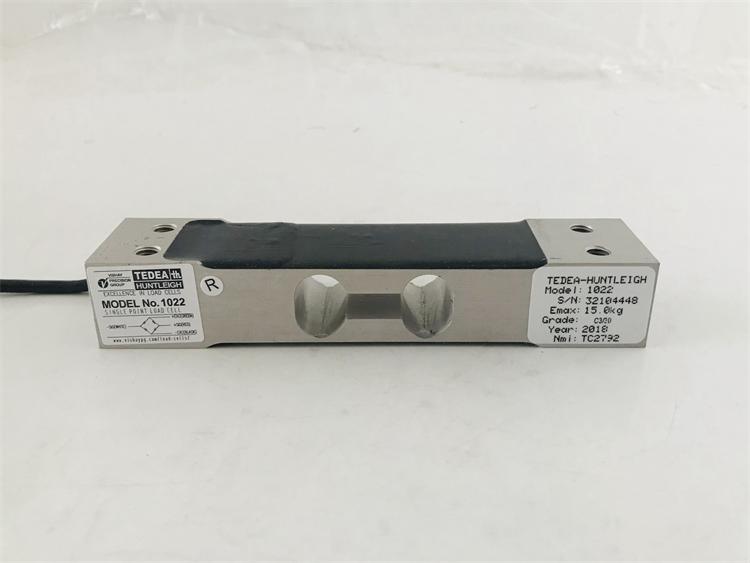

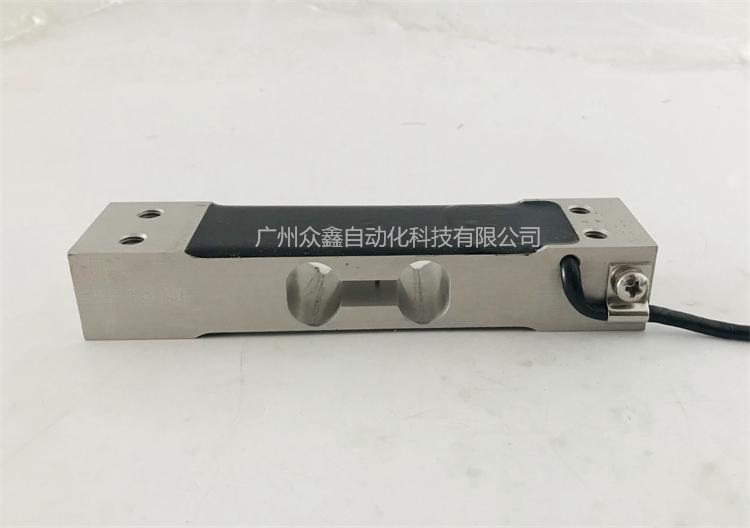

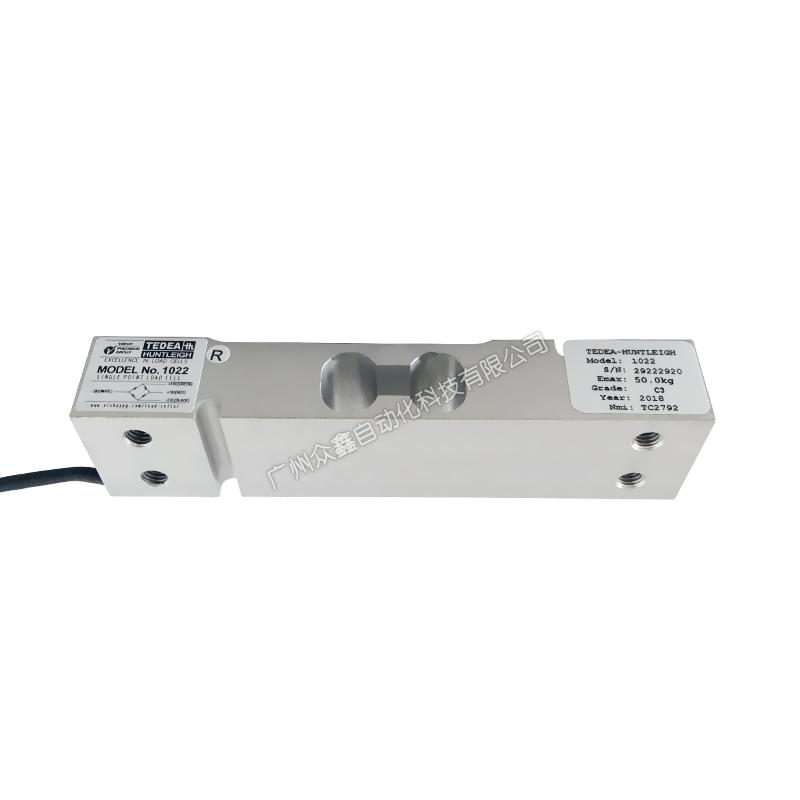

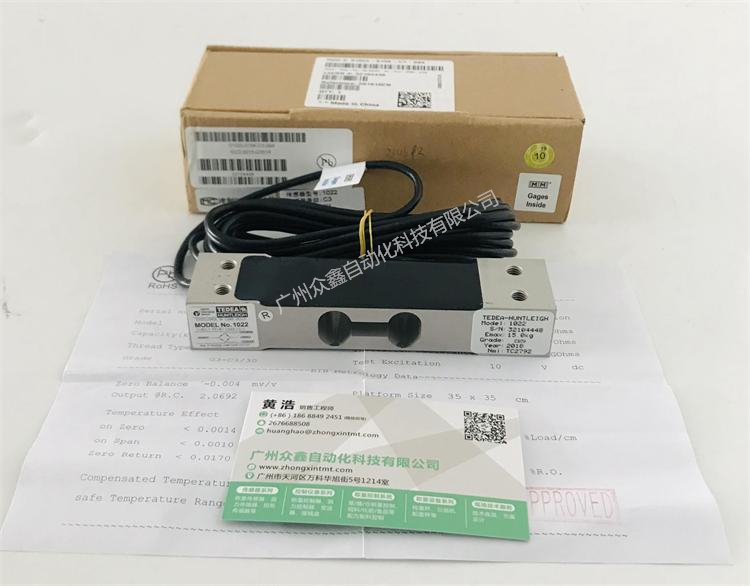

2、 Real shot of 1022-200kg load cell from Tedea, USA
3、 Tedea 1022-200kg Load Cell related models in the United States
1022-3kg Load cell
1022-5kg Load cell
1022-7kg Load cell
1022-10kg Load cell
1022-15kg Load cell
1022-20kg Load cell
1022-30kg Load cell
1022-35kg Load cell
1022-50kg Load cell
1022-100kg Load cell
1022-150kg Load cell
1022-200kg Load cell

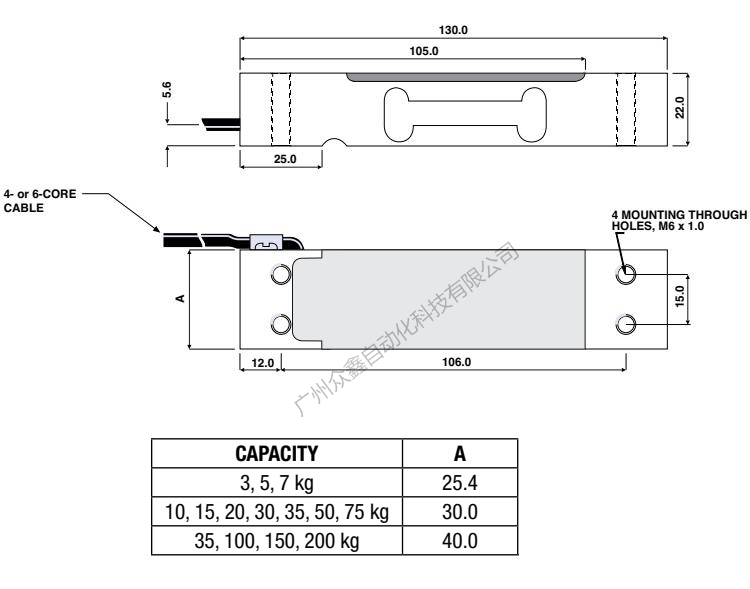

4、 Tedea 1022-200kg Load Cell Product Dimensions

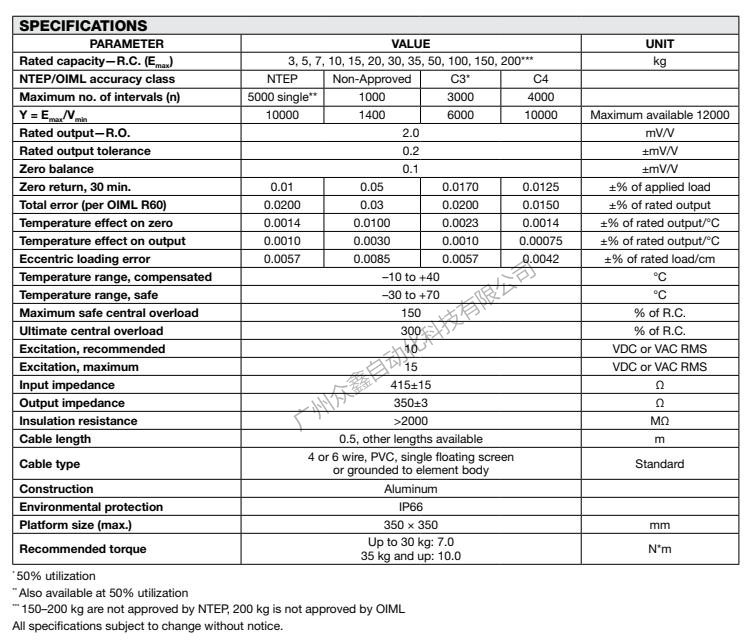

5、 Technical parameters of Tedea 1022-200kg Load cell products in the United States
6、 US Tedea 1022-200kg Load Cell Safety Instructions
The 1022 Series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose
To ensure safe operation, load cells can only be used according to the instructions in the installation instructions During use, it is also necessary to comply with the relevant legal and safety requirements of the application This also applies to the use of attachments
If a load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading) In order to operate safely and without faults, Load Cells must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overloading
The maximum load of the 1022-200kg Load Cell is 200kg. When using it, attention should be paid to the possibility of instantaneous overload, which may also cause damage to the sensor
