LCD-45.4T (original LCD-100Klbs) Load cell A product belonging to the Celtron brand in the United States, it is a spoke type load cell made of chemically plated nickel aluminum alloy. It can be selected as a stainless steel version and has a protection level of IP67. It is suitable for weighing trucks/track scales, silos/hoppers/storage tanks, and general material testers
1、 LCD-45.4T Load Cell Product Introduction
Product Description:
-For safety reasons, thin compression discs are designed as the Final Solution for some difficult applications with critical heights Even when lateral forces are unavoidable during normal operation, the shear web design can provide excellent performance A typical example of lateral force resistance is its application in car scales
-The LCD is made of alloy steel and completely encapsulated in a special compound that meets IP67, providing excellent moisture resistance and protection
Product series:LCD
Product Features
-Capacity: 2.2T (5klbs), 4.5T (10klbs), 11.3T (25klbs), 22.7T (50klbs), 45.4T (100klbs)
-Electroless nickel plated alloy steel
-Small and compact
-5k-100klbs optional surge protection
-Optional: Stainless steel available for selection; FM approval available; LCD-TT/M/MH with different loading holes
Product Application
-Truck/track scale
-Silo/hopper/storage tank weighing
-Universal material tester
-Tension/tension measurement

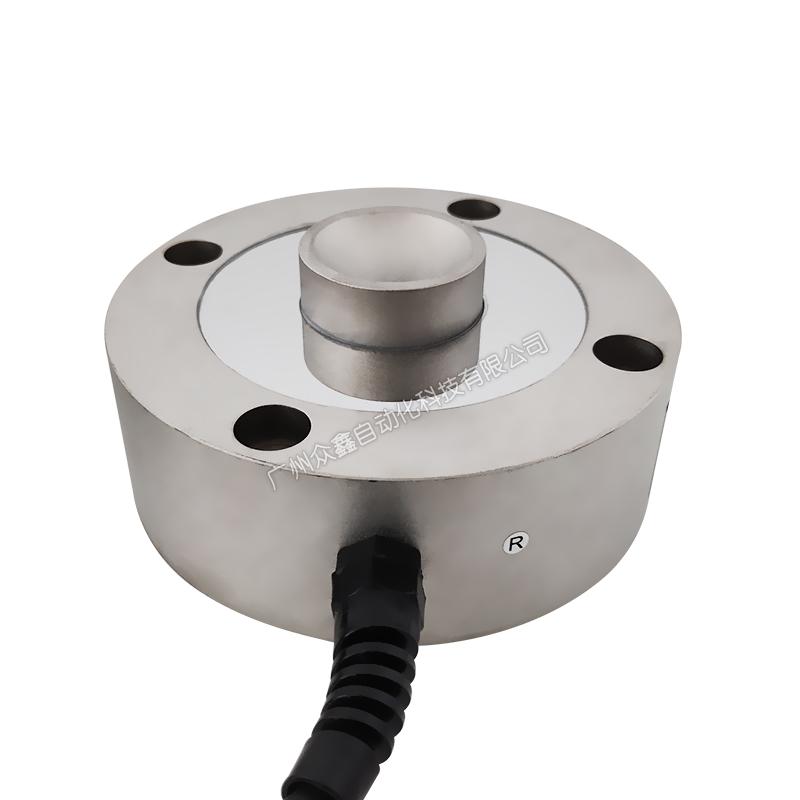

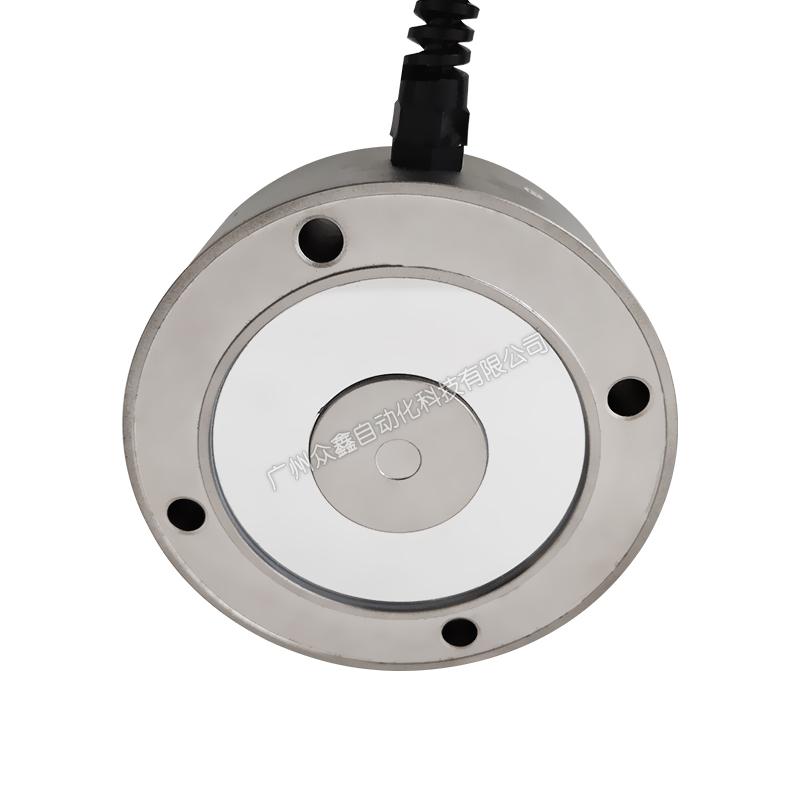

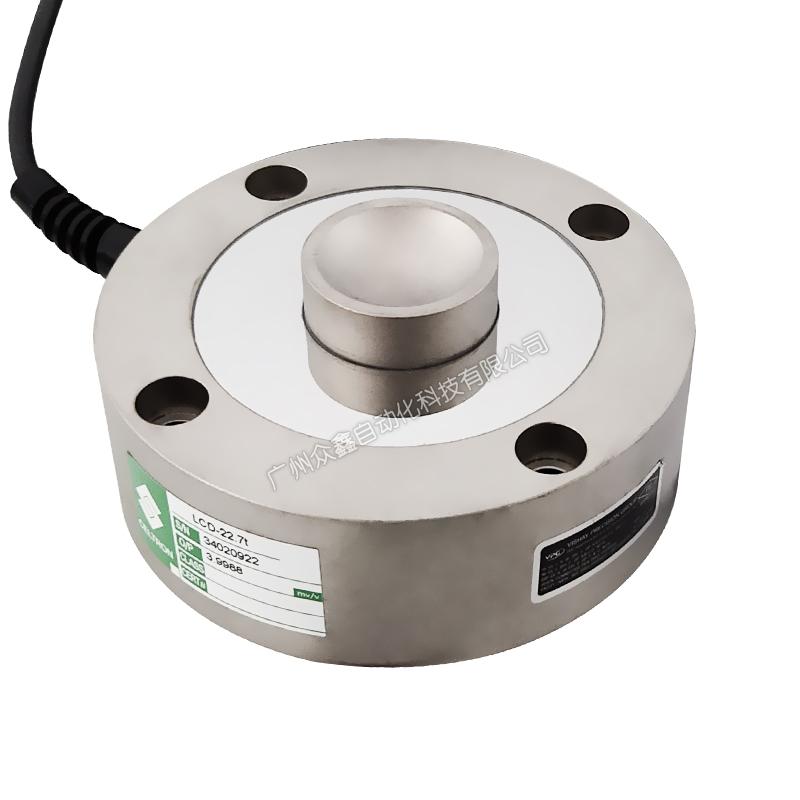

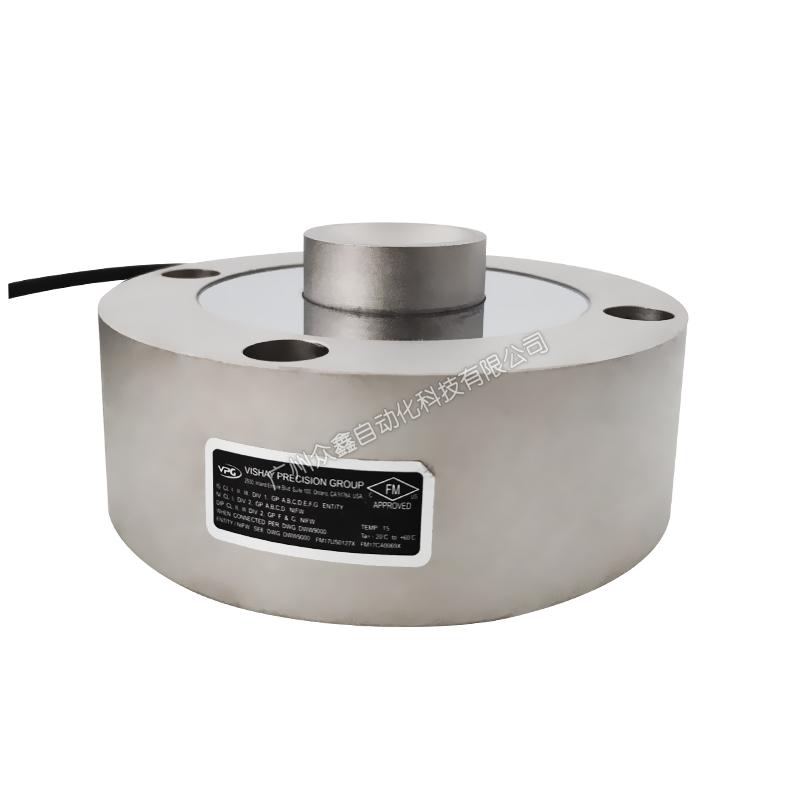

2、 Real shot of LCD-45.4T Load cell from Celtron, USA
3、 American Celtron LCD-45.4T Load Cell related models
LCD-2.2t (formerly LCD-5K)
LCD-4.5t (original LCD-10K)
LCD-11.3t (original LCD-25K)
LCD-22.7t (original LCD-50K)
LCD-45.4t (original LCD-100K)
4、 Product dimensions of the American Celtron LCD-45.4T Load cell
5、 Technical parameters of LCD-45.4T Load cell from Celtron, USA
6、 Safety instructions for the LCD-45.4T Load cell from the United States
The LCD Series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose
To ensure safe operation, load cells can only be used according to the instructions in the installation instructions During use, it is also necessary to comply with the relevant legal and safety requirements of the application This also applies to the use of attachments
If a load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading) In order to operate safely and without faults, Load Cells must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overloading
The maximum load of LCD-45.4T Load Cell is 45.4T. When using it, attention should be paid to the possibility of instantaneous overload, which may also cause damage to the sensor
