LOC-500kg Load cell A product belonging to the Celtron brand in the United States, it is a single point load cell made of anodized aluminum alloy with a protection level of IP66. It is suitable for platform scales, packaging machines, dosage/filling, belt scales/conveyor scales, and dynamic inspection scales
1、 US Celtron LOC-500kg Load Cell Product Introduction
Product Description:
-LOC is a single point low profile load cell designed for platform scales and suspension scales For a simple balance, it is an economical and efficient load cell
-LOC is made of anodized aluminum oxide, with an environmental sealing level of up to IP66, which is moisture-proof and moisture-proof
Product series:LOC
Product features:
-Capacity: 5 to 1000KG
-Cost-effective Load Cell for Simple Structure Scales
-Anodized aluminum alloy
-NTEP Level III 5000S certification, from 5kg to 500kg
-OIML C3 approval from 5kg to 500kg
-OIML C6 approval from 500kg to 1000kg
-Platform size: 16 inches x 24 inches/40cm x 60cm
-Optional feature: FM approved
Product application:
-Platform scale (single load cell)
-Packaging machine
-Dose/Fill
-Belt scale/conveyor scale
-Dynamic inspection scale

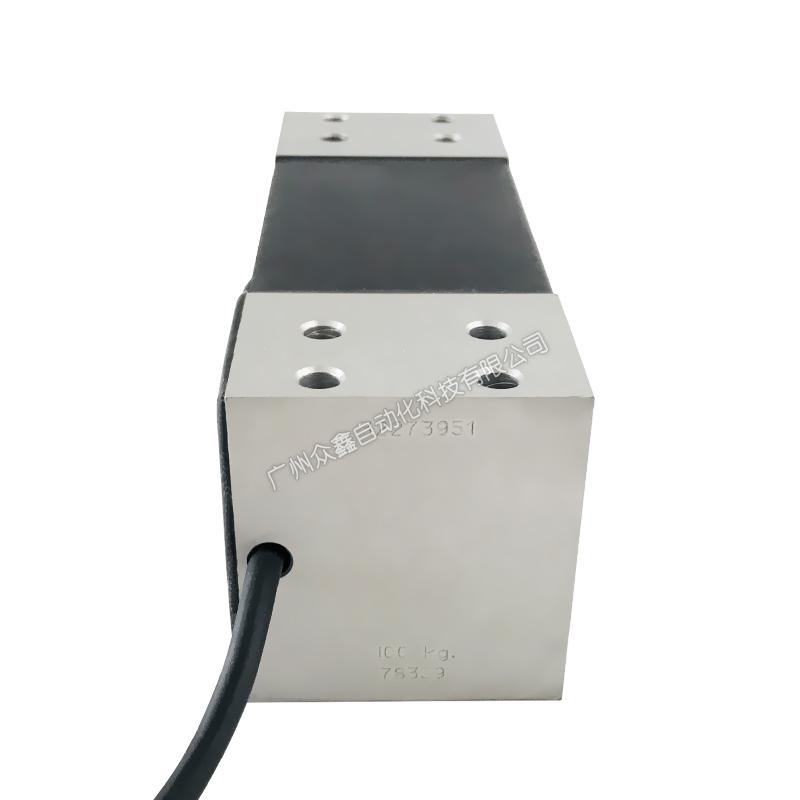

2、 Real shot of the US Celtron LOC-500kg Load cell
3、 US Celtron LOC-500kg Load Cell related models
LOC-5kg (SE, 150mm long)
LOC-7kg (SE, 150mm long)
LOC-10kg (SE, 150mm long)
LOC-15kg (SE, 150mm long)
LOC-20kg (SE, 150mm long)
LOC-30kg (SE, 150mm long)
LOC-50kg (SE, 150mm long)
LOC-60kg (SE, 150mm long)
LOC-75kg (SE, 150mm long)
LOC-100kg (SE, 150mm long)
LOC-150kg (SE, 150mm long)
LOC-100kg (ME, 174mm long)
LOC-150kg (ME, 174mm long)
LOC-250kg (ME, 174mm long)
LOC-300kg (ME, 174mm long)
LOC-500kg (ME, 174mm long)
LOC-635kg (ME, 174mm long)
LOC-800kg (ME, 174mm long)
LOC-100kg (LE, 191mm long)
LOC-250kg (LE, 191mm long)
4、 US Celtron LOC-500kg Load Cell Product Dimensions
ME Installation dimensions :
LE Installation dimensions :
SE Installation dimensions :
5、 Technical parameters of American Celtron LOC-500kg Load cell
6、 Safety instructions for the US Celtron LOC-500kg Load cell
LOC Series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose
To ensure safe operation, load cells can only be used according to the instructions in the installation instructions During use, it is also necessary to comply with the relevant legal and safety requirements of the application This also applies to the use of attachments
If a load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading) In order to operate safely and without faults, Load Cells must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overloading
The load of the LOC-500kg Load cell is 500kg. When using it, attention should be paid to the possibility of instantaneous overload, which may also cause damage to the sensor
