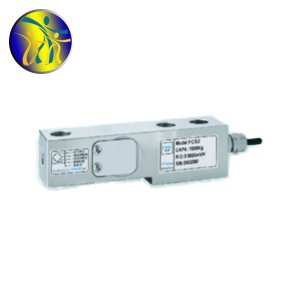

FCS2 sensor: FCS2-150kgf-10tf_ Korean Fine weighing sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　
【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply for Korean Fine [FCS2 sensor] FCS2-150kgf-10tf_Korean Fine weighing sensorEnsure fast delivery time, 100% original incoming products, 10 years of industry experience, focusing on high-end and high-quality sensor services, and providing complete automation solutions.

Korea Fine FC2Weighing sensorAll ranges：FCS2-150 kgf, FCS2-300 kgf, FCS2-500 kgf, FCS2-1 tf, FCS2-2 tf, FCS2-3 tf, FCS2-5 tf, FCS2-10 tf. The Korean Fine FCS2-10T weighing sensor is one of our company's key advantageous products, with an absolute competitive price. It is available in stock, original, authentic, and reliable! Ensure satisfactory price and quality!We solemnly promise: "Within three months, if there are any quality issues, we will unconditionally return or exchange the goods, refund the full payment, and charge no fees.". 1 year warranty, ready for repair at any time!
　
Product specification parameters:
Rated output: 2.0 ± 0.005mV/V
Zero balance: 0 ± 0.02mV/V
Comprehensive error: 0.03%
Repeatability: 0.01%
Incentive suggestion: 10V
Maximum incentive: 15V
30 minute creep: 0.03%
Input resistance: 400 ± 30 Ω
Output resistance: 350 Ω ± 3.5 Ω
Insulation resistance: ＞ 2000M Ω
Temperature compensation range: -10 to+40 ℃
Working temperature range: -30 to+80 ℃
The effect of temperature at zero: 0.028%/10 ℃
　


Expand reading

Installation instructions for weighing module
　Mechanical installation　
If necessary, shims can be used to adjust the force evenly on each sensor.
The top and bottom plates of the weighing module must be adjusted in a straight line to maintain the vertical direction of the force acting on the sensor.
When welding near the weighing module, be sure to pay attention to grounding, otherwise the welding current will pass through the sensor and cause damage.
The basic requirements are horizontal and have good rigidity, and there is a small difference in the required levelness between the foundations.
Be sure to tighten the support bolts of the weighing module during installation.
The weighing module must be installed in a convenient maintenance location.
　Connection
All connections should use shielded insulated cables.
Electromagnetic interference can affect the output signal of sensors, causing weighing errors.
Isolate the power cord and sensor cable.
The junction box should be protected from moisture and corrosive substances.
Cables can be fitted with sleeves to prevent mechanical damage or erosion by damp or corrosive substances.
Do not arbitrarily change the length of the sensor cable, as this will change the output impedance of the sensor.
It is recommended to choose the recommended length and size of the connecting cable between the junction box and the weighing instrument, otherwise it may cause signal loss.
　Preparation work before calibration　
Install brackets on the tank body for hanging weights. The spacing between each bracket should be equal.
Before calibration, the output signal of each sensor should be tested to determine whether the force is evenly distributed to each sensor.
If necessary, the level of the module can be adjusted with a gasket or the potentiometer of the junction box can be adjusted to maintain consistent output for each sensor.
　

The above isFCS2 sensor: FCS2-150kgf-10tf_ Korean Fine weighing sensorDetailed information, if you are interested inFCS2 sensor: FCS2-150kgf-10tf_ Korean Fine weighing sensorIf you have any questions about the price, delivery time, model, or inventory, please feel free to call us18520271262obtainFCS2 sensor: FCS2-150kgf-10tf_ Korean Fine weighing sensorLatest price details for.
