Taiwan Yuxin_ S Load Cell_ Taiwan JIHSENSE weighing sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply to Taiwan JIHSENSE_ S LOAD CELL seriesWeighing sensorTaiwan Yuxin_ S Load Cell_ Taiwan's JIHSENSE weighing sensors guarantee fast delivery times, 100% original and authentic products, and strive to become the top brand of sensor sales in China. Taiwan JIHSENSE_ S LOAD CELL series weighing sensor models: S-1kg, 2kg, 3kg, 5kg, 10 kg, 20 kg, 35 kg, 50 kg, 100 kg, 200 kg, 350 kg, 500 kg, 750 kg, 1000 kg, 1500 kg, 2000 kg, 3000 kg, 5000 kg, 7500 kg, 10T.

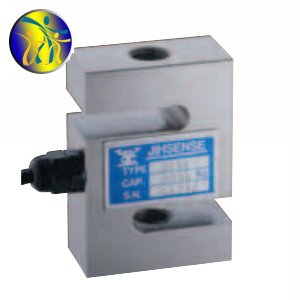

Taiwan JIHSENSE S LOAD CELL Product Introduction

Product brand:Taiwan JIHSENSE weighing sensor
Product features:Miniature Load Cells
Product type: SL type load element
This type of sensor is designed for measuring the load and weight of large structures, and is connected in parallel to the structure to detect the deformation of the structure under stress. It is easy to install and has high stability. This sensor uses high-strength alloy steel and strain gauge elements, which are particularly suitable for structural load monitoring and punch pressure measurement. It has the following characteristics:
Features: temperature compensation, sealing protection, easy installation, and fast response speed

Taiwan JIHSENSE S LOAD CELL specification parameters



Installation dimensions of Taiwan JIHSENSE S LOAD CELL



Taiwan JIHSENSE S LOAD CELL series complete model

S-1kg，S-10 kg，S-100 kg，S-1000 kg，S-5000 kg
S-2kg，S-20 kg，S-200 kg，S-1500 kg，S-7500 kg
S-3kg，S-35 kg，S-350 kg, S-2000 kg, S-750 kg
S-5kg, S-50 kg，S-500 kg，S-3000 kg，S-10T

Expand reading

Performance indicators of weighing sensors
The performance of a weighing system can be measured by indicators such as linearity, hysteresis, repeatability, and creep.
Linear:Indicates the degree of consistency between the actual output of the system and the theoretical straight line. As shown in the figure, when a linear error occurs, the output of the system at no-load and full load is correct, but the input-output point between these two points is inconsistent with the ideal state. Linear error is the maximum difference between the theoretical straight line and the actual output curve.
Lag:Indicates the degree to which the input-output curve of the system does not coincide during loading and unloading processes.
Repeatability:Indicates the degree of inconsistency in the system's output for consecutive weighing of the same weight during loading or unloading. It is usually expressed as the percentage of the difference between the minimum output and the maximum output of the system under the same loading conditions to the total output.
Creep:The characteristic of the system withstanding a constant weight at a certain temperature, and the output changing over time due to mechanical deformation of the elastic material of the sensor.
　
Overview of Column Load Cells
The column type weighing sensor is suitable for sealing and adapting to harsh environments. Used for engineering force detection, overload safety detection, and impact force measurement and control. Suitable for large platform scales, car scales, track scales, etc. Six wire wiring method can be selected. The column type weighing sensor has a large range and is widely used in the heavy industry field.
　
The above is Taiwan Yuxin_ S Load Cell_ Taiwan JIHSENSE weighing sensor detailed information, if you are interested in [Taiwan Yuxin]_ S Load Cell_ If you have any questions about the price, delivery time, model, or inventory of JIHSENSE weighing sensors in Taiwan, please feel free to call Chen Gong at 18520271262 to obtain [Taiwan Yuxin]_ S Load Cell_ Latest price details for JIHSENSE weighing sensors in Taiwan.
