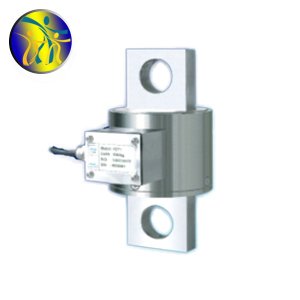

FCT1 sensor: FCT1-10tf~70tf_ Korean Fine weighing sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　
Guangzhou Zhongxin Automation Technology Co., Ltd. specializes in supplying Fine FCT1-10T weighing sensors to South Korea, ensuring fast delivery and 100% original imported products. With 10 years of industry experience, we focus on high-end and high-quality sensor services and provide complete automation solutions.

Korean Fine FCT1-10TWeighing sensorAll ranges：FCT1-10T, FCT1-20T, FCT1-30T, FCT1-50T, FCT1-70T. The Korean Fine FCT1-10T weighing sensor isOne of our company's key competitive products, with absolute competitive prices, in stock, original, authentic, and reliable! Ensure satisfactory price and quality!We solemnly promise: "Within three months, if there are any quality issues, we will unconditionally return or exchange the goods, refund the full payment, and charge no fees.". 1 year warranty, ready for repair at any time!
　
Product specification parameters:

FCT1 sensor: FCT1-10tf~70tf_Korean Fine weighing sensorParameters:
Rated output: 1.0 ± 0.005mV/V
Zero balance: 0 ± 0.02mV/V
Comprehensive error: 0.05%
Repeatability: 0.05%
30 minute creep: 0.05%
The effect of temperature at zero: 0.03%/10 ℃
The effect of temperature on output value: 0.03%/10 ℃
Incentive suggestion: 10V
Maximum incentive: 15V
Input resistance: 400 ± 30 Ω
Output resistance: 350 Ω ± 3.5 Ω
Insulation resistance: ＞ 2000M Ω
Temperature compensation range: -10 to+40 ℃
Working temperature range: -20 to+80 ℃
　


Expand reading

Installation instructions for weighing module
　Mechanical installation　
If necessary, shims can be used to adjust the force evenly on each sensor.
The top and bottom plates of the weighing module must be adjusted in a straight line to maintain the vertical direction of the force acting on the sensor.
When welding near the weighing module, be sure to pay attention to grounding, otherwise the welding current will pass through the sensor and cause damage.
The basic requirements are horizontal and have good rigidity, and there is a small difference in the required levelness between the foundations.
Be sure to tighten the support bolts of the weighing module during installation.
The weighing module must be installed in a convenient maintenance location.
　Connection
All connections should use shielded insulated cables.
Electromagnetic interference can affect the output signal of sensors, causing weighing errors.
Isolate the power cord and sensor cable.
The junction box should be protected from moisture and corrosive substances.
Cables can be fitted with sleeves to prevent mechanical damage or erosion by damp or corrosive substances.
Do not arbitrarily change the length of the sensor cable, as this will change the output impedance of the sensor.
It is recommended to choose the recommended length and size of the connecting cable between the junction box and the weighing instrument, otherwise it may cause signal loss.
　Preparation work before calibration　
Install brackets on the tank body for hanging weights. The spacing between each bracket should be equal.
Before calibration, the output signal of each sensor should be tested to determine whether the force is evenly distributed to each sensor.
If necessary, the level of the module can be adjusted with a gasket or the potentiometer of the junction box can be adjusted to maintain consistent output for each sensor.

The above isFCT1 sensor: FCT1-10tf~70tf_ Korean Fine weighing sensorDetailed information, if you are interested inFCT1 sensor: FCT1-10tf~70tf_ Korean Fine weighing sensorIf you have any questions about the price, delivery time, model, or inventory, please feel free to call us18520271262 Chen GongobtainFCT1 sensor: FCT1-10tf~70tf_ Korean Fine weighing sensorLatest price details for.
