9102 sensor 9102-200kg~9102-2500kg Vishay Revere weighing sensor from the United States

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　　　 　 　　 　　
Guangzhou Zhongxin Automation Technology Co., LtdWe specialize in supplying the Vishay Revere 9102 series weighing sensors from the United States. Our 9102 sensors range from 9102-200kg to 9102-2500kg, ensuring fast delivery and 100% genuine products. We strive to become the top brand in sensor sales in China. Vishay Revere 9102 SeriesLoad CellRelated models: 9102-5kg, 9102-200kg, 9102-500kg, 9102-1000kg, 9102-2500kg.

Introduction to Vishay Revere 9102 Series Products in the United States

Product brand:Vishay Revere Load Cell, USA, Revere Load Cell

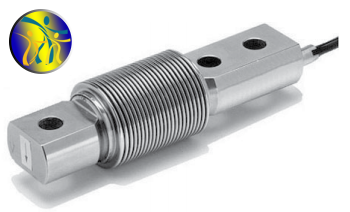

Product characteristics:corrugated pipeLoad Cell
Material: stainless steel design
Protection levels IP66 and IP68, sealed
Optional: ATEX and FM certified versions
Range: 200kg, 500kg, 1000kg, 2500kg
Application scope: Platform scale, hopper scale, belt scale, packaging scale.
Explosion proof environment: can be used in potentially explosive environments certified as OIML r-604000d and NTEP courses
　

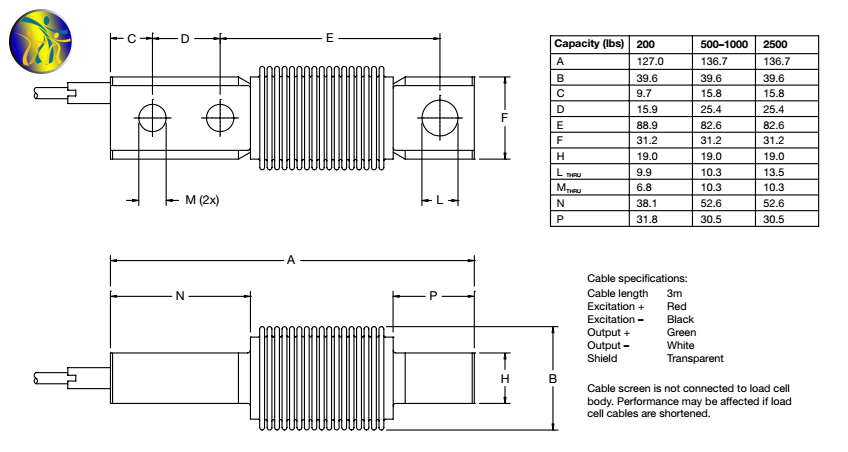

Installation dimensions of the Vishay Revere 9102 series in the United States


　

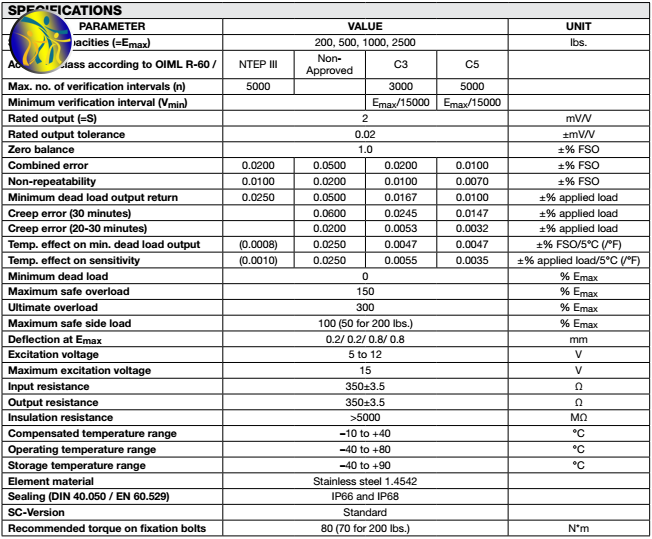

Technical indicators of the Vishay Revere 9102 series in the United States


　
The complete model of the Vishay Revere 9102 series in the United States

Vishay Revere 9102-200kg load cell, American Revere load cell, capacity 200kg
Vishay Revere 9102-500kg load cell, American Revere load cell, capacity 500kg
Vishay Revere 9102-1000kg load cell, American Revere load cell, capacity 1000kg
Vishay Revere 9102-2500kg load cell, American Revere load cell, capacity 2500kg

Extended Reading

Performance indicators of weighing sensors
The performance of a weighing system can be measured by indicators such as linearity, hysteresis, repeatability, and creep.
Linear:Indicates the consistency between the actual output of the system and the theoretical straight line. As shown in the figure, when linear errors occur, the output of the system is correct at no load and full load, but the input-output points between these two points are inconsistent with the ideal state. Linear error is the maximum difference between the theoretical straight line and the actual output curve.
Lag:Indicates the degree to which the input-output curve of the system does not coincide during loading and unloading.
Repeatability:Indicates the degree of inconsistency in the system's output for several consecutive weighing of the same weight during the loading or unloading process. Usually expressed as the percentage of the total output that is the difference between the minimum output and the maximum output of the system under the same loading condition.
Creep:The characteristic of a system that bears a constant weight at a certain temperature, and the output changes over time due to the mechanical deformation of the elastic material of the sensor.
　
Bellows type weighing sensorsummary
The corrugated tube type weighing sensor is the most common type of sensor, mainly used to measure the tension and pressure between solids. It is also commonly known as a tension and pressure sensor, because its appearance is like an S shape, it is commonly referred to as a corrugated tube type weighing sensor. This sensor is made of alloy steel material, sealed with adhesive protection, easy to install and use, and is suitable for electronic force measurement and weighing systems such as hanging scales, batching scales, and machine modified scales
　
The above is the detailed information of the 9102 Sensor 9102-200kg~9102-2500kg Vishay Revere weighing sensor in the United States. If you have any questions about the price, delivery time, model, and inventory of the 9102 Sensor 9102-200kg~9102-2500kg Vishay Revere weighing sensor in the United States, please feel free to call18520271262 Chen GongObtain the latest price details for the 9102 Sensor 9102-200kg~9102-2500kg Vishay Revere weighing sensor from the United States.
