HPS sensor: HPS-6kg~HPS-60kg Vishay Revere weighing sensor from the United States

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　 　 　
Guangzhou Zhongxin Automation Technology Co., LtdProfessional supply of Vishay Revere HPS series in the United StatesLoad Cell[HPS Sensor] HPS-6kg~HPS-60kg Vishay Revere weighing sensors from the United States guarantee fast delivery time, 100% original and genuine products, striving to become the first brand of sensor sales in China. Vishay Revere HPS series load cell related models: HPS-6kg, HPS-12kg, HPS-30kg, HPS-60kg.

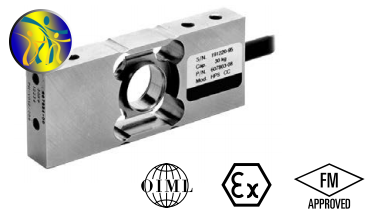

Introduction to Vishay Revere HPS Series Products in the United States

Product brand:Vishay Revere Load Cell, USA, Revere Load Cell
Product characteristics:Bellows type weighing sensor
Fully welded, stainless steel material
Certified OIML R-60 3000d
Comprehensive installation hole equipment
Sealing, protection level IP66 and IP68
Scale table size is 350 * 350mm
Range: 6kg, 12kg, 30kg, 60kg
Application scope: pricing scale, packaging scale, electronic scale, platform scale

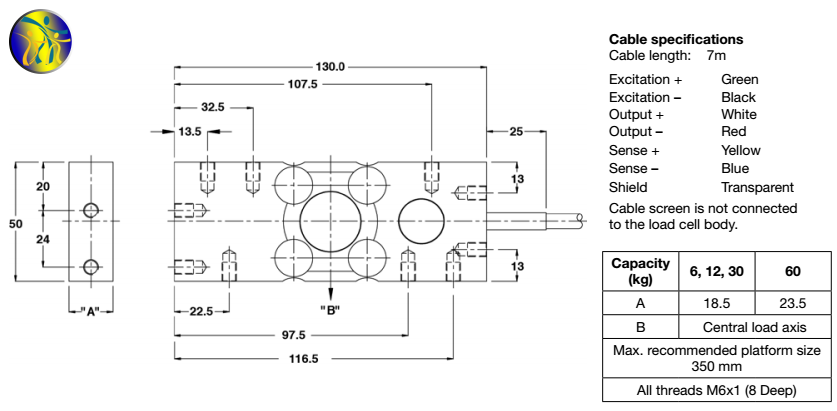

Installation dimensions of the Vishay Revere HPS series in the United States

　

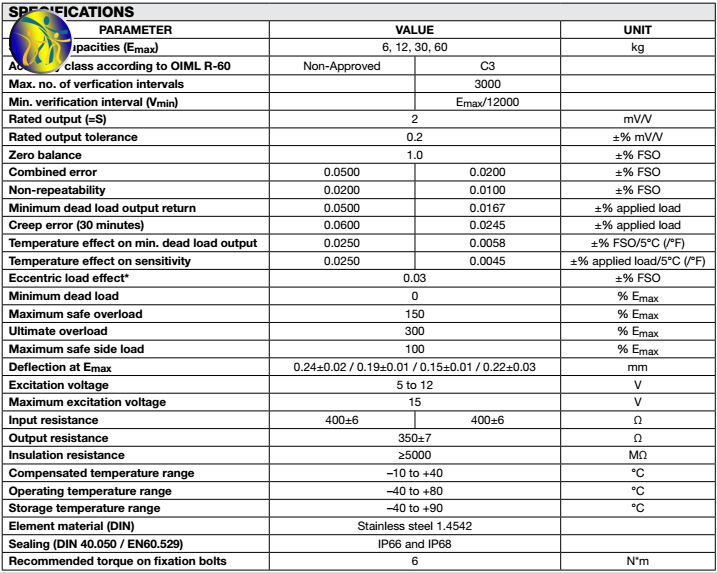

Vishay Revere HPS series technical indicators in the United States

　

The complete model of the Vishay Revere HPS series in the United States

Vishay Revere HPS-6kg load cell, American Revere load cell, capacity 6kg
Vishay Revere HPS-12kg load cell, American Revere load cell, capacity 12kg
Vishay Revere HPS-30kg load cell, American Revere load cell, capacity 30kg
Vishay Revere HPS-60kg load cell, American Revere load cell, capacity 60kg

Extended Reading

Performance indicators of weighing sensors
The performance of a weighing system can be measured by indicators such as linearity, hysteresis, repeatability, and creep.
Linear:Indicates the consistency between the actual output of the system and the theoretical straight line. As shown in the figure, when linear errors occur, the output of the system is correct at no load and full load, but the input-output points between these two points are inconsistent with the ideal state. Linear error is the maximum difference between the theoretical straight line and the actual output curve.
Lag:Indicates the degree to which the input-output curve of the system does not coincide during loading and unloading.
Repeatability:Indicates the degree of inconsistency in the system's output for several consecutive weighing of the same weight during the loading or unloading process. Usually expressed as the percentage of the total output that is the difference between the minimum output and the maximum output of the system under the same loading condition.
Creep:The characteristic of a system that bears a constant weight at a certain temperature, and the output changes over time due to the mechanical deformation of the elastic material of the sensor.
　
Overview of Single Point Load Cells
In the discussion at the first International Industrial Weighing and Force-measuring Exhibition in 1979, a new term emerged in the terminology of sensors: "single point" force sensing. The latest generation of retail scales did not include any auxiliary flexors supporting the upper weighing software platform, which was rigidly fixed to the center sensor. The design of this type of single point force sensor is based on the principle of parallelogram, but an additional central cross beam should be provided for the strain gauge to complete the task of measuring the beam and deflection components in the top and bottom components of the parallelogram. Its advantage is that the strain gauge leaves the position where there is a twisting effect caused by eccentric loading, while increasing the rigidity of the structure. This type of force sensor is subjected to eccentric loading tests at the manufacturing plant. Apply 1/3 of the sensor's ultimate load in different directions within a radius of 200 millimeters. Each sensor must operate within ± 1/3000 of the center reading value, a typical design. Another eye-catching new news in the field of force sensors is the promotion and application of the principle of gyroscopes. The gyroscopic force measurement system utilizes the proprietary characteristics of the gyroscope, making it a precise, linear, and reproducible force sensor. After studying the anti hysteresis, anti drift, and anti temperature effects of this force sensor, the gyroscopic force measurement system can transmit direct digital signals to the display unit with high anti-interference performance. These characteristics make it completely independent of harsh environmental conditions. The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal support. There is an external universal support suspended by a movable joint, which also supports one end of the rotatable lever under the yoke.
　
The above is the detailed information of the [HPS Sensor] HPS-6kg~HPS-60kg Vishay Revere weighing sensor in the United States. If you have any questions about the price, delivery time, model, and inventory of the [HPS Sensor] HPS-6kg~HPS-60kg Vishay Revere weighing sensor in the United States, please feel free to call18520271262 Chen GongObtain the latest price details for the HPS sensor from HPS-6kg to HPS-60kg Vishay Revere weighing sensors in the United States.
