SHBxR sensor: SHBxR-5kg~SHBxR-500kg Vishay Revere weighing sensor from the United States

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　 　 　　
Guangzhou Zhongxin Automation Technology Co., Ltd. specializes in supplying Vishay Revere SHBxR series weighing sensors from the United States. [SHBxR sensors] SHBxR-5kg~SHBxR-500kg Vishay Revere weighing sensors from the United States ensure fast delivery time, 100% original and authentic products, and strive to become the first brand of sensor sales in China. Vishay Revere SHBxR SeriesLoad CellRelated models: SHBxR-20t, SHBxR-25t, SHBxR-30t, SHBxR-35t, SHBxR-40t, SHBxR-50t.

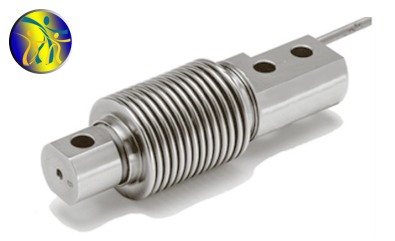

Introduction to Vishay Revere SHBxR Series Products in the United States

Product brand:Vishay Revere Load Cell, USA, Revere Load Cell
Product characteristics:corrugated pipeLoad Cell
Fully welded, stainless steel structure
Sealed, with protection levels of IP66 and IP68
Certified as OIML r-604000d and NTEP courses,
Current calibration output (SC version) ensures ease of use
And precise parallel connection of multiple load cells
ATEX and FM certified versions are available for use
A potentially explosive atmosphere
Optional range: 5kg, 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 350500kg
Application scope: Measurement and control of electronic scales, belt scales, hopper scales, and other force values

Installation dimensions of the Vishay Revere SHBxR series in the United States

　

Vishay Revere SHBxR series technical indicators in the United States

　

The complete model of the Vishay Revere SHBxR series in the United States

Vishay Revere SHBxR-5kg load cell, American Revere load cell, capacity 5kg
Vishay Revere SHBxR-10kg load cell, American Revere load cell, capacity 10kg
Vishay Revere SHBxR-20kg load cell, American Revere load cell, capacity 20kg
Vishay Revere SHBxR-30kg load cell, American Revere load cell, capacity 30kg
Vishay Revere SHBxR-50kg load cell, American Revere load cell, capacity 50kg
Vishay Revere SHBxR-100kg load cell, American Revere load cell, capacity 100kg
Vishay Revere SHBxR-200kg load cell, American Revere load cell, capacity 200kg
Vishay Revere SHBxR-350kg load cell, American Revere load cell, capacity 350kg
Vishay Revere SHBxR-500kg load cell, American Revere load cell, capacity 500kg

Extended Reading

Performance indicators of weighing sensors
The performance of a weighing system can be measured by indicators such as linearity, hysteresis, repeatability, and creep.
Linear:Indicates the consistency between the actual output of the system and the theoretical straight line. As shown in the figure, when linear errors occur, the output of the system is correct at no load and full load, but the input-output points between these two points are inconsistent with the ideal state. Linear error is the maximum difference between the theoretical straight line and the actual output curve.
Lag:Indicates the degree to which the input-output curve of the system does not coincide during loading and unloading.
Repeatability:Indicates the degree of inconsistency in the system's output for several consecutive weighing of the same weight during the loading or unloading process. Usually expressed as the percentage of the total output that is the difference between the minimum output and the maximum output of the system under the same loading condition.
Creep:The characteristic of a system that bears a constant weight at a certain temperature, and the output changes over time due to the mechanical deformation of the elastic material of the sensor.
　
The Meaning of Bellows
A corrugated pipe is a thin-walled circular pipe composed of many concentric rings on the surface. One end of it is connected to the measured pressure, and the other end is sealed. The bellows will elongate or shorten under pressure, so using the bellows can convert pressure into displacement. Its sensitivity is much higher than that of a spring tube. In non electrical measurement, the diameter of the corrugated pipe is 12-160mm, and the measured pressure range is 10 ²~ ten⁶pa。
　
The above is the detailed information of the [SHBxR Sensor] SHBxR-5kg~SHBxR-500kg Vishay Revere weighing sensor in the United States. If you have any questions about the price, delivery time, model, and inventory of the [SHBxR Sensor] SHBxR-5kg~SHBxR-500kg Vishay Revere weighing sensor in the United States, please feel free to call18520271262 Chen GongObtain the latest price details for the SHBxR sensor SHBxR-5kg~SHBxR-500kg Vishay Revere weighing sensor from the United States.
