PS-1050 instrument, American BLH PS-1050 weighing instrument

1、 PS-1050 Weighing Instrument Product Introduction

Product brand: BLH NOBEL, USA
Product series: PS-1050
Product type: Load cell indicator/transmitter

Product features:

(1) Button configuration and calibration
(2) Linearization of 10 point weighing sensor
(3) Optional 0-10 VDC or 4-20mA isolated analog output
(4) Peak retention function for dynamic/historical measurements
(5) Keyboard input or traditional static load calibration
(6) Optional/adjustable digital filtering
(7) Serial communication and Modbus RTU protocol

Application:

(1) Weighing of storage tanks, silos, and hoppers
(2) Silo and inventory measurement system
(3) Weightless feeder
(4) Platform scale and platform scale indication

Product Description:

(1) The PS-1050 digital/analog transmitter provides signal regulation, amplification, and corresponding digital or isolated analog output signals for the weighing system of the material tank/silo/hopper. The front panel configuration and calibration simplify system installation and operation.
(2) Calibration and configuration parameters can also be downloaded through PC based Pro View software. In either case, there is no need to adjust the dip switch or potentiometer.
(3) Isolated 0-10V or 4-20mA analog outputs provide factory on-site communication for data recorders, remote panel instruments, or PLC inputs. Advanced serial communication can be in RS-232, RS-422, or RS-485 formats with Modbus RTU protocol. Up to 32 PS-1050 can be connected point-to-point using RS-485 serial output.
(4) Convenient 1/8 DIN size panel installation and detachable junction box connectors simplify the installation process.
(5) BLH NOBEL provides PS-121, 24 VDC power supply for PS-1050 operation (Data Sheet # 12155).

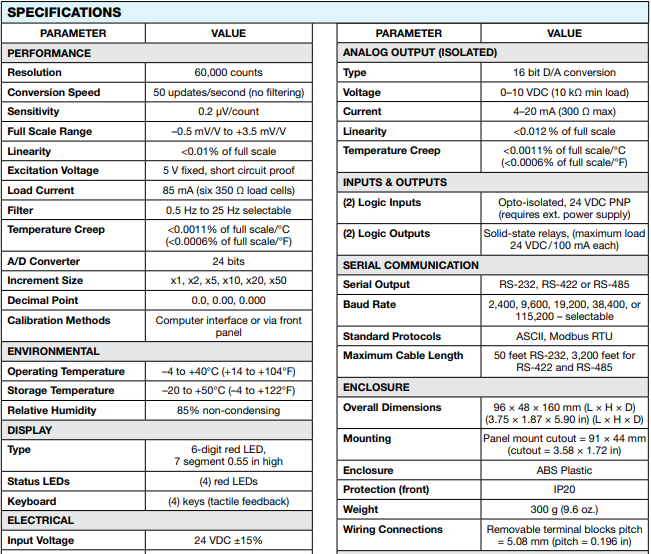

2、 PS-1050 Weighing Instrument Product Parameters

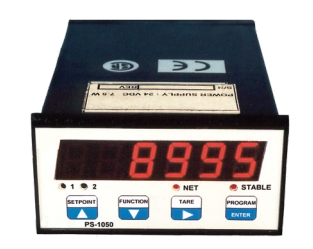

3、 Photos of PS-1050 Weighing Instrument
