PS-1050 weighing instrument, BLH NOBEL brand PS-1050 instrument from the United States

1、 PS-1050 Weighing Instrument Product Introduction

Product brand:BLH NOBEL, USA
Product Series: PS-1050
Product type: Weighing sensor indicator/transmitter

Product features:

(1) Button configuration and calibration
(2) Linearization of 10 point weighing sensor
(3) Optional 0-10 VDC or 4-20mA isolated analog output
(4) Peak holding function for dynamic/historical measurements
(5) Keyboard input or traditional static load calibration
(6) Optional/Adjustable Digital Filter
(7) Serial communication and Modbus RTU protocol

Application:

(1) Tank, silo, and hopper weighing
(2) Silo and inventory measurement system
(3) Weightlessness feeder
(4) Platform scale and scale indication

Product Description: How to Translate

(1) The PS-1050 digital/analog transmitter provides signal conditioning, amplification, and corresponding digital or isolated analog output signals for the tank/bin/hopper weighing system. The front panel configuration and calibration simplify system installation and operation.
(2) Calibration and configuration parameters can also be downloaded through PC based Pro View software. In any case, dip switch or potentiometer adjustment is not required.
(3) Isolated 0-10V or 4-20mA analog outputs provide factory site communication for data loggers, remote panel instruments, or PLC inputs. Advanced serial communication can be in RS-232, RS-422, or RS-485 formats with Modbus RTU protocol. Up to 32 PS-1050 can be connected point-to-point using RS-485 serial output.
(4) The convenient 1/8 DIN size panel installation and detachable junction box connectors simplify the installation process.
(5) BLH NOBEL provides PS-121, 24 VDC power supply for PS-1050 operation (Data Sheet # 12155).

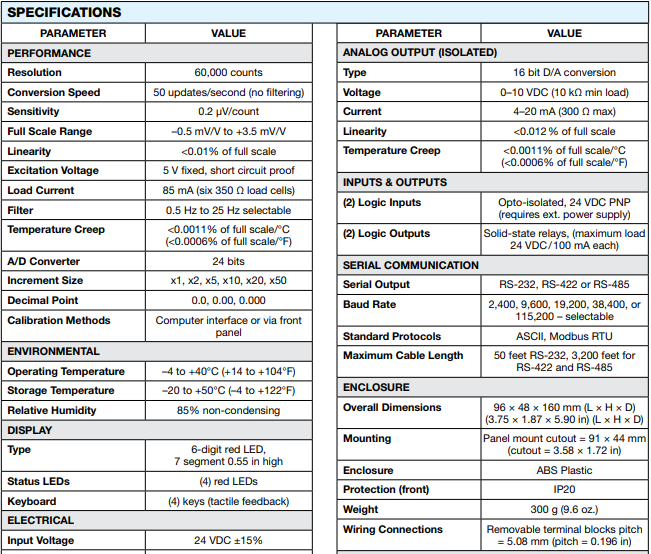

2、 PS-1050 Weighing Instrument Product Parameters

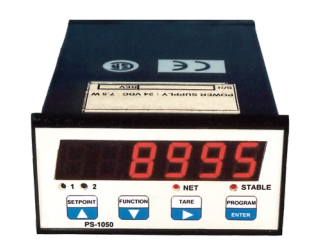

3、 PS-1050 Weighing Instrument Actual Photo
