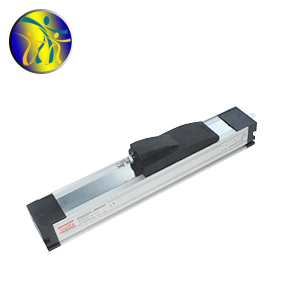

LWZ sensor: LWZ-75~LWZ-1000_ German Volfa displacement sensor

Product brand: VOLFA, Germany

Product type: slider displacement sensor, electronic ruler

Product series: LWZ

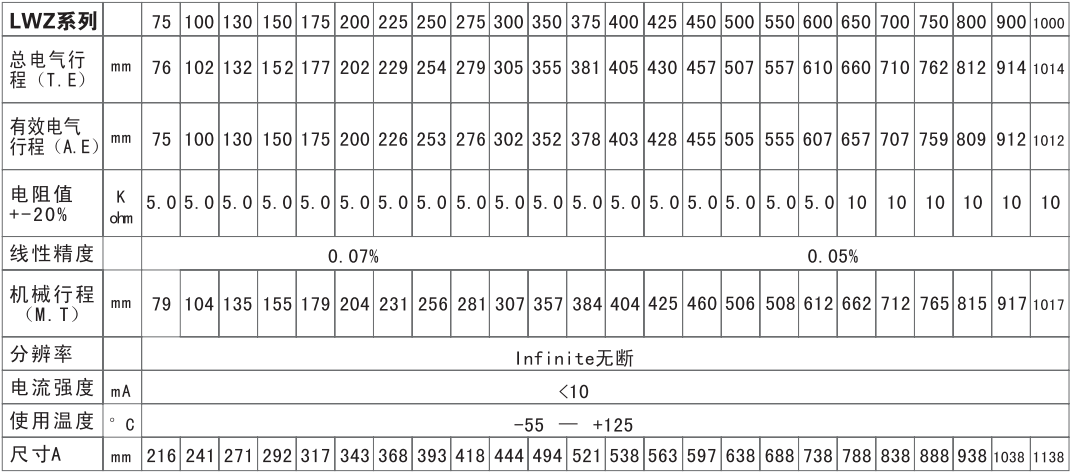

Product travel: 75mm to 1000mm

Output type: 4-20mA/0-10VDC/0-5VDC/RS232/RS485

Product Introduction:

LWZ slider displacement sensor (electronic ruler) with durable conductive plastic resistance rail inside, suitable for position measurement and automation control applications. The LWZ series slider displacement sensor (electronic ruler) measures a length of 75-1000mm and utilizes conductive plastic rails and rare earth metal multi finger contact plates to provide stable signals, low noise, and long lifespan operation. The repeatability of Tejia is ± 0.013mm, while the linear accuracy is ± 0.05%, with no broken resolution. The fixed bracket can be quickly and firmly installed in any position within the aluminum groove. The LWZ slider electronic scale is supported by sturdy stainless steel bearings, providing smooth and tight operation and extremely long lifespan> 100x10 ^ 6 times, using length> 25x10 ^ 6 meters.

1. Analog output 4-20mA Model:

LWZ-75-A1，LWZ-100-A1，LWZ-130-A1

LWZ-150-A1，LWZ-175-A1，LWZ-200-A1

LWZ-225-A1，LWZ-250-A1，LWZ-275-A1

LWZ-300-A1，LWZ-350-A1，LWZ-375-A1

LWZ-400-A1，LWZ-425-A1，LWZ-450-A1

LWZ-500-A1，LWZ-550-A1，LWZ-600-A1

LWZ-650-A1，LWZ-700-A1，LWZ-750-A1

LWZ-800-A1，LWZ-900-A1，LWZ-1000-A1

2. Analog output 0-10VDC Model:

LWZ-75-V1，LWZ-100-V1，LWZ-130-V1

LWZ-150-V1，LWZ-175-V1，LWZ-200-V1

LWZ-225-V1，LWZ-250-V1，LWZ-275-V1

LWZ-300-V1，LWZ-350-V1，LWZ-375-V1

LWZ-400-V1，LWZ-425-V1，LWZ-450-V1

LWZ-500-V1，LWZ-550-V1，LWZ-600-V1

LWZ-650-V1，LWZ-700-V1，LWZ-750-V1

LWZ-800-V1，LWZ-900-V1，LWZ-1000-V1

3. Analog output 0-5VDC Model:

LWZ-75-V2，LWZ-100-V2，LWZ-130-V2

LWZ-150-V2，LWZ-175-V2，LWZ-200-V2

LWZ-225-V2，LWZ-250-V2，LWZ-275-V2

LWZ-300-V2，LWZ-350-V2，LWZ-375-V2

LWZ-400-V2，LWZ-425-V2，LWZ-450-V2

LWZ-500-V2，LWZ-550-V2，LWZ-600-V2

LWZ-650-V2，LWZ-700-V2，LWZ-750-V2

LWZ-800-V2，LWZ-900-V2，LWZ-1000-V2

4. RS232 output model:

LWZ-75-R2，LWZ-100-R2，LWZ-130-R2

LWZ-150-R2，LWZ-175-R2，LWZ-200-R2

LWZ-225-R2，LWZ-250-R2，LWZ-275-R2

LWZ-300-R2，LWZ-350-R2，LWZ-375-R2

LWZ-400-R2，LWZ-425-R2，LWZ-450-R2

LWZ-500-R2，LWZ-550-R2，LWZ-600-R2

LWZ-650-R2，LWZ-700-R2，LWZ-750-R2

LWZ-800-R2，LWZ-900-R2，LWZ-1000-R2

5. RS485 output model:

LWZ-75-R5，LWZ-100-R5，LWZ-130-R5

LWZ-150-R5，LWZ-175-R5，LWZ-200-R5

LWZ-225-R5，LWZ-250-R5，LWZ-275-R5

LWZ-300-R5，LWZ-350-R5，LWZ-375-R5

LWZ-400-R5，LWZ-425-R5，LWZ-450-R5

LWZ-500-R5，LWZ-550-R5，LWZ-600-R5

LWZ-650-R5，LWZ-700-R5，LWZ-750-R5

LWZ-800-R5，LWZ-900-R5，LWZ-1000-R5
