1、 Introduction to LWF displacement sensor products
Product brand: VOLFA, Germany
Product type: displacement sensor, pull rod displacement sensor
Product model: LWF
Product travel: 50mm to 1420mm
Product distribution: Guangzhou Zhongxin Automation Technology Co., Ltd
Product Introduction:
LWF pull rod displacement sensor (electronic ruler) with durable conductive plastic resistance rail inside, suitable for position measurement and automation control applications. The measurement length of the LWF series pull rod displacement sensor (electronic ruler) is 50-1420mm, using conductive plastic rails and rare earth metal multi finger contact plates to provide stable signals, low noise, and long service life operation. The repeatability of Tejia is ± 0.013mm, while the linear accuracy is ± 0.05%, with no broken resolution. The fixed bracket can be quickly and firmly installed in any position within the aluminum groove. The LWF pull rod electronic scale is supported by sturdy stainless steel bearings, providing smooth and tight operation with an extremely high lifespan of over 100x10 cubic meters and a length of over 25x10 cubic meters.
2、 All models of LWF series displacement sensors
Analog output 0-5V DC model:
LWF-50-V2，LWF-75-V2，LWF-100-V2
LWF-130-V2，LWF-150-V2，LWF-175-V2
LWF-200-V2，LWF-225-V2，LWF-250-V2
LWF-275-V2，LWF-300-V2，LWF-350-V2
LWF-375-V2，LWF-400-V2，LWF-425-V2
LWF-450-V2，LWF-500-V2，LWF-550-V2
LWF-600-V2，LWF-650-V2，LWF-700-V2
LWF-750-V2，LWF-800-V2，LWF-900-V2
LWF-1000-V2，LWF-1100-V2，LWF-1220-V2
LWF-1420-V2
Optional 4-20mA/0-10V DC/RS232/RS485 output
3、 Actual photo of LWF series displacement sensor product
4、 Dimensions of LWF series displacement sensor products

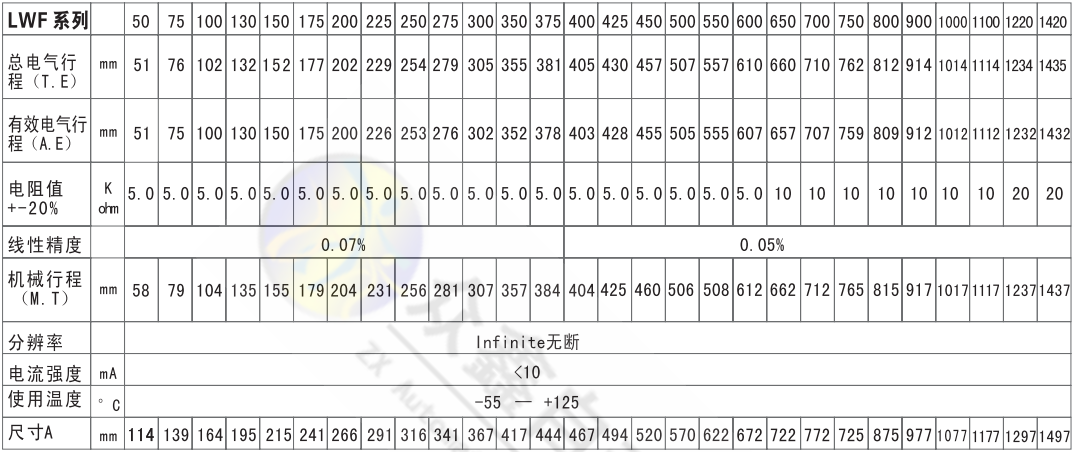

5、 Technical parameters of LWF series displacement sensors
