Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of T12HP/100Nm~T12HP/10kNm
German HBM torque sensorThe German HBM-T12HP torque sensor guarantees fast delivery time, 100% original and genuine products, and strives to become the top brand of sensor sales in China. The German HBM-T12HP torque sensor is one of our company's key advantageous products, with an absolute competitive price. It is available in stock, original, authentic, and reliable! Ensure satisfactory price and quality!
We solemnly promise:“Any unconditional return or exchange of goods with quality issues within three months, full refund of payment, and no charge”. Warranty1Year, maintenance at any time!
Product Introduction:
German HBM torque sensor T12HP series related models: T12HP/100Nm, T12HP/200Nm, T12HP/500Nm, T12HP/1kNm, T12HP/2kNm, T12HP/3kNm, T12HP/5kNm, T12HP/10kNm.

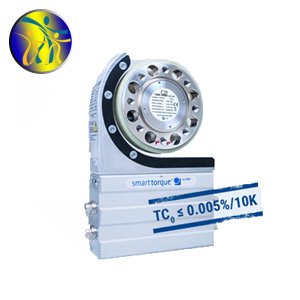

T12HP torque sensor: highest precision, dynamic performance, and resolution
Single torque sensor, multifunctional - only T12HP can achieve this. Its excellent basic accuracy ensures high accuracy of the complete measurement range. Adopting the latest FlexRange ™ Technology eliminates the need to switch ranges like other so-called dual range sensors.
The non-contact sensor combines the flexibility of digital signal conditioning with carrier frequency amplifier technology, without loss of data and accuracy. T12HP assistant software and support for CAN protocol make parameter configuration simpler and more convenient.
By combining TIM-EC and PROFINET TIM-PN interface modules for EtherCAT, torque and speed signals can be integrated with cutting-edge test bench systems through frequency interfaces, making them flexible and capable of achieving maximum performance.
HBM accuracy level: 0.02
Rated range: 100 Nm to 10 kNm
Minimal linear error, including a lag of 0.007%
Excellent temperature stability, TC0 of 0.005%/10K
FlexRange ™ Technology - No need for range switching
High bandwidth
Mechanical limit value monitoring
Measurement process diagnosis
Built in temperature measurement
Supports CAN, PROFIBUS, EtherCAT, and PROFINET protocols, making it easy to integrate different test benches
Measurement range from 100 Nm to 10 kNm
Product structural dimensions:
Product technical parameters:
Expand reading
Torque sensors and torque sensors
As the world's first manufacturer of digital torque sensors, HBM's products include torque sensors (torque sensors, torque sensors), non rotating torque sensors (torque sensors) for measuring reaction forces, as well as various couplings and measuring instruments for torque sensors (torque sensors). HBM has patented technology for slip ring and non-contact signal transmission, with a rated measurement range from 0.1 N • m to 2 MN • m and a maximum rated speed of 40000 rpm.
The HBM torque sensor has always been renowned in the industry. Since 1958, HBM torque sensors (torque sensors, torque sensors) have been an industry standard widely used in engine and component testing benches, production monitoring, and laboratory torque calibration.
The first calibration laboratory of DKD (German calibration service agency) was established in HBM in 1977. On July 13, 1990, HBM was awarded torque calibration by DKD. For many years, HBM has been the only laboratory in Germany that can provide torque calibration services and is responsible for developing national standards
T12, T40FM, T40, and T40B are the new generation digital torque sensors. It adopts a special analog-to-digital conversion method, which not only has error recognition function and is not sensitive to electromagnetic environment, but also has higher sampling rate and accuracy.
The above are T12HP/100Nm~T12HP/10kNmGerman HBMDetailed information on torque sensors. If you have any questions about the price, delivery time, model, or inventory of T12HP/100Nm~T12HP/10kNm German HBM torque sensors, please feel free to call us18520271262 Chen GongObtain the latest price details of T12HP/100Nm~T12HP/10kNm German HBM torque sensors.
