Product Introduction:

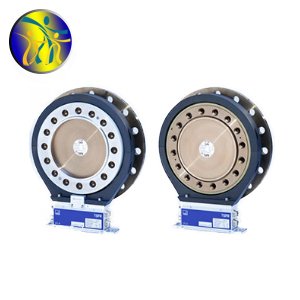

German HBM torque sensor T40FM series related models: T40FM/15kNm, T40FM/20kNm, T40FM/25kNm, T40FM/30kNm, T40FM/40kNm, T40FM/50kNm, T40FM/60kNm, T40FM/70kNm, T40FM/80kNm.

T40FM dynamic torque measurement from 15 kN · m to 80 kN · m
The T40FM torque sensor can measure dynamic torque up to 80 kN · m with high precision and reliability, and has a very high cost performance ratio. Sturdy and reliable, it can be used in harsh environments, making it an ideal choice for the production and testing of large engines and transmission systems. Equipped with digital and analog interfaces, it is easier to integrate into the testing system. It has the same geometric dimensions as its predecessor T10FM and can be easily replaced for system upgrades.

• HBM accuracy level: 0.1

• Rated torque: 15 kN · m to 80 kN · m

• Rated speed: up to 8000 rpm

• High measurement accuracy and linearity, 0.05% low creep

• High lateral force stability

• High torsional stiffness, suitable for dynamic measurement systems

• Measurement bandwidth up to 6 kHz

• Sampling rate up to 38.125 kS/s

• High stability, even in environments with constantly changing temperatures

• Magnetic reluctance speed measurement system, insensitive to oil and dust

• Wider range of measurement, from 15 kNm to 80 kNm

• Equipped with analog and digital interfaces (Profibus DP, CAN, EtherCAT, Profinet), it is easy to integrate into various test benches

• Same size as T10FM, downward compatible

• Shorter size and simpler assembly

Product structural dimensions:


Product technical parameters:


Expand reading

Torque sensors and torque sensors

As the world's first manufacturer of digital torque sensors, HBM's products include torque sensors (torque sensors, torque sensors), non rotating torque sensors (torque sensors) for measuring reaction forces, as well as various couplings and measuring instruments for torque sensors (torque sensors). HBM has patented technology for slip ring and non-contact signal transmission, with a rated measurement range from 0.1 N · m to 2 MN · m and a maximum rated speed of 40000 rpm.
The HBM torque sensor has always been renowned in the industry. Since 1958, HBM torque sensors (torque sensors, torque sensors) have been an industry standard widely used in engine and component testing benches, production monitoring, and laboratory torque calibration.
The first calibration laboratory of DKD (German calibration service agency) was established in HBM in 1977. On July 13, 1990, HBM was awarded torque calibration by DKD. For many years, HBM has been the only laboratory in Germany that can provide torque calibration services and is responsible for developing national standards
T12, T40FM, T40, and T40B are the new generation digital torque sensors. It adopts a special analog-to-digital conversion method, which not only has error recognition function and is not sensitive to electromagnetic environment, but also has higher sampling rate and accuracy.
