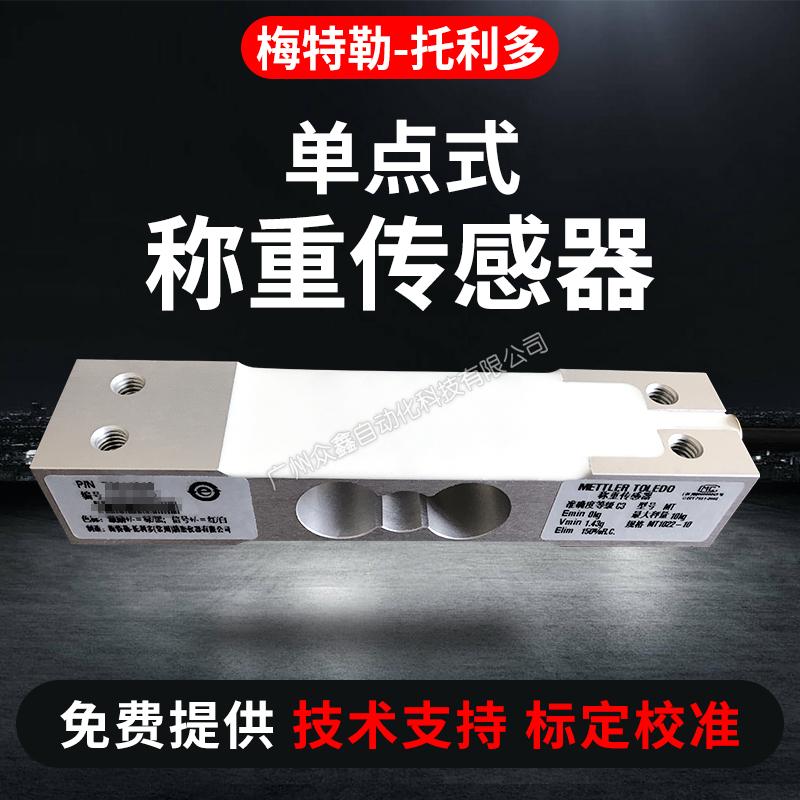

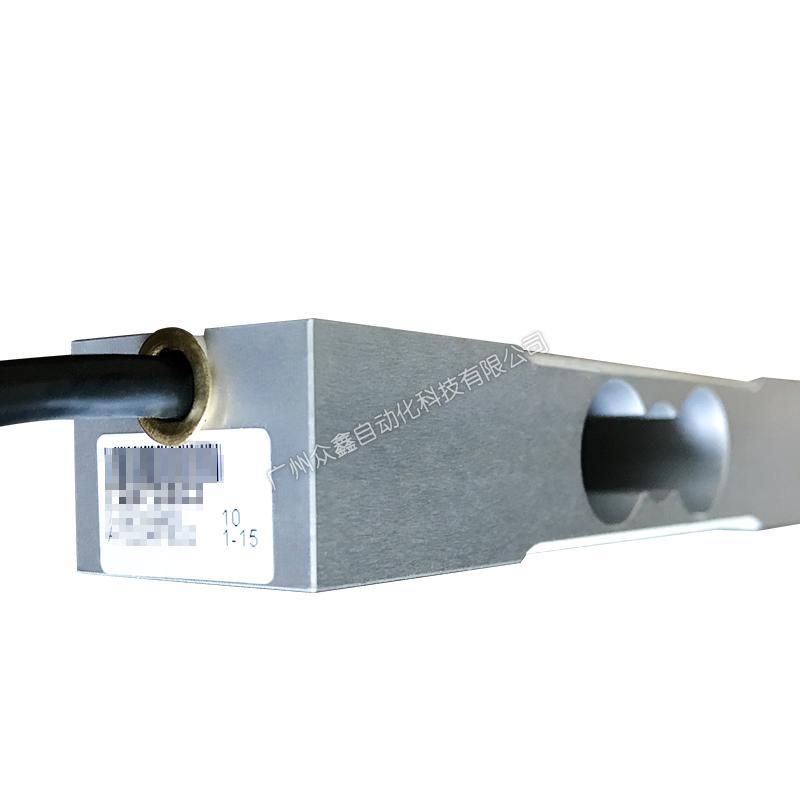

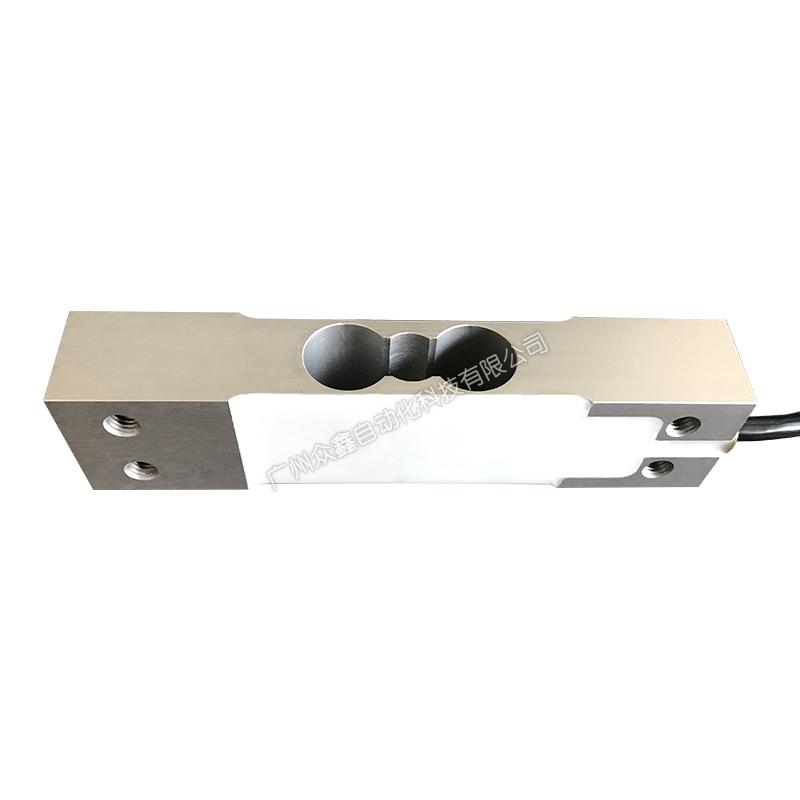

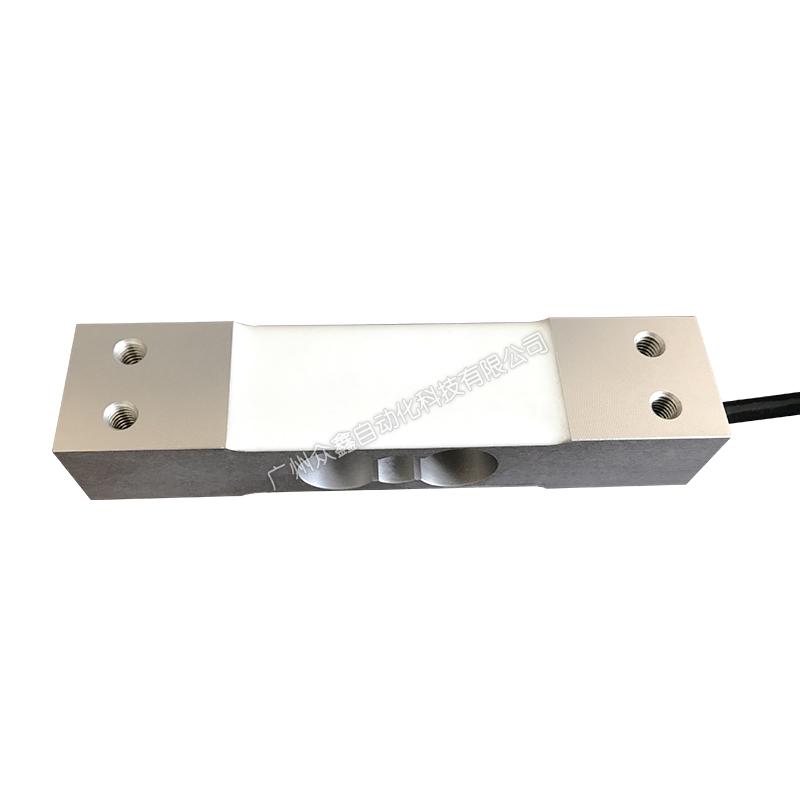

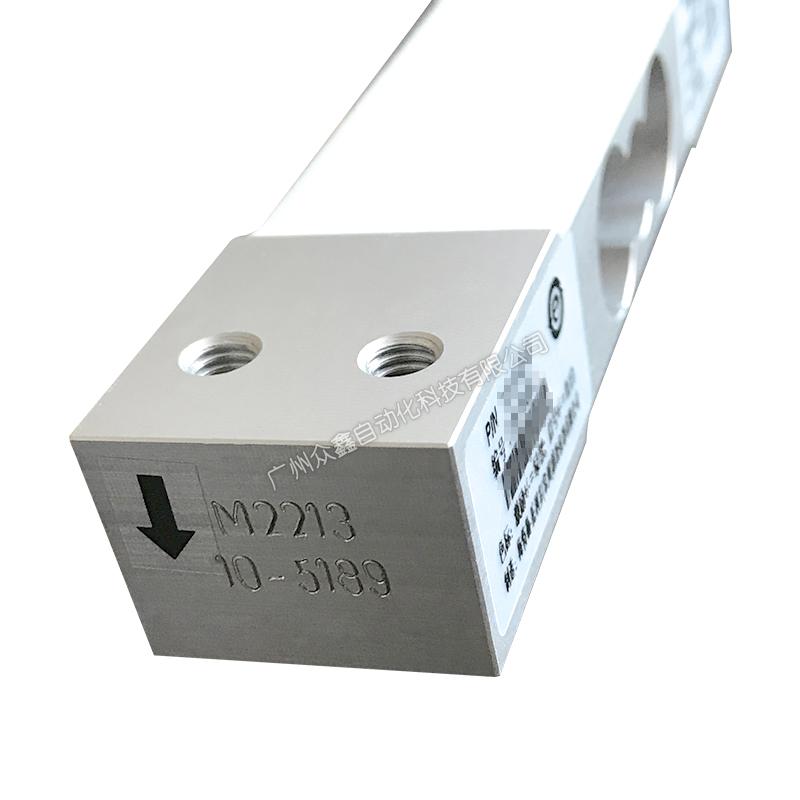

【 MT1022 Sensor 】 MT1022-3kg~MT1022-30kg-Mettler Toledo Weighing Sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　

Guangzhou Zhongxin Automation Technology Co., Ltd. specializes in supplying Mettler Toledo MT1022 series weighing sensors. The MT1022 sensors range from MT1022-3kg to MT1022-30kg-Mettler Toledo weighing sensors guarantee fast delivery times and are 100% genuine. With 10 years of industry experience, we focus on high-end and high-quality sensor services, providing complete automation solutions. Mettler Toledo MT1022 seriesThe weighing sensorRelated models: MT1022-3kg, MT1022-5kg,MT1022-7kg,MT1022-10kg,MT1022-15kg,MT1022-20kg,MT1022-30kg。

Mettler Toledo MT1022 Series Product Introduction

English name: Swiss METTLER TOLEDO weighing sensor
Chinese name:Mettler Toledo weighing sensor
Product features:
Single point sensorAluminum
Obtained OIML R60 C3 certificate from NMi in the Netherlands
Protection level IP67
Four corner deviation has been compensated for
Maximum scale size (mm): 350 x 350
Range options: 3, 5, 7, 10, 15, 20, 30kg
Can be used for pricing scales, packaging scales, process weighing equipment, etc

Mettler Toledo MT1022 series installation dimensions


　
Mettler Toledo MT1022 series technical specifications
　


Mettler Toledo MT1022 Series Ordering Information

Material number: 72214243 Model description: Single point aluminum sensor 3KG, 1m cable
Material number: 72214244 Model description: Single point aluminum sensor 5KG, 1m cable
Material number: 72214245 Model description: Single point aluminum sensor 7KG, 1m cable
Material number: 72214246 Model description: Single point aluminum sensor 10KG, 1m cable
Material number: 72214247 Model description: Single point aluminum sensor 15KG, 1m cable
Material number: 72214248 Model description: Single point aluminum sensor 20KG, 1m cable
Material number: 72214249 Model description: Single point aluminum sensor 30KG, 1m cable

Explosion proof ordering information series
Material number: 72187224 Model description: Single point aluminum weighing sensor 3KG, 1m cable, explosion-proof
Material number: 72208212 Model description: Single point aluminum weighing sensor 5KG, 1m cable, explosion-proof
Material number: 72187225 Model description: Single point aluminum weighing sensor 7KG, 1m cable, explosion-proof
Material number: 72187226 Model description: Single point aluminum weighing sensor 10KG, 1m cable, explosion-proof
Material number: 72187227 Model description: Single point aluminum weighing sensor 15KG, 1m cable, explosion-proof
Material number: 72187228 Model description: Single point aluminum weighing sensor 20KG, 1m cable, explosion-proof
Material number: 72187229 Model description: Single point aluminum weighing sensor 30KG, 1m cable, explosion-proof

Expand reading

Brand Introduction
METTLER TOLEDO, as a leading global manufacturer of precision instruments and scales, has maintained technological and market leadership throughout its century long development history. Nowadays, the solutions provided by Mettler Toledo cover various processes and links in the laboratory, industrial, and retail (commercial) industries. From high-precision microanalysis to weighing applications of over a thousand tons, Mettler Toledo's unified team, global service network, and perfect solutions help global users improve efficiency, create value, and easily cope with various challenges.
　
The origin of single point weighing sensors
In the discussions at the first International Industrial Weighing and Force Measurement Exhibition in 1979, a new term emerged in the terminology of sensors: "single point" force sensing. The latest generation of retail scales does not include any auxiliary flexure supporting the upper weighing software platform, which is rigidly fixed to the central sensor. The design of this type of single point force sensor is based on the parallelogram principle, but requires an additional central cross beam for attaching strain gauges to complete the task of measuring beams and deflection members in the top and bottom components of the parallelogram. Its advantage is that the strain gauges are moved away from the position where there is a twisting effect caused by eccentric loading, while increasing the rigidity of the structure. This type of force sensor needs to undergo eccentric loading test in the manufacturing plant. Apply one-third of the maximum load of the sensor in different directions within a radius of 200 millimeters. Each sensor must operate within ± 1/3000 of the center reading value, which is a typical design. Another noteworthy new news in the field of force sensors is the promotion and application of the gyroscope principle. The gyroscope force measurement system utilizes the proprietary characteristics of gyroscopes, making it a precise, linear, and highly reproducible force sensor. After studying the anti hysteresis, anti drift, and anti temperature effects of this force sensor, the gyroscope force measurement system can transmit direct digital signals to the display unit with high anti-interference ability. These characteristics make it completely independent of harsh environmental conditions. The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal bracket. There is a joint hanging an external universal bracket, which in turn supports one end of the rotatable lever under the tourbillon.
　
The above is the detailed information of the MT1022 sensor MT1022-3kg~MT1022-30kg-MettlerToledo weighing sensor. If you have any questions about the price, delivery time, model, and inventory of the MT1022 sensor MT1022-3kg~MT1022-30kg-MettlerToledo weighing sensor, please feel free to call18520271262 Chen GongGet the latest price details for the MT1022-3kg~MT1022-30kg-Mettler Toledo weighing sensor.
