1、 Introduction to Mettler Toledo IND236 Instrument 236H10002000N00 Weighing Instrument
Product Series: IND236
Model description: 236H10002000N00 stainless steel, dust-proof, AC, COM1 RS232+RS232/RS422/RS485 with isolation
Product Introduction:
1. High definition display
40mm weighing height display with adjustable white backlight, capable of displaying clear weighing results under different lighting conditions; The intuitive icons on the monitor provide rich indications of operational status.
2. Quick and convenient operation
Adopting a sturdy and durable touch film keyboard with seven function keys, including two customizable function keys; Function keys can be easily defined within seconds, and application modes can be switched with just one click; Convenient menu configuration through clearly defined menu navigation keys.
3. Flexible applications
Flexible battery options help achieve mobile weighing; In addition to standard RS232, there are additional connection options available. Standard applications include basic weighing, weight checking, simple counting, animal weighing, and weight accumulation functions.
4. Reliable performance
High resolution and fast stabilization time ensure weighing accuracy and achieve fast weight reading; IP66/67 protection (IND236) ensures that the instrument can operate for a long time in harsh environments.
5. Improve production efficiency
IND231 and IND236 are suitable for various trade settlement weighing applications. The provided application functions include: overload/underload weighing with ten pre stored target values, counting with average single weight enhancement, animal weighing, and weight accumulation. A built-in application specific printing template that includes date and time information can provide customers with transaction records. For many Mettler Toledo industrial weighing instruments, the IND231 and IND236 instruments can also function like remote displays.

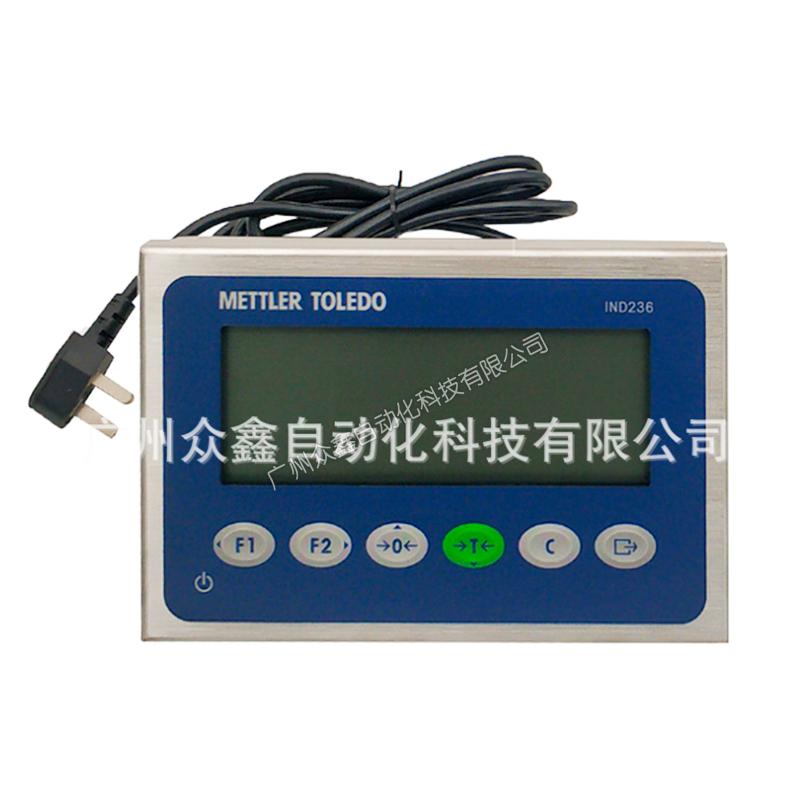

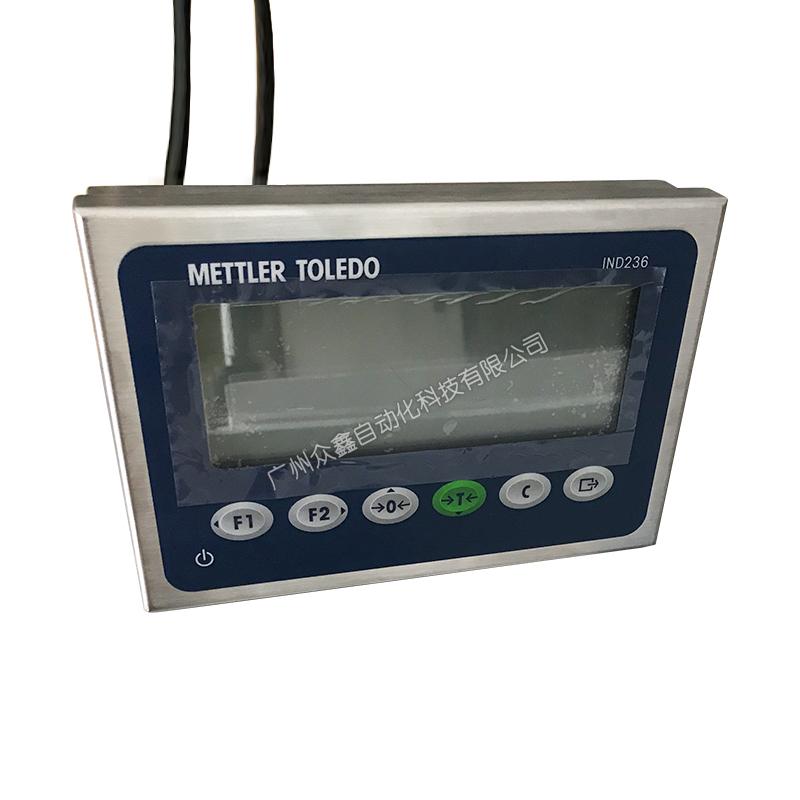

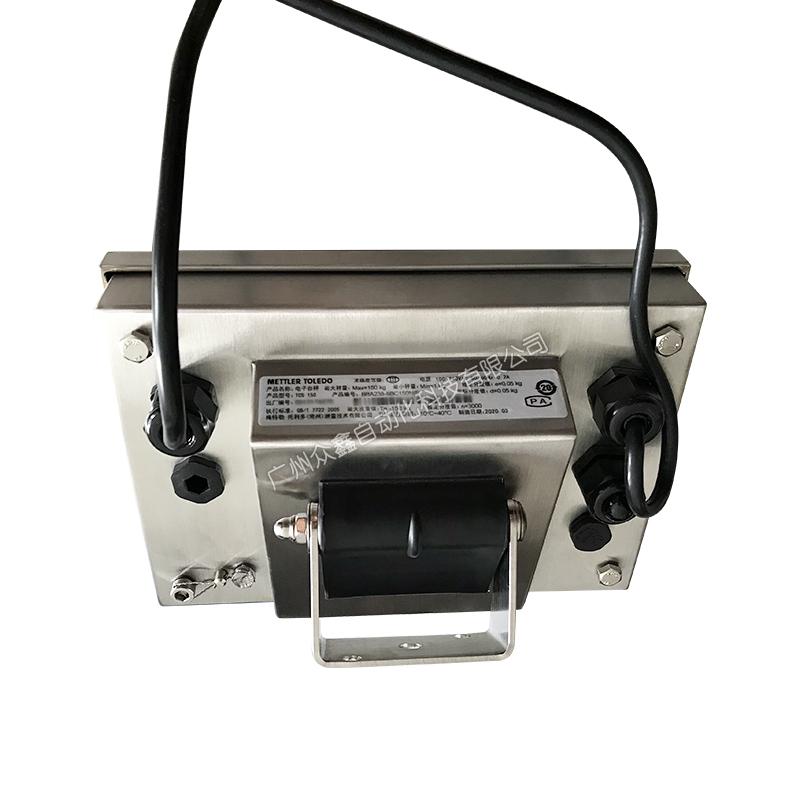

2、 Mettler Toledo IND236 weighing instrumentpicture
3、 Mettler Toledo IND236 Instrument 236H10001000R00 Weighing Instrument Related Models
Stainless steel shell material model:
236H10001000N00
236H10002000N00
236H10001000R00
236H10002000R00
236H10003000R00
236H10004000R00
Plastic shell material model:
231G10001000A00
231G10002000A00
231G10003000A00
231G10004000A00
231G10001000R00
231G10002000R00
231G10003000R00
231G10004000R00
4、 Mettler Toledo IND236 Weighing Instrument Standard Configuration
1. IND236 adopts a sturdy and sturdy stainless steel shell design
2. Supports a simulated weighing sensor platform, which can be equipped with up to four 350 ohm weighing sensors
3. Large seven segment LCD display with white backlight and graphic icons for clear reading under various lighting conditions
4. Powered by 85-264 V AC or internal battery pack
5. A standard serial port (COM1) for asynchronous, bidirectional communication
6. Supports the following option boards:
7. RS232, RS422, and RS485 serial interfaces for COM2 electrical isolation
8. USB Device interface, used for connecting with PC
9. Discrete Input Output Interface
10. Access to the front panel buttons for basic weighing functions - reset, tare weight, clear, configurable functions, and printing
11. The main units of measurement that can be chosen include grams, kilograms, pounds, and ounces
12. The second units of measurement that can be selected include grams, kilograms, pounds, and ounces
13. When using battery powered models, it features automatic shutdown and backlight stop when needed to help save energy and extend battery life
5、 Mettler Toledo IND236 Weighing Instrument Dimensions
6、 Technical specifications of Mettler Toledo IND236 weighing instrument
