1、 Mettler Toledo IND236 Instrument 236H10001000N00 Weighing Instrument Introduction
Product series:IND236
Model Description: 236H10001000N00 stainless steel, dustproof, AC, COM1 RS232 (replaces IND226-1000)
Product Introduction :
High definition display
40mm weighing height display with white adjustable backlight, capable of displaying clear weighing results under different lighting conditions; The intuitive icons on the display provide rich operational status indications
Quick and convenient operation
Adopting a sturdy and durable touch film keyboard with seven function keys, including two customizable function keys; Simply and easily define function keys in just a few seconds, and switch application modes with just one click; Convenient menu configuration through clearly defined menu navigation keys
Flexible applications
Flexible battery options help achieve mobile weighing; In addition to the standard RS232, there are additional connection options Standard applications include basic weighing, weight detection, simple counting, animal weighing, and weight accumulation functions
Reliable performance
High resolution and fast stabilization time ensure weighing accuracy, and achieve fast weight reading; IP66/67 protection (IND236) ensures that the instrument can operate for a long time in harsh environments
Improve production efficiency
IND231 and IND236 are suitable for various trade settlement weighing applications The provided application functions include over/under load weight detection with ten pre stored target values, counting with average single weight enhancement, animal weighing, and weight accumulation A built-in application-specific printing template that includes date and time information can provide customers with transaction records For many Mettler Toledo industrial weighing instruments, the IND231 and IND236 instruments can also function like remote displays

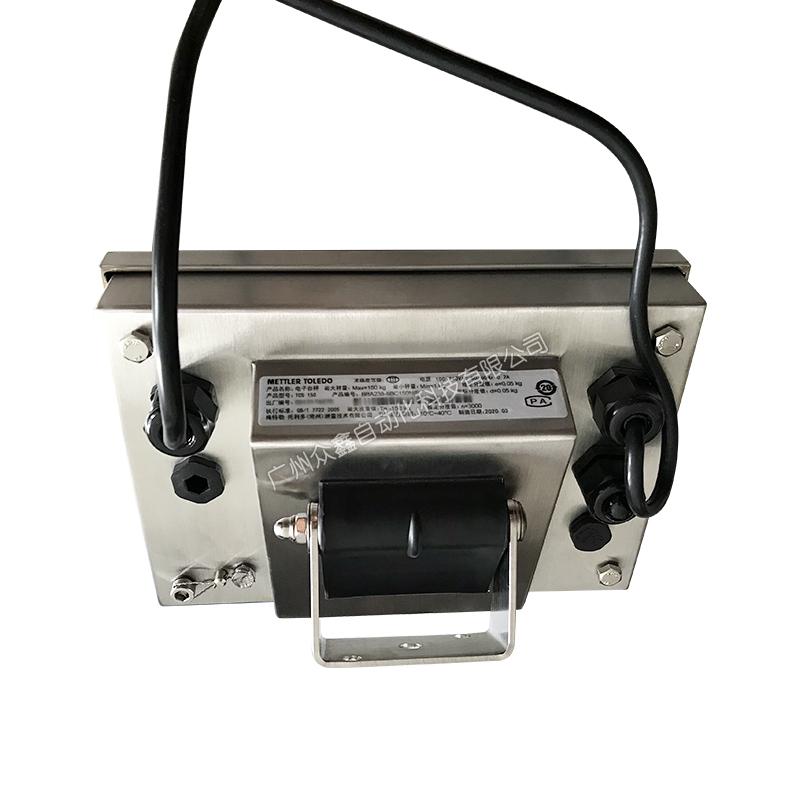

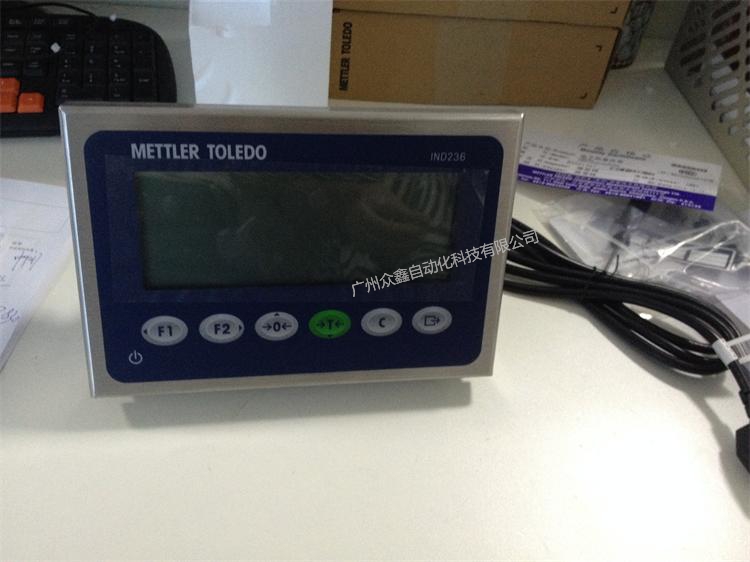

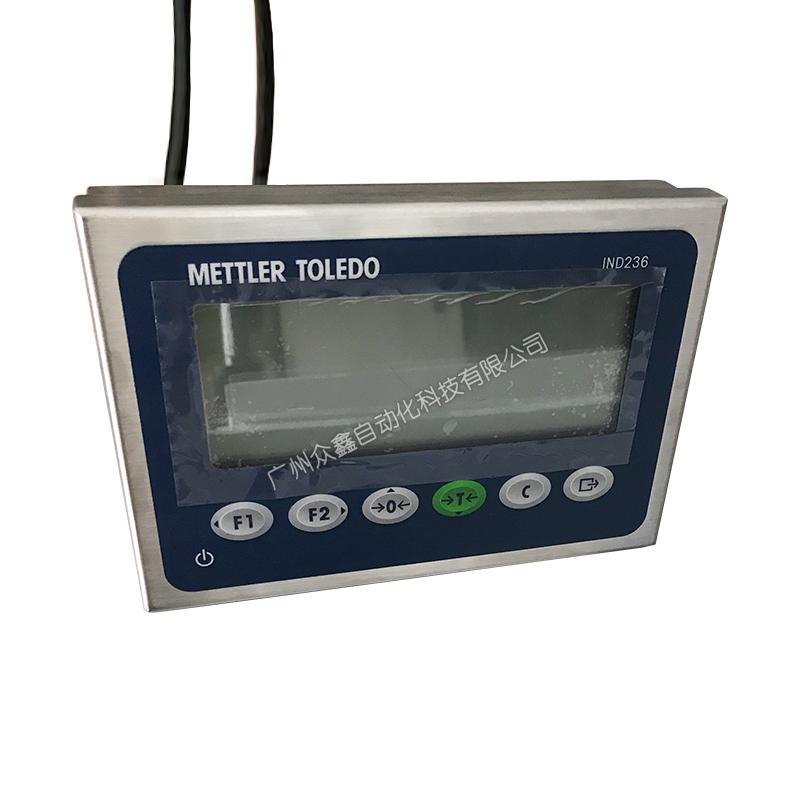

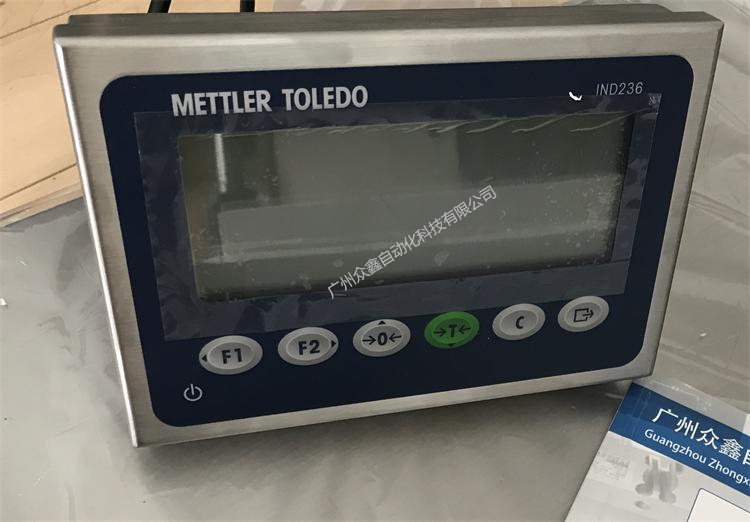

2、 Real picture of Mettler Toledo IND236 weighing instrument
3、 Mettler Toledo IND236 instrument 236H10001000R00 weighing instrument related models
Stainless steel shell material and model:
236H10001000N00
236H10002000N00
236H10001000R00
236H10002000R00
236H10003000R00
236H10004000R00
Plastic shell material and model:
231G10001000A00
231G10002000A00
231G10003000A00
231G10004000A00
231G10001000R00
231G10002000R00
231G10003000R00
231G10004000R00
4、 Mettler Toledo IND236 weighing instrument standard configuration
IND236 features a sturdy and sturdy stainless steel casing design
Supports a simulated load cell weighing platform, which can be equipped with four more 350 Ω load cells
Large seven segment LCD display with white backlight and graphic icons, allowing clear readings under various lighting conditions
Powered by 85 – 264 V AC or internal battery pack
A standard serial port (COM1) for asynchronous, bidirectional communication
The following option boards are supported:
RS232, RS422 and RS485 serial interfaces of COM2 Galvanic isolation
USB Device interface for connecting to a PC
9. Discrete Input Output Interface
10. Access the front panel buttons for basic weighing functions - reset, tare, clear, configurable functions, and printing
1. The main Unit of measurement that can be selected include gram, KG, pound and ounce
1. The second Unit of measurement that can be selected includes gram, KG, pound and ounce
1. When using a battery powered style, it has the characteristics of automatic shutdown and backlight stop when it arrives, to help save energy and extend battery life
5、 Mettler Toledo IND236 Weighing Instrument Dimensions
6、 Mettler Toledo IND236 weighing instrument technical indicators
