1、 Product Introduction
Product Series: DIS2116
Product type: Electronic scale that meets trade requirements
Product Features:
(1) RS485 4-wire connection, can connect up to 24 digital weighing sensors
(2) Truck scale menu, up to 3 sections, each section can connect up to 8 weighing sensors
(3) Encrypt the transmission of measurement values between DIS2116 and weighing sensors in commercial mode
(4) Serial communication COM port (RS232) with PC/PLCCOM
(5) Printer COM port (RS232 or USB)
(6) External large display COM port (RS232)
(7) COM port for connecting to fieldbus
(8) Connect to external keyboard PS2
(9) Built in SD card, used as alibi memory for printing data and settings
(10) Real time clock with battery buffering function
(11) The power supply voltage range is 10... 30 VDC
(12) Output voltage supply to digital weighing sensor
Other features:
(1) Used as a 1, 2, and 3 range scale
(2) Enable/disable menu functionality
(3) Filter selection
(4) Maximum capacity adjustment, partial load adjustment
(5) Start zeroing
(6) Automatic zero point tracking
(7) Linearization of weighing range
(8) Various printing functions
(9) Monitoring and error detection functions
Product Application:
(1) As a non automatic scale component, it is the main display for commercial scales with up to 24 digital weighing sensors (such as C16i), （NAWI）1）
(2) When used as a car scale, it can be divided into up to 3 sections and used as a complex weighing device.
2、 Product model
Model: DIS2116
(1) ABS shell with 4 PG sealing rings
(2) Two countersunk screws and expansion tubing are used for wall installation
(3) Adhesive labels are used to seal calibration buttons and inserts
(4) 6 inserts can record nominal data
(5) 2 serial ports (RS232): Serial port 1 communicates with PC/PLC, serial port 2 connects to a serial printer or external large screen display
Model: DIS2116M
(1) Stainless steel panel installation with 6 fixing holes
(2) Adhesive labels are used to seal calibration buttons and inserts
(3) 6 inserts can record nominal data
(4) 2 serial ports: Serial port 1 (RS485) communicates with PC/PLC, and serial port 2 (RS232) connects to a serial printer or external large screen display
3、 Product size
4、 Product parameters

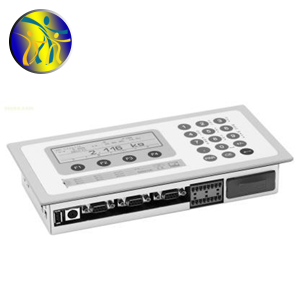

5、 Product images
