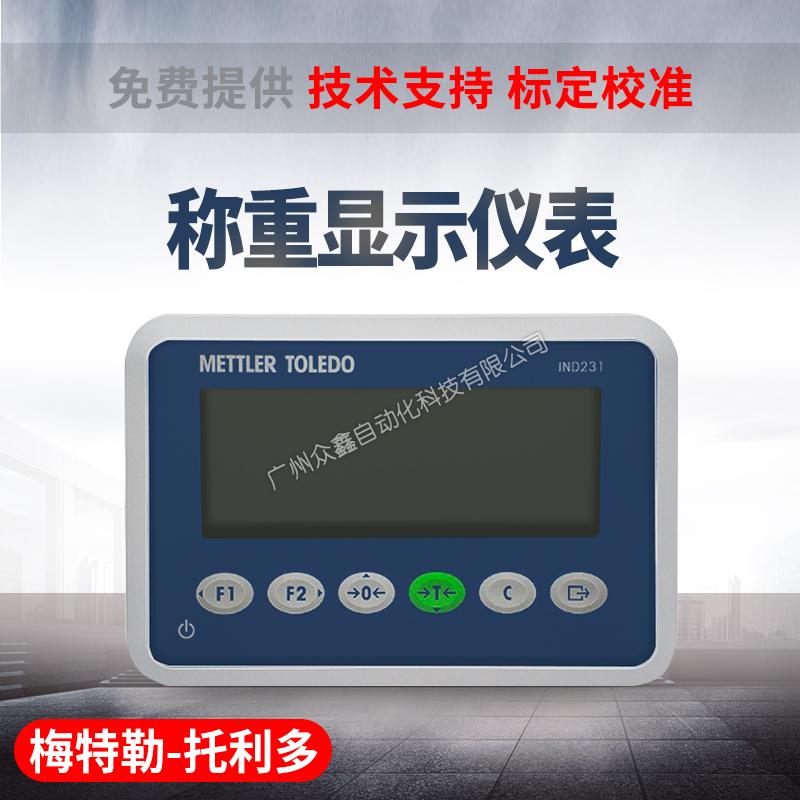

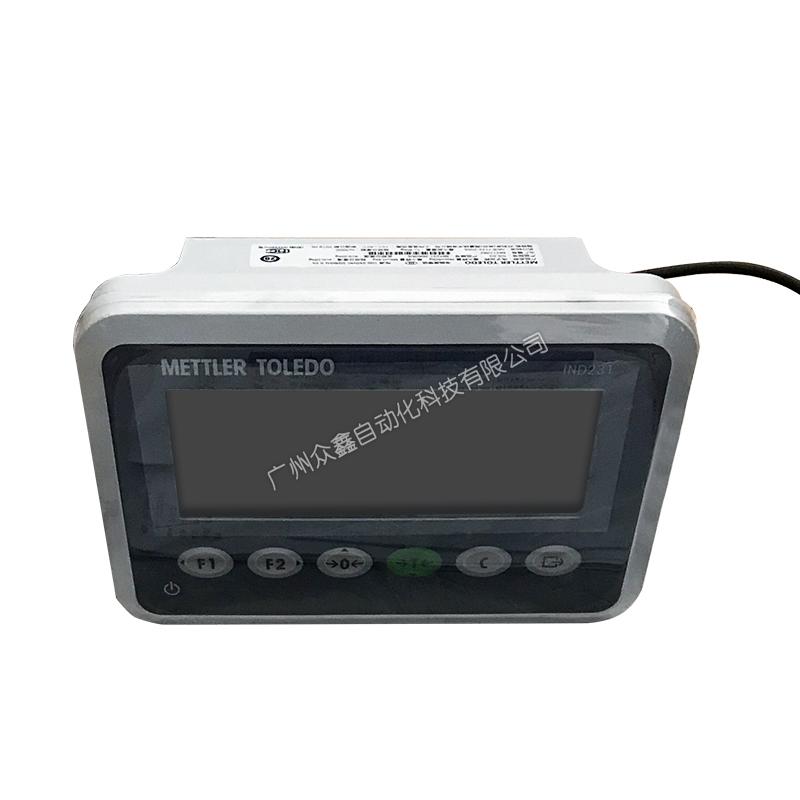

IND231 Weighing Display Controller - Mettler Toledo Weighing Instrument

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of IND231 weighing display controller Switzerland MTEELER TOLEDOMettler Toledo weighing instrumentIND231 Weighing Display ControllerWeighing instrument_Mettler Toledo weighing instruments guarantee fast delivery time, 100% original and authentic products, with 10 years of industry experience focusing on high-end and high-quality sensor services, providing complete automation solutions.

Four major advantages of IND231 weighing instrument

1. High definition display
The IND231 instrument panel is equipped with a large 60mm (height) LCD display with white adjustable backlight, providing excellent readability under any lighting conditions.
　
2. Innovative human-machine interface
In addition to the five commonly used touch film buttons (power on/off, zero, peel, clear, print), BBA231 is equipped with two freely definable function keys (F1 and F2) for the first time. This allows users to quickly and conveniently switch between different functions.
　
3. Instant status indication
By utilizing real-time status indication, it is convenient and accurate to perform weight inspection and weighing. At the same time, the target weight setting is simple, which can improve the accuracy of the entire weighing process.
　
4. Real time monitoring
All functions (directly selected on the function keys) and the current scale status are always easily visible, providing you with a good view.

Main data of IND231 weighing instrument

name	Weighing display instrument
model	IND231	IND236
Specifications	231H1-XXXXX-XXX-X00	236H1-XXXXX-XXX-X00
Shell	Plastic	Plastic
Protection level	IP54	IP54
Installation method	Desktop or wall mounted installation	Desktop or wall mounted installation
monitor	7-position, 7-segment LCD display
	White backlight
	Height: 60mm
	Stable time<1 second
working temperature	-10℃~+40℃
relative humidity	10%℃~+40℃
characteristic	Date and Time (RTC), x10, Printing, Unit Switching, Target Storage

　
Two types of IND231 weighing instruments

Ind231 dustproof series
231H10001000N00 weighing instrument, 231H10002000N00 weighing instrument
231H10002000N00 weighing instrument, 231H10002000N00 weighing instrument
231H10001000R00 weighing instrument, 231H10002000R00 weighing instrument
231H10003000R00 weighing instrument, 231H10004000R00 weighing instrument
　
Ind236 dustproof series
236H10001000N00 weighing instrument, 236H10002000N00 weighing instrument
236H10002000N00 weighing instrument, 236H10002000N00 weighing instrument
236H10001000R00 weighing instrument, 236H10002000R00 weighing instrument
236H10003000R00 weighing instrument, 236H10004000R00 weighing instrument

Note:IND231 \ 236 replaces the original KINGBIRD \ IND220, IND221, and IND226 (launched in 2014) and can accommodate up to 4 sensors
　
Expand reading
　
Brand Introduction
METTLER TOLEDO, as a leading global manufacturer of precision instruments and scales, has maintained technological and market leadership throughout its century long development history. Nowadays, the solutions provided by Mettler Toledo cover various processes and links in the laboratory, industrial, and retail (commercial) industries. From high-precision microanalysis to weighing applications of over a thousand tons, Mettler Toledo's unified team, global service network, and perfect solutions help global users improve efficiency, create value, and easily cope with various challenges.
　
Structure principle of weighing display
There are many types of digital display weighing control displays (referred to as digital displays), and one of them is shown in Figure 1. The digital display receives and processes the electrical signal output by the weighing sensor. Electrical signals come in both analog and digital forms, with the most common being analog voltages ranging from a few to tens of millivolts. The circuit principle of the digital display is shown in Figure 2. The excitation power supply supplies the working power of the weighing sensor, while also supplying the reference voltage of the A/D (Analog/Digital) conversion unit, with a stability generally above 0.1%. The amplification unit usually adopts a measurement amplifier structure to receive and amplify the signal of the weighing sensor. The magnification is usually several hundred times. The filtering unit filters out electrical noise mixed in from outside the machine and generated by the amplifier itself. The A/D conversion unit converts analog signals into digital signals, and the number of conversion bits is usually 14 or more binary digits. The data processing unit is composed of a microprocessor as the core and peripheral support chips. It completes a series of operations such as data acquisition, operation, and storage under the control of the program, and sends the processing results to the corresponding interface. The display unit displays the weighing value and weighing status in the form of numbers, text, charts, etc., and can communicate with external devices through interfaces.
Performance characteristics
The performance of a digital display includes five aspects: metrological performance, functionality, environmental adaptability, safety, and reliability. Compared with general digital instruments, digital displays have five characteristics: ① Equipped with sensor excitation power supply, easy to use; ② Adopting ratio type A/D conversion and frequency doubling technology, the long-term stability of metrological performance is good; ③ The software can accurately simulate weighing characteristics such as vibration, empty scale changes, and material drop, displaying fast, accurate, and stable results There is a setting unit for setting parameters such as empty scale zero setting, zero tracking, calibration, maximum scale capacity, and division position inside the machine, which is easy to adjust and has strong universality; ⑤ With an output interface, it can connect multiple external devices for easy system control.
　
The above is the detailed information of the IND231 weighing display controller and the Mettler Toledo weighing instrument. If you have any questions about the price, delivery time, model, or inventory of the IND231 weighing display controller and the Mettler Toledo weighing instrument, please feel free to call18520271262 Chen GongobtainIIND231 Weighing Display Controller - The latest price details for Mettler Toledo weighing instruments.
