Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of IND331 control instruments METTLER TOLEDO

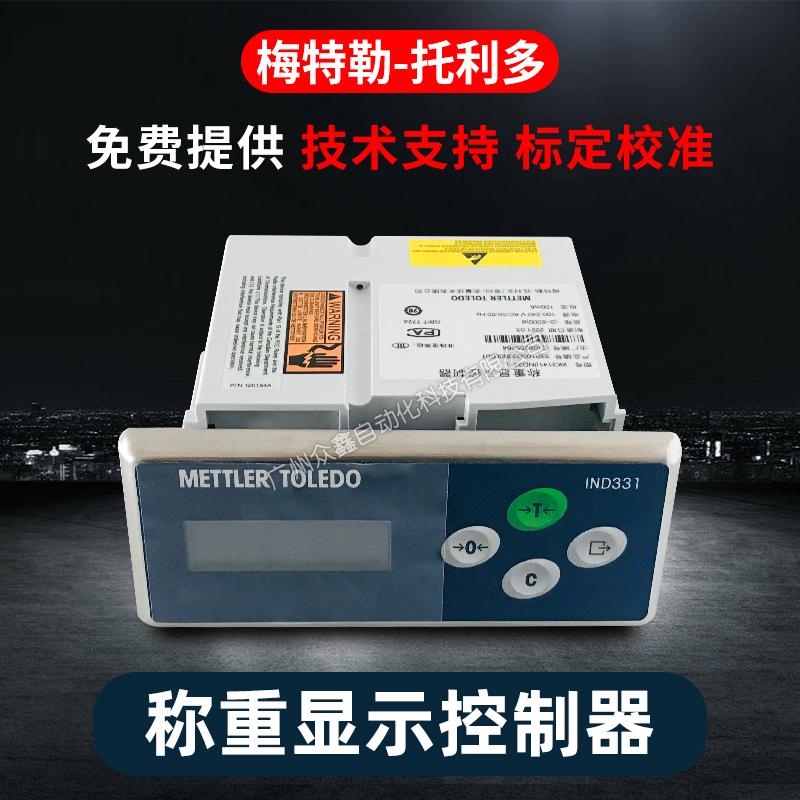

Mettler Toledo weighing displayIND331 Weighing Display Controller IND331 Control Instrument_
Mettler Toledo weighing instrumentEnsure fast delivery time, 100% original and authentic products, and strive to become the first brand of sensor sales in China. Swiss METTLER TOLEDO METTLER TOLEDO IND331 Control Instrument Advantage Supply! IND331 control instrument related models: 33P1-0000-000-000, 33P1-0000B-000-000, 33P1-00000-D00-000, 33P1-00000-B00-000, 33P1-00000-A00-B00-000, 33P1-00000-P00-000, 33H1-00000-J00, 33H1-00000-D00-J00, 33H1-00000-B00-J00, 33H1-00000-A00-J00, 33H1-00000-P00-J00.
Introduction to IND331 Control Instrument ProductsThe IND331 industrial weighing terminal is the latest high-quality weighing control terminal launched by Mettler Toledo. It combines all the advantages of the classic instrument Panther and has been comprehensively improved in various aspects. The IND331 industrial weighing terminal can be widely used in industrial fields such as chemical, metallurgical, pharmaceutical, tobacco, and food. The significantly improved performance, convenient replacement process, rich interface configuration, flexible calibration method, convenient parameter setting and system backup, as well as more powerful weighing display, constant value control, weight inspection and sorting, and flow monitoring functions, will surely bring you a more efficient and faster experience.
IND331 Control InstrumentPerformance characteristics
OLED display screen, 4 buttons
Optional installation methods: The instrument module and front panel can be installed together or separately up to 18m in length
Punching with impact drill, easy to install
The front panel can achieve IP65 protection level
The instrument housing can achieve IP20 protection level
When installing separately, the instrument module can be fixed on a 35mm standard DIN rail
SD Memory Card slot
Pluggable terminal block
SD memory card can perform parameter backup and recovery
IND331 Control Instrument Product Specification
Connectable analog scale platform
85~264VAC or 18~36VDC power supply mode
Rich interface configuration
Serial port - RS-232 (standard) and RS-232485 (optional)
PLC -4~20mA analog output A-B RIO ™ PROFIBUS ® DP DeviceNet ™ Modbus TCP EtherNetIP ControlNet ™
Discrete input/output port
2 I 4 O
Relay output - can directly control high-voltage equipment without external devices
Solid state output - OC gate type
Optimal constant value control
Independent parallel output, lockable
3 independent comparators
Comparison of weight and speed at high speeds
Performance enhancement
Ultra fast AD conversion rate (366 Hz), weight comparison rate (50 Hz), and PLC update rate (20 Hz)
TraxDSP digital filtering patented technology
Maximum display division of 100000D
Effectively improve work efficiency
Can choose SD memory card
Backup and restore settings and calibration parameters
Easy to carry and set up multiple instruments
More calibration options
Remote calibration through PLC
Calibration of large capacity storage tanks can be achieved through the gradual substitution method
CalFREE ® calibration free technology
Traditional weight calibration
Easy to maintain
Modular design for easy loading and unloading
LED indicator light prompts error message
TraxEMT ™ self diagnostic function
Serial port and discrete input-output detection
Metrological certification
NTEP, Class IIIIIIL 10,000d Coc 09-051
OIML, Class III 6,000e (R782006-NL 1-09.26)
Europe, Class III 6,000e (TC7600)
Canada Class IIIIIIHD 10000d (under certification)
Installation dimensions of IND331 control instrument
IND331 control instrument complete specifications and models
Panel style
33P1-00000-000-000 33P1-0000B-000-000
33P1-00000-D00-000 33P1-00000-B00-000
33P1-00000-A00-000 33P1-00000-P00-000
Dustproof type
33H1-00000-000-J00 33H1-00000-D00-J00
33H1-00000-B00-J00 33H1-00000-A00-J00
33H1-00000-P00-J00
Extended Reading
Brand Introduction
METTLER TOLEDO, as a leading global manufacturer of precision instruments and scales, has maintained technological and market leadership throughout its century long development history. Nowadays, the solutions provided by Mettler Toledo cover various processes and links in the laboratory, industrial, and retail (commercial) industries. From high-precision microanalysis to weighing applications of over a thousand tons, Mettler Toledo's unified team, global service network, and perfect solutions help global users improve efficiency, create value, and easily cope with various challenges.
Working principle of control instruments
The working principle of a weighing instrument is to use a weighing sensor (which can be a mechanical strain gauge or stress type, or even a composite type) to detect weight. Generally, it is a three-point or four point sensor. The output signal of the sensor is connected to a nearby junction box, and the total weight signal output from the box is remotely transmitted to the receiving instrument. The important thing here is that the signal of the sensor is not a standard signal, and the required cable requirements are also special. It should be provided by the weighing instrument manufacturer or purchased and connected according to their requirements. Otherwise, inaccurate phenomena may occur Another factor that affects accuracy is the influence of external environment, such as wind speed, rain and snow. If there is a soft connection between the heavy object and the pipeline, the connection effect will also affect the measurement accuracy
