1、 Introduction to Tedia 1510 Load Cell in the United States
Product brand: Tedea, USA
Product series: 1510
Product type: Single point weighing sensor
Product distribution: Guangzhou Zhongxin Automation Technology Co., Ltd
Product range: 100kg, 250kg, 500kg
Product Introduction:
(1) The 1510 model is a high-precision single point weighing sensor that is very suitable for industrial applications with regular flushing, typically for platform, wall scale, and other process weighing applications in the food industry.
(2) The fully welded structure of 1510 and polyurethane double shielded cable are sealed and moisture-proof, allowing for continuous operation in harsh environments while maintaining high operating specifications.
(3) The other two induction lines provide feedback on the voltage reaching the weighing sensor. By inputting this voltage into an appropriate electronic device, it is possible to fully compensate for changes in lead resistance caused by temperature changes and/or cable extension.
Product features:
(1) Capacity range: 100-500 kg
(2) Stainless steel structure
(3) Single point 600 x 600mm platform
(4) OIML R60 and NTEP approval
(5) IP68 protection level
(6) Optional: ① EEx ia IIC T6 hazardous area certification; ② Can obtain FM certification; ③ Platform size is 600 x 800 mm
Product application:
(1) Food industry platform
(2) Marine and mixed scales
(3) Process weighing hopper
(4) Harsh environment
2、 Tedia 1510 weighing sensor optional range in the United States
1510-100kg
1510-250kg
1510-500kg

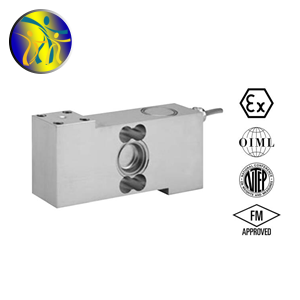

3、 Real photo of Tedia 1510 weighing sensor in the United States

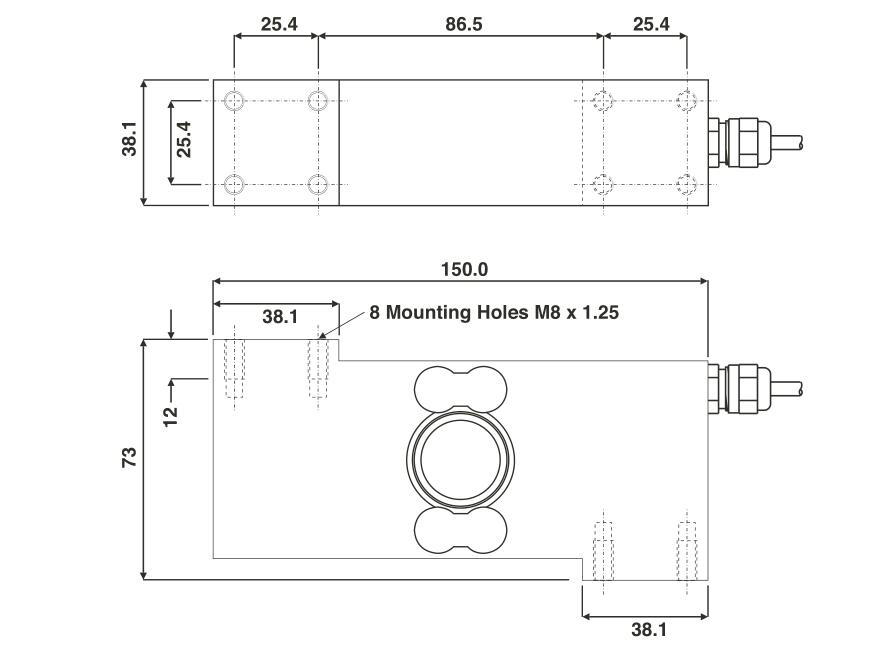

4、 Dimensions of Tedia 1510 weighing sensor products in the United States

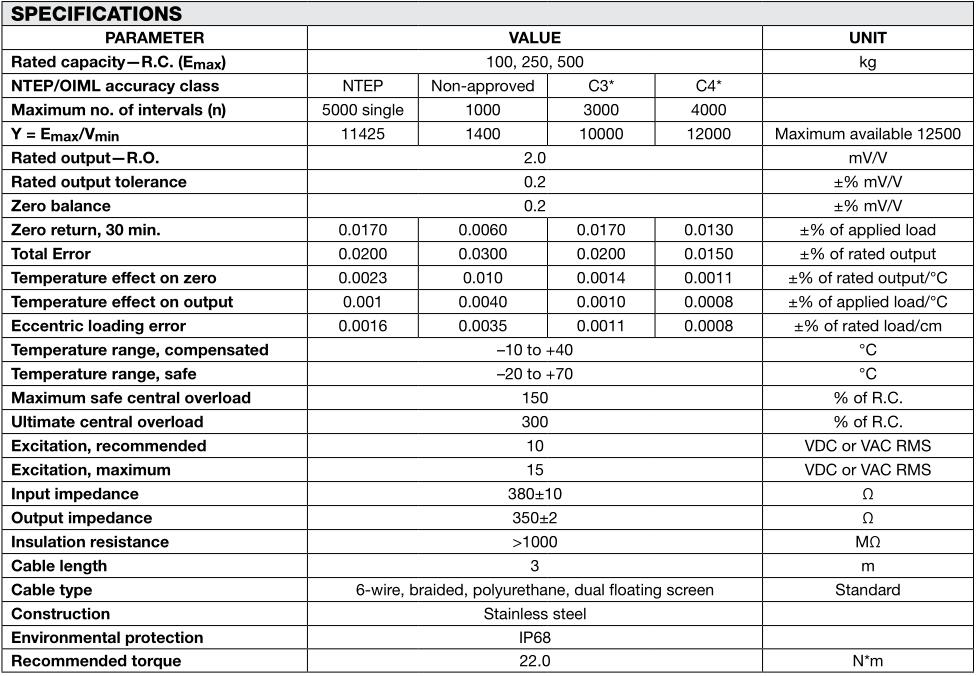

5、 Technical parameters of Tedia 1510 weighing sensor in the United States
