CI-150A Weighing Instrument Korean Kaisi CI-150A Industrial Indicator

1、 CI-150A Weighing Instrument Product Introduction

Product brand:Korean Kaishi　CAS

Product Series: CI-150A

Product Type: Weighing Instrument, Industrial Indicator

Brand Agent: Guangzhou Zhongxin Automation Technology Co., Ltd

Product Introduction: With high-speed A/D conversion speed and 1/10000 high resolution, it is an industrial indicator that can be quickly controlled and accurately measured in various industrial environments. The compact size provides multiple interfaces in the form of terminal blocks.

Product Features:

(1) Quick control and precise weighing

With a high-speed ADC conversion speed of up to 320 times per second and a high-speed external resolution of 1/10000, you can quickly control and accurately measure.

(2) Compact size& Clear LED display screen

Designed with a compact size of 65 millimeters high, it is convenient for small panel instruments, and the clear LED display screen allows users to easily confirm weight values.

(3) Various interfaces

Provide basic specifications RS-232C and optional RS-485 and analog outputs, 2 external inputs/4 outputs for easy measurement system and control operations.

Product features:

(1) High quality and high-precision industrial indicators

(2) PANEL professional indicator

(3) 6-digit unit weight display (7 segments)

(4) 5 status displays (LED)

(5) RFI/EMI shielding

(6) Watchdog function (system restore)

(7) Weight back up (weight memory during power outage)

Main functions:

(1) Date and time of power outage, statistical data saving function

(2) Diverse specified speed of weight change (digital filter function)

(3) Measurement frequency memory function

(4) Users can freely set the desired maximum weight and overall value

(5) The status of each part of the hardware testing functional circuit can be tested in various modules, and when A/S occurs, it can be quickly processed.

(6) SPAN Calibration can be performed separately

(7) Possible Serial Printer Connection

(8) Built in clock with the ability to measure date and time output (OPTION)

(9) Built in external input/output, various external device controls (OPTION)

-External input 2 contacts

-External output with 4 contacts (zero point, lower limit, upper limit, complete)

(10) Through Analog Out external devices and communication (OPTION)

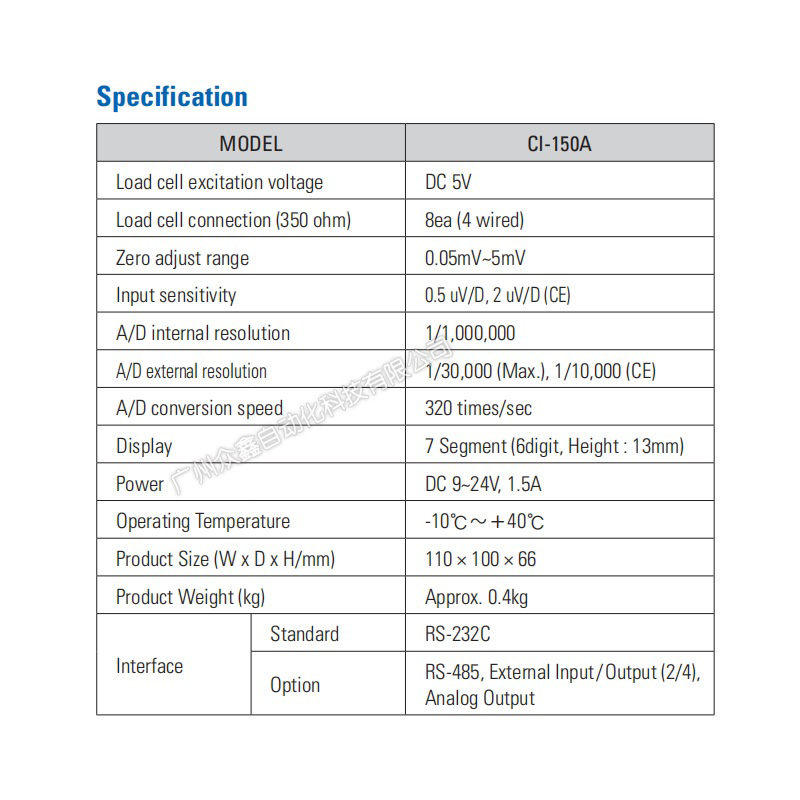

3、 Technical parameters of CI-150A weighing instrument

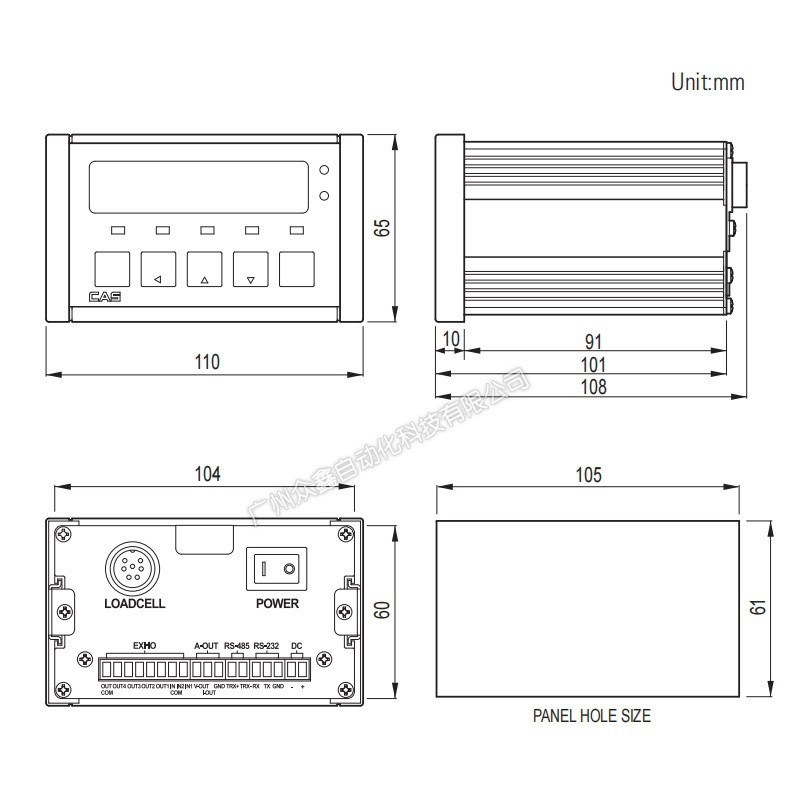

4、 CI-150A weighing instrument product size

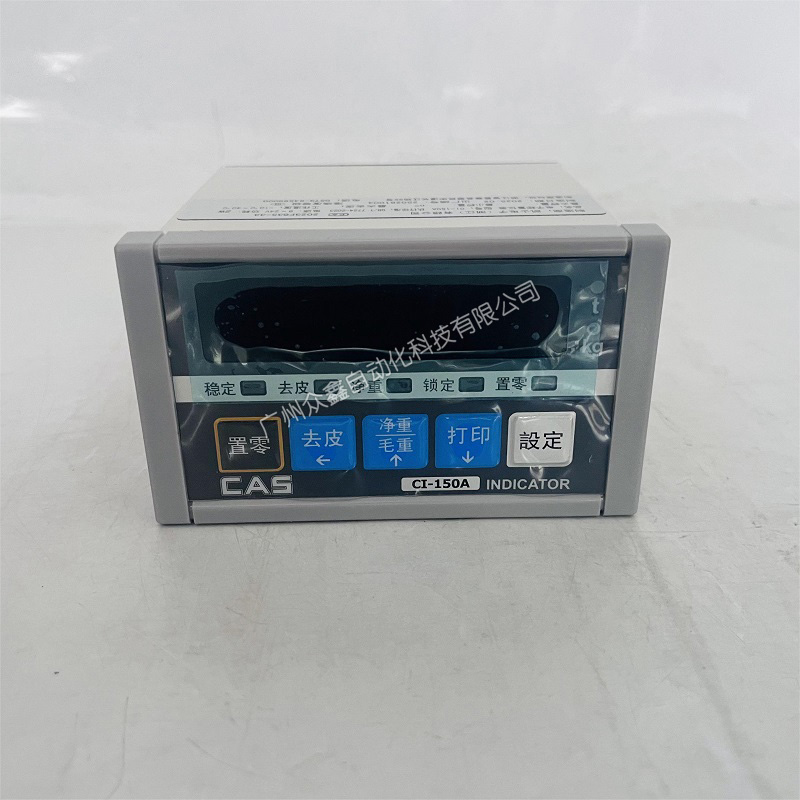

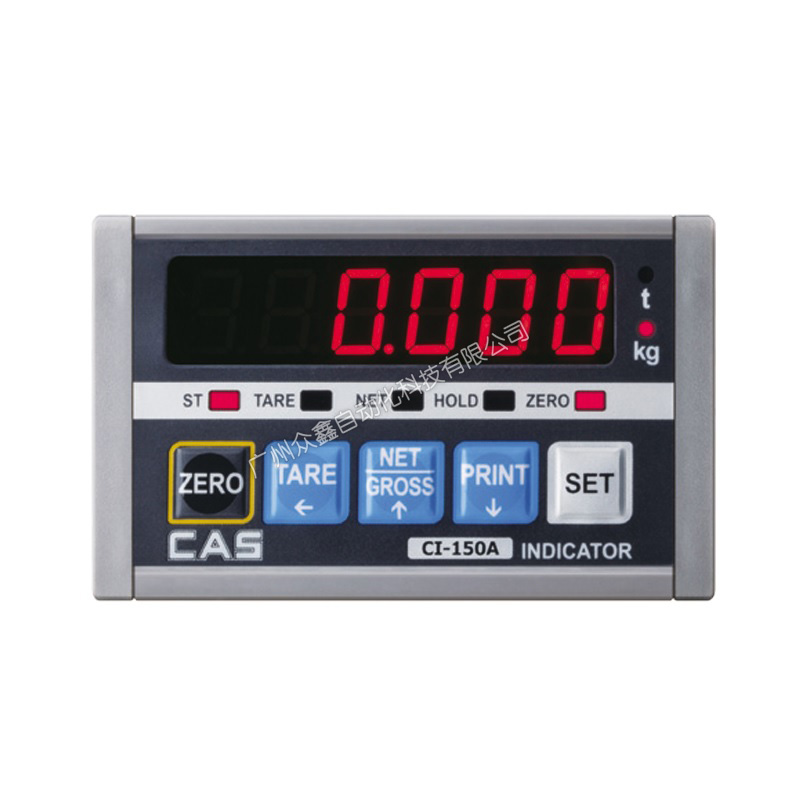

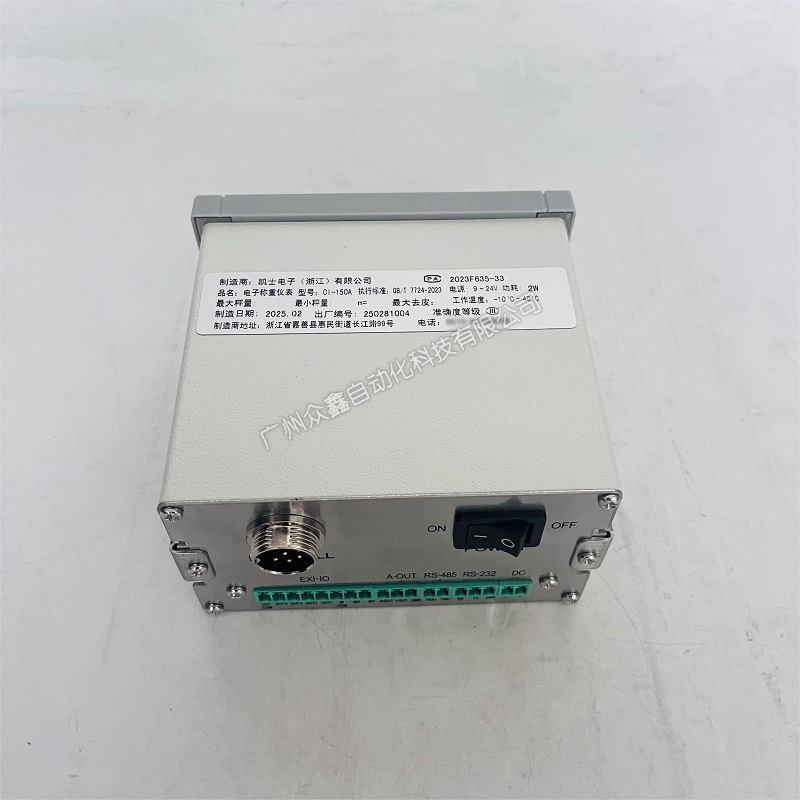

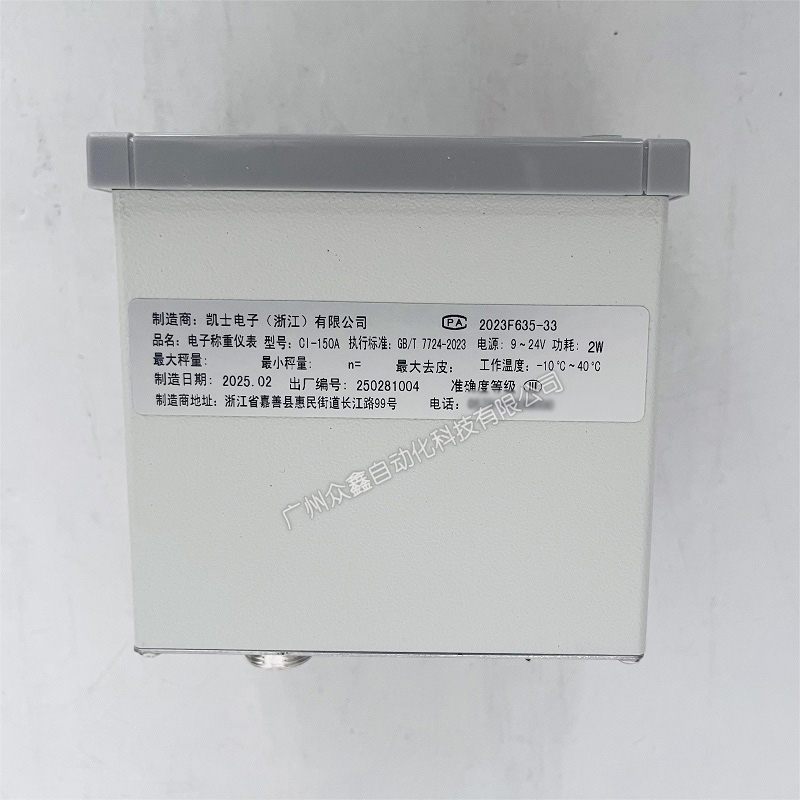

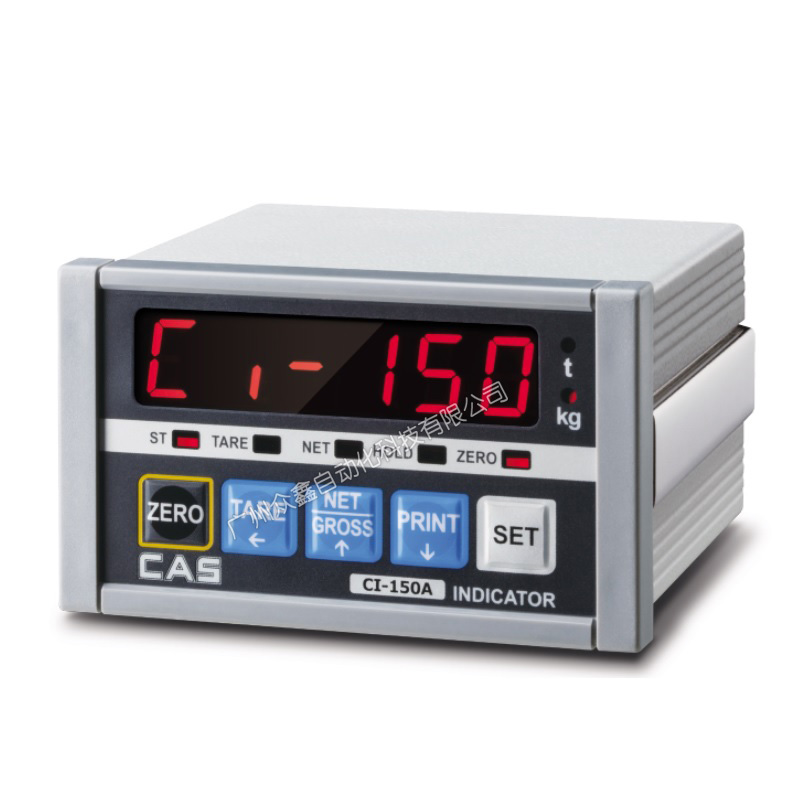

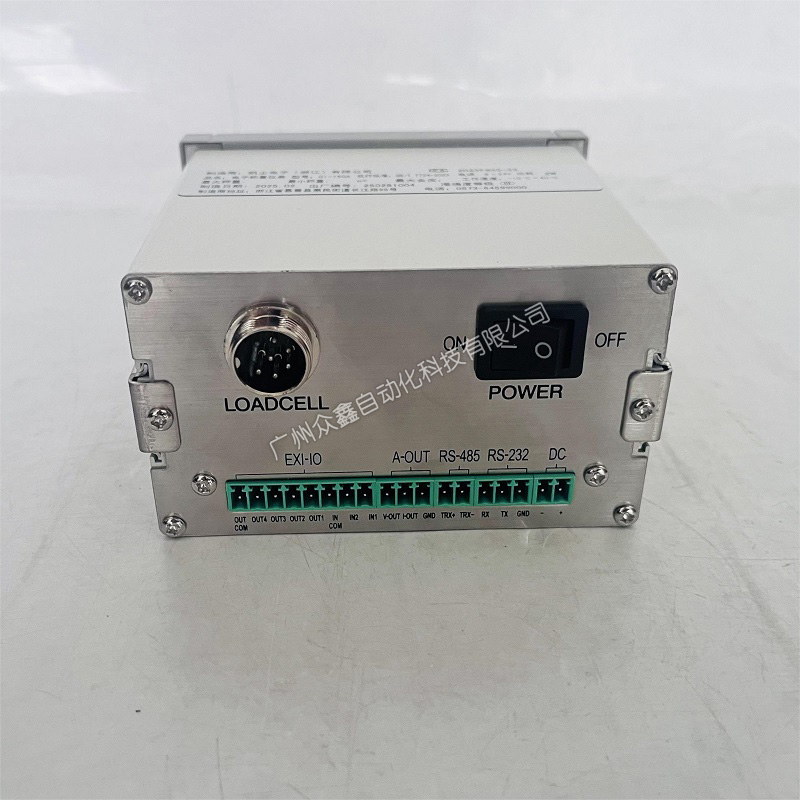

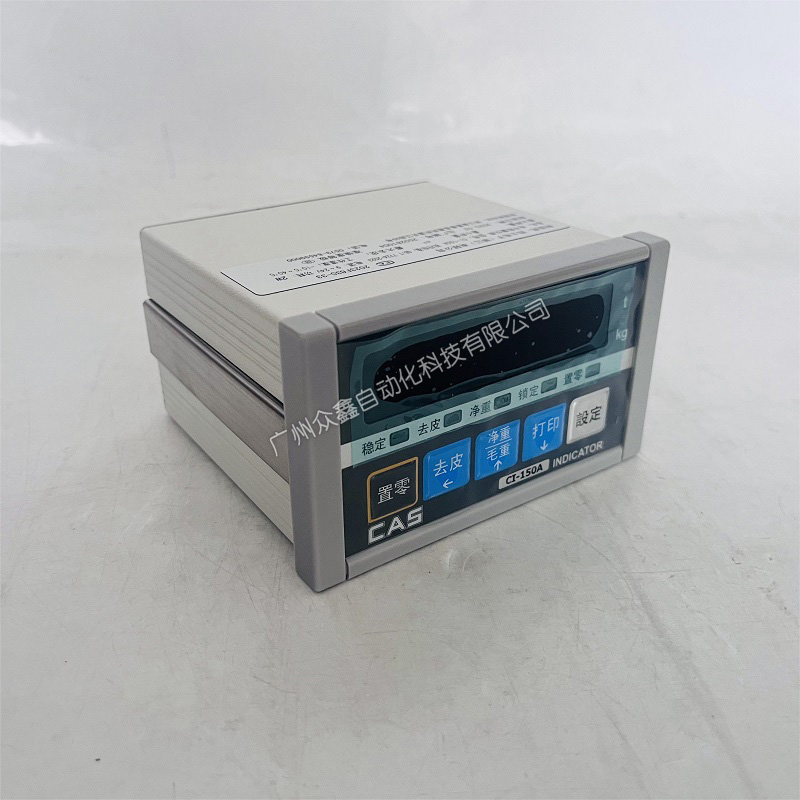

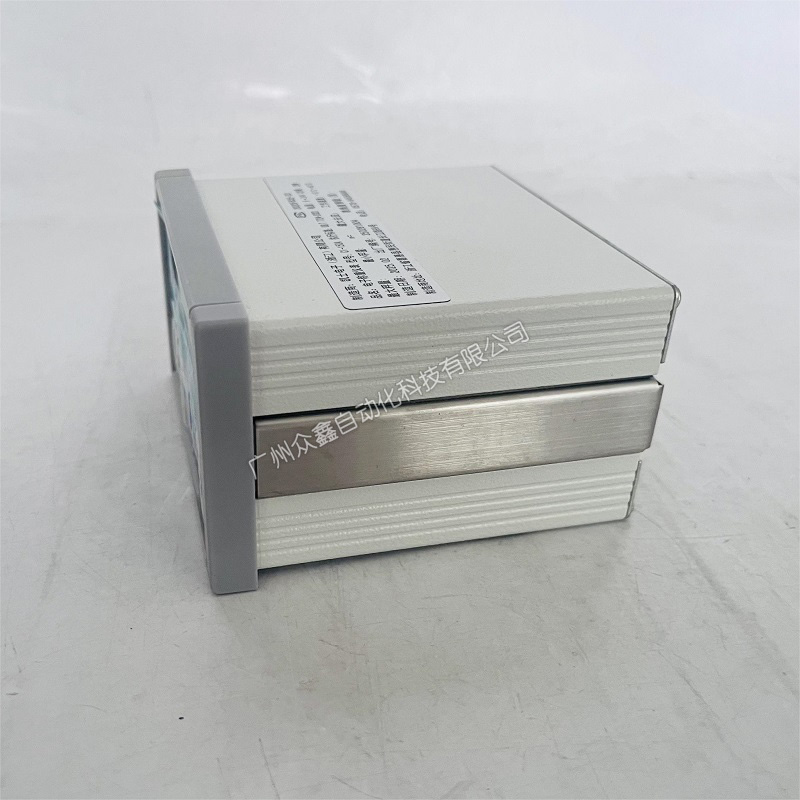

5、 Product image of CI-150A weighing instrument
