CI-1580A Weighing Instrument Korean Kaishi CI-1580A Industrial Indicator

1、 CI-1580A Weighing Instrument Product Introduction

Product brand:Korean Kaishi　CAS

Product Series: CI-1580A

Product Type: Weighing Instrument, Industrial Indicator

Brand Agent: Guangzhou Zhongxin Automation Technology Co., Ltd

Product Introduction

(1) The CI-1580A low-cost industrial indicator is an ideal indicator for platform scale, floor scale, Pacher scale, and Checher scale. Designed with a sturdy structure, it can be used even in harsh industrial environments.

(2) The CI-1580A weight indication control indicator is designed to be most suitable for all instruments in the industry, including packaging machines, weight filters, platform scales, various tensioners, and compression testing equipment. This product comes standard with an RS-232C port, which can communicate with external devices such as computers. In addition, the three relay outputs required for control are basic (limited to RELAY OUT only), making them also convenient for weight control.

Product Features:

(1) Weight Back up (remember weight during power outage)

(2) 200 times/1 second high-speed A/D conversion speed

(3) External input: 2 contacts/External output: 3 contacts

(4) Limited to small panels only

(5) Bright and clear LED display screen

(6) Power supply: DC 12-24V

(7) Purpose: Platform scale Floor scale、Pacher scale、Checher scale

(8) Countermeasures for blocking external noise

(9) Built in self diagnosis and self fault recovery functions

(10) Display accuracy 1/20000

(11) Static data memory function

(12) External input with 2 built-in terminals (zero point, container/container removal)

(13) Data memory function

(14) Using a DC power supply, 24V can be used regardless of the polarity of the input power supply (it is recommended to use Trans type with 500mA or more)

(15) The Fully Automated Collaborative (FAC) Method for Calibration

(16) Calibration's equal force method

(17) Basic installation of RS-232C

(18) Option: RS-422/485 (optional to be provided separately)

(19) Option: I/V-OUT (excluding optional accessories)

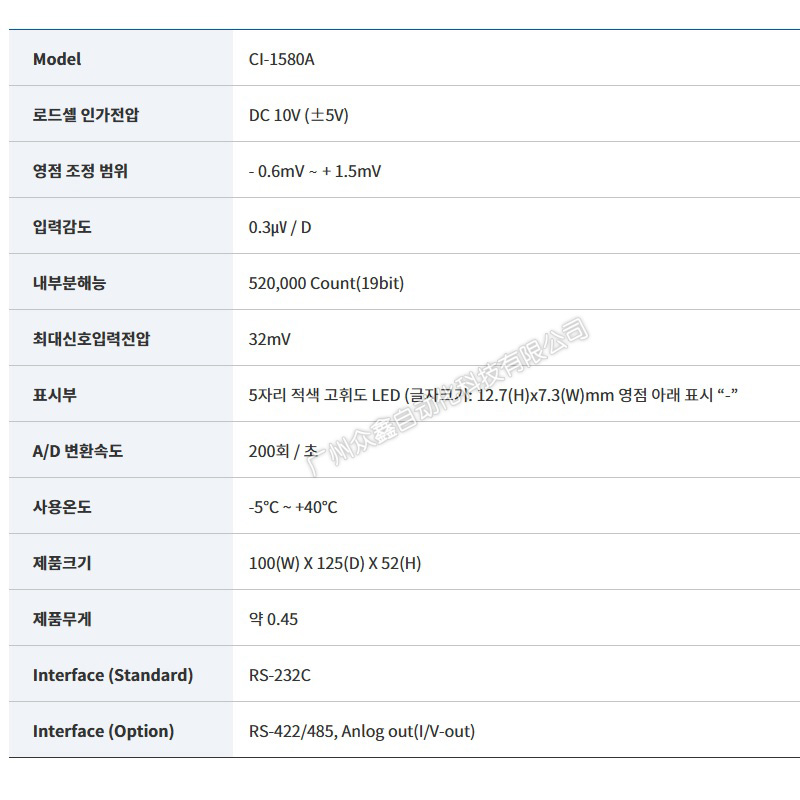

3、 Technical parameters of CI-1580A weighing instrument

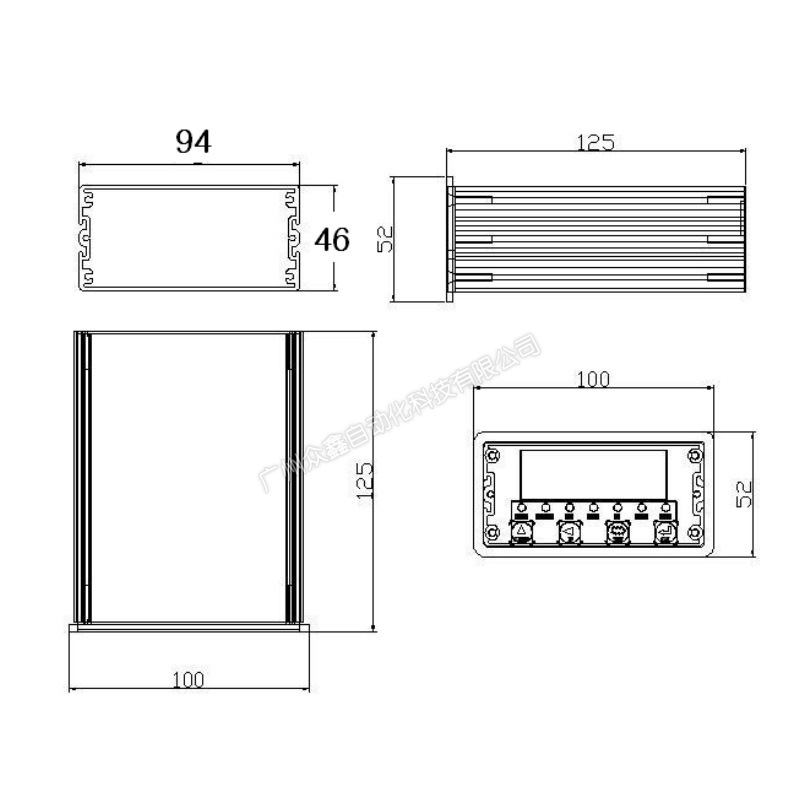

4、 CI-1580A Weighing Instrument Product Dimensions

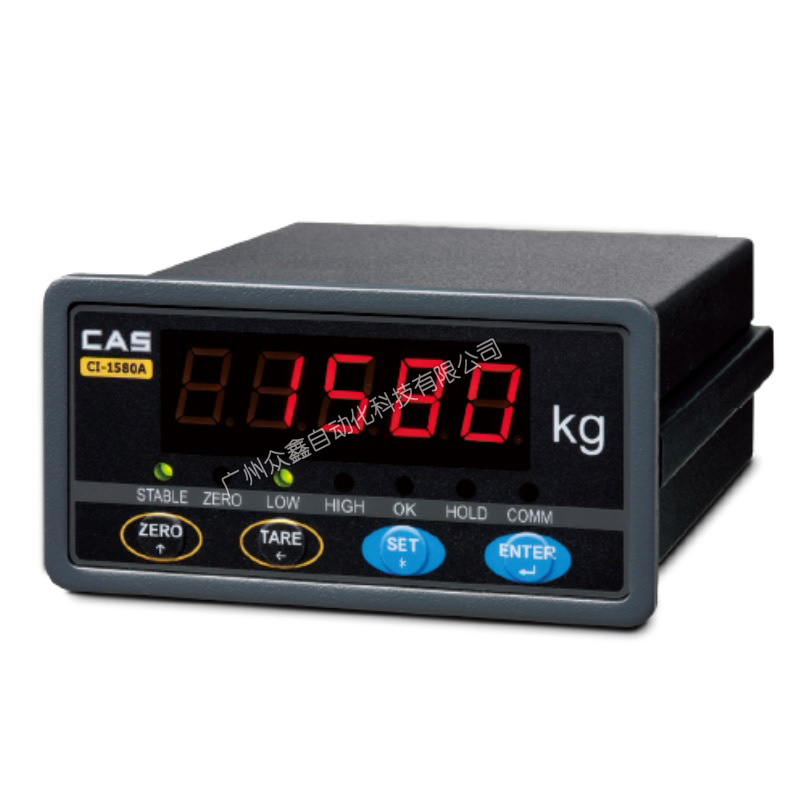

5、 Product picture of CI-1580A weighing instrument
