. ZXM02 Force Display Product Introduction
Product brand: ZXSCELL, USA
Product series: ZXM02
Product type: Force value display
Production suspension notice: The ZXM02 model has been discontinued and is now being replaced by the ZXM-P1 model
Product features:
1. Suitable for all resistance strain bridge weighing sensors
2. Full panel digital calibration, simple process, convenient and intuitive
3. Digital filtering function, automatic zero tracking function
4. Power on automatic reset function
5. Dual isolation serial port function, with RS485 and RS232 for convenient communication with upper computer
6. The weight display can be calibrated through the serial port (the serial port calibration switch is turned on)
7. Multi mode optional interface function: analog output, serial port (optional)
8. AD is a bipolar mode that supports bidirectional forces
9. Suitable for concrete mixing and asphalt mixture equipment, metallurgy and chemical industry, weight control of feed, etc

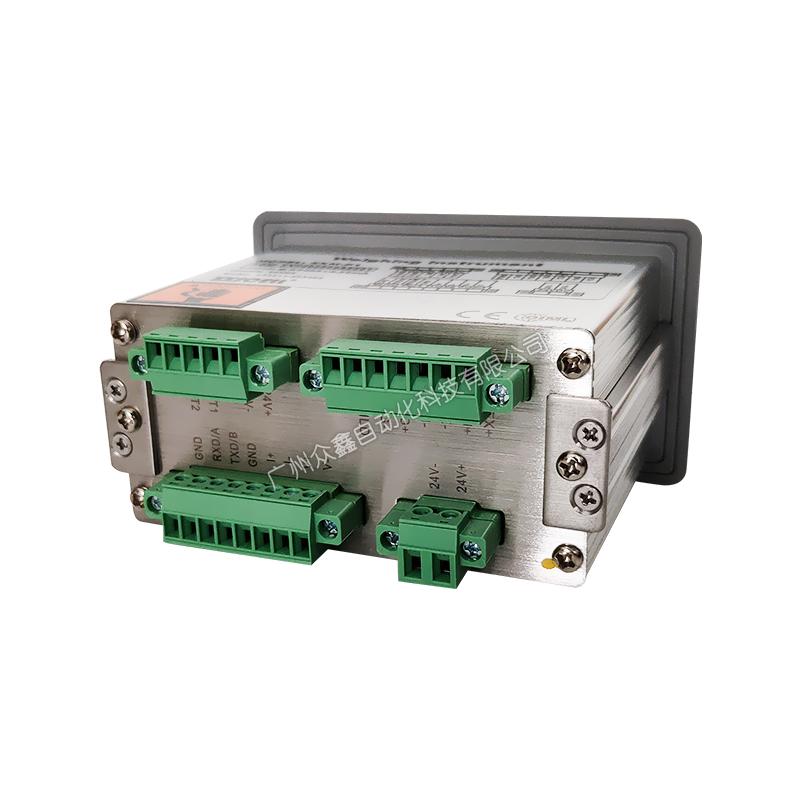

. Actual photo of ZXM02 force display product
. Application of ZXM02 Force Value Display Function
1. RS-232 point-to-point serial communication
(1) Continuous output or command output format
(2) Provide fully compatible protocols for users to quickly upgrade
(3) Support remote zero and tare operations
(4) ESD anti-static interface protection
2. RS-485 multidrop serial communication
(1) Baud 2400~115200bps optional
(2) Communication response time less than 5ms
(3) As a slave station supporting data collection from the master station
(4) Support MODBUS RTU slave protocol
3. Analog output interface
(1) Support multiple analog output formats, 0-10V, 0-5V, 4-20mA, 0-24mA
(2) 16 bit analog output accuracy: 1/32767
(3) The weight can be output as an analog quantity without loading, and the analog quantity can be adjusted on the panel
4. Weighing and measuring
(1) Weight display accuracy: 100~100000 optional
(2) AD is a bipolar mode that supports bidirectional forces, and multiple data filtering options are available to meet the needs of different dynamic/static applications
(3) Keyboard or remote reset, tare operation and calibration
(4) Upper and lower limit alarm output, covering peak and valley value maintenance
. ZXM02 Force Value Display Product Parameters
