121-10000KG sensor, Tedia 121-10000KG weighing sensor, USA

Introduction to the Original Installation of TEDEA Tedea Load Cell 121-10000KG Sensors in the United States

Tedea Huntleigh 121
Product brand: Tedea Load Cell, USA, Tedea Load cell
Product characteristics:Column Load Cell
Metal welding seal
Comprehensive accuracy: 0.02%
Protection level: IP68
Material: Steel shell, alloy plated steel,
Line length: 15m 6W
Rated output: 1.5mV/V± 0.1%
Comprehensive error: 0.050&flash; 0.020%
Input impedance: 670± 10Ω
Output impedance: 605± 5Ω
Safety overload: 150%
Maximum excitation voltage: 24V
Protection level: IP68
Cable: 15m 6-core PVC
Range: 3t, 5t, 10t, 20t, 30t, 50t
-Applications: automotive scales, track scales, axle load gauges, batching scales, drum slot metering, and other fields

TEDEA Tedea Load Cell, USA121-10000KGSensor size

TEDEA Tedea Load Cell, USA121-10000KGsensorPrecautions for use:

The replacement and related operations of internal circuit boards and other parts must be carried out by professional engineers or technicians
Before opening the shell cover, ensure that the equipment is powered off for at least 10 minutes The opening of the shell cover must be carried out by professional engineers or technicians
The explosion-proof type must be transferred to a safe area for maintenance, disassembly, and reassembly
The converter circuit board assembly contains sensitive components that may be damaged by static electricity Be careful to avoid direct contact with electronic components or circuit patterns on the circuit board, and take corresponding anti-static measures if necessary

TEDEA Tedea Load Cell, USA121-10000KGSensor technical parameters

TEDEA Tedea Load Cell, USA121-10000KGsensorHot selling models

121 series

121-3t, 121-5t, 121-10t, 121-20t, 121-30t, 121-50t.

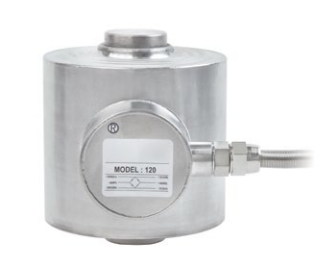

TEDEA Tedea Load Cell, USA121-10000KGActual sensor image
