1、 Introduction to Tedia 1430-23lbs Load Cell in the United States
Product brand: Tedea, USA
Product series: 1430
Product type: weighing sensor
Product distribution: Guangzhou Zhongxin Automation Technology Co., Ltd
Product range: 3kg, 17lbs, 23lbs
Product Introduction:
(1) The unique design of 1430 can reduce the weighing error caused by the dynamic force of rotating liquid filling. When operating at a speed of 0 to 13 rpm within a radius of 1 meter at the installation location, 1430 can provide high weighing accuracy.
(2) The sealed stainless steel structure of Type 1430 provides safe operation in corrosive or strong flushing environments. The sturdy structure provides significant overload protection for the weighing shaft and side loads.
Lateral loads, such as those occurring in a 300 kg bottle blockage, have been applied to units without significant zero variation.
(3) 1430 has adjustable viscous damping, which can shorten stability time and accelerate machine operation cycle.
Product features:
(1) Capacity: 3 kilograms, 17 pounds, 23 pounds
(2) Stainless steel structure
(3) Not sensitive to rotational power
(4) Single point performance
(5) At a speed of 13 revolutions per minute at a radius of 1 meter
(6) Seal flushing configuration
Product application:
(1) Rotary filling machine
2、 American Tedia 1430-23lbs weighing sensor optional range
1430-3kg
1430-17lbs
1430-23lbs
3、 Picture of 1430-23lbs load cell from Tedia, USA

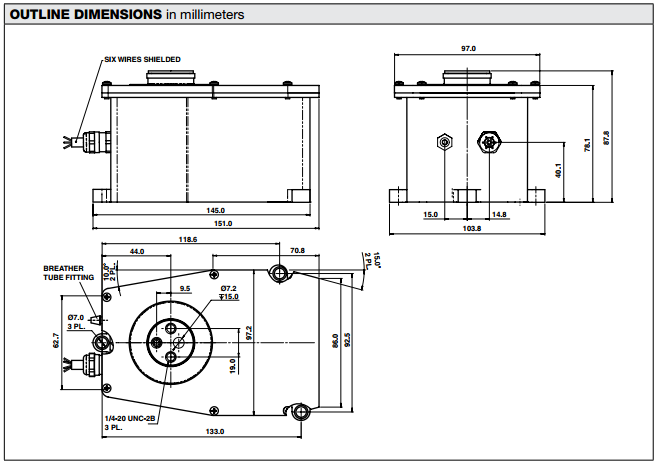

4、 Tedia 1430-23lbs weighing sensor product dimensions in the United States

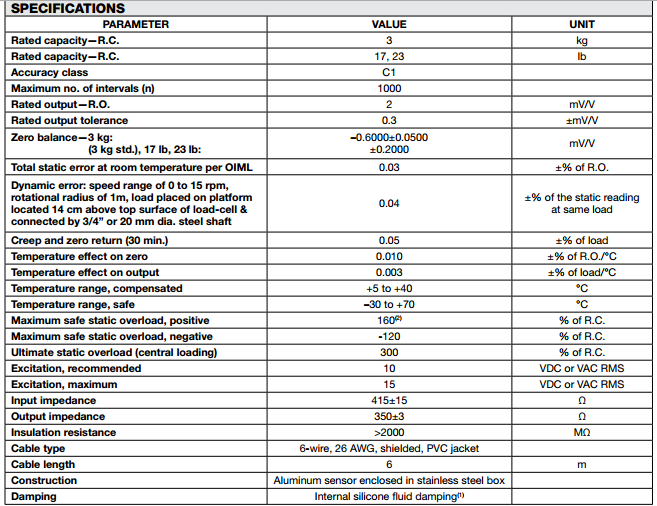

5、 Technical parameters of Tedia 1430-23lbs weighing sensor in the United States
