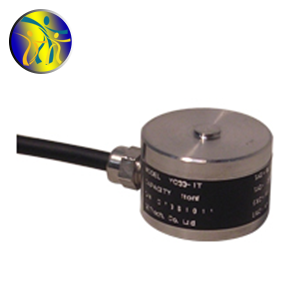

[Shitai YC-33 Sensor] YC-33-1kgf~YC-33-200kgf_ South Korean SETech weighing sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of South Korean Setech YC-33Weighing sensor，[Shitai YC-33 Sensor] YC-33-1kgf~YC-33-200kgf_ South Korean SETech weighing sensorEnsure fast delivery time, 100% original and authentic products, and strive to become the top brand of sensor sales in China. South Korea Setech YC-33 series weighing sensor related models: YC-33-1kgf, YC-33-2kgf, YC-33-5kff, YC-33-10kff, YC-33-20kff, YC-33-50kgf, YC-33-100kgf, YC-33-200kgf,
　
South Korea Setech sensoryesOne of our company's key competitive products, with absolute competitive prices, in stock, original, authentic, and reliable! Ensure satisfactory price and quality!We solemnly promise: "Within three months, if there are any quality issues, we will unconditionally return or exchange the goods, refund the full payment, and charge no fees.". 1 year warranty, ready for repair at any time!

Precision 0.5%
This model is compact and suitable for use in situations with small device space and high capacity requirements.
The top of this model is the load-bearing part, and the bottom must be placed on a flat and smooth surface
We can ensure that your choice is the best one.
★ Testing and load measurement system
★ Other aspects of load measurement
　
Specification parameters of South Korean Setech (YC-33)

Range: 1kgf~200kgf Temperature compensation range -20 ℃~60 ℃
Output 1mv/v ± 1% safe temperature range -20 ℃~70 ℃
Temperature effect of 0.05% R.O/10 ℃ on non linearity at 0.5% R.O 0 equilibrium
Temperature effect on hysteresis 0.5% R.O output 0.02% Load10 ℃
Repetitive 0.5% R.O allows for a voltage of 5V DC
Input impedance 350 ± 3 Ω Safety load 150% R.C
Output impedance 350 ± 3.5 Ω Cable Ø 3Shield 3m
Insulation resistance 2000M Ω
　
　
Expand reading

Weighing ModuleInstallation instructions
　
Mechanical installation　
If necessary, shims can be used to adjust the force evenly on each sensor.
The top and bottom plates of the weighing module must be adjusted in a straight line to maintain the vertical direction of the force acting on the sensor.
When welding near the weighing module, be sure to pay attention to grounding, otherwise the welding current will pass through the sensor and cause damage.
The basic requirements are horizontal and have good rigidity, and there is a small difference in the required levelness between the foundations.
Be sure to tighten the support bolts of the weighing module during installation.
The weighing module must be installed in a convenient maintenance location.
　
Connection

All connections should use shielded insulated cables.
Electromagnetic interference can affect the output signal of sensors, causing weighing errors.
Isolate the power cord and sensor cable.
The junction box should be protected from moisture and corrosive substances.
Cables can be fitted with sleeves to prevent mechanical damage or erosion by damp or corrosive substances.
Do not arbitrarily change the length of the sensor cable, as this will change the output impedance of the sensor.
It is recommended to choose the recommended length and size of the connecting cable between the junction box and the weighing instrument, otherwise it may cause signal loss.
　
Preparation work before calibration　
Install brackets on the tank body for hanging weights. The spacing between each bracket should be equal.
Before calibration, the output signal of each sensor should be tested to determine whether the force is evenly distributed to each sensor.
If necessary, the level of the module can be adjusted with a gasket or the potentiometer of the junction box can be adjusted to ensure that the output of each sensor is consistent



The above is[Shitai YC-33 Sensor] YC-33-1kgf~YC-33-200kgf_ South Korean SETech weighing sensorDetailed information, if you are interested in[Shitai YC-33 Sensor] YC-33-1kgf~YC-33-200kgf_ South Korean SETech weighing sensorIf you have any questions about the price, delivery time, model, or inventory, please feel free to call us18520271262obtain[Shitai YC-33 Sensor] YC-33-1kgf~YC-33-200kgf_ South Korean SETech weighing sensorLatest price details for.
