CBE1-10kg~CBE1-200kg in Minebea, Japan_ Japan Minebea Load Cell

　　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　
Guangzhou Zhongxin Automation Technology Co., Ltd. specializes in supplying the MINEBEA CBE1 series in JapanLoad Cell，CBE1 sensor: CBE1-10kg~CBE1-200kg_ Japan Minebea weighing sensors ensure fast delivery time, 100% original and genuine products, striving to become the top brand for sensor sales in China. Japanese Minebea BCL series load cell related models: CBE1-10kg, CBE1-20kg, CBE1-50kg, CMM1-100kgf, CBE1-200kg
　
The MINEBEA CBE1 sensor from Japan is one of our company's key competitive products, with an absolute advantage in price. It is available in stock, original, authentic, and reliable! Ensure satisfactory price and quality!We solemnly promise: "Within three months, if there are any quality issues, we will unconditionally return or exchange the goods, refund the full payment, and do not charge any fees. 1 year warranty, ready for repair!

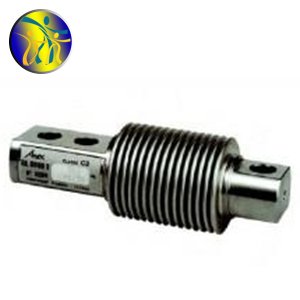

Introduction to the Minebea CBE1 Series in Japan
Product brand:Japan Minebea Load Cell
Product abbreviation: Japan CBE1 weighing sensor
Product model: CBE1
Product characteristics:Bellows weighing sensor
Product principle: Resistance strain gauge
Optional range: 10kg~200kg
Application scope: electronic scales, commodity scales, platform scales, hopper scales

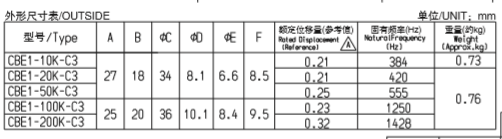

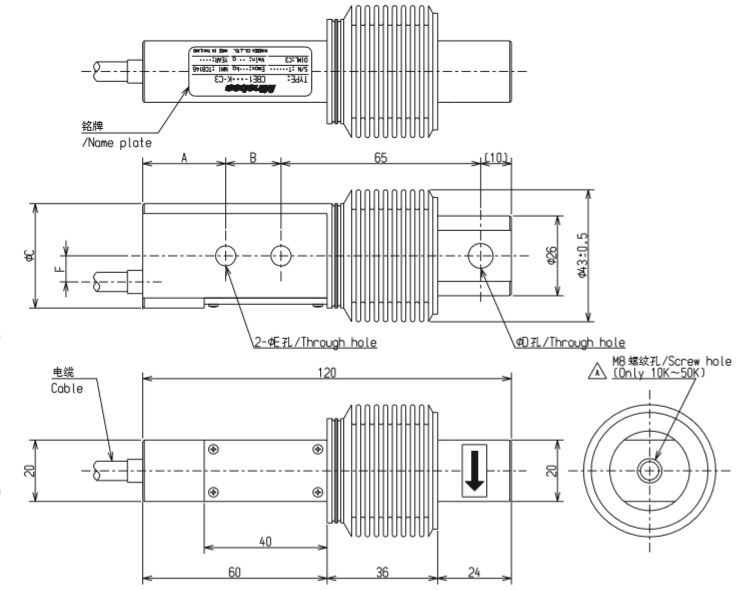

Appearance dimensions of the Japanese MINEBEA (CBE1) CBE1 series

　
Specifications and parameters of the Japanese MINEBEA (CBE1) CBE1 series

　
Complete model of the Japanese MINEBEA (CMM1) CMM1 series
Japan MINIBEA (CMM1) CMM1-10kg load cell with a range of 10kg
Japan MINIBEA (CMM1) CMM1-20kg weighing sensor with a range of 20kg
Japan MINIBEA (CMM1) CMM1-50kg load cell with a range of 50kg
Japan MINIBEA (CMM1) CMM1-100kg load cell with a range of 100kg
Japan MINIBEA (CMM1) CMM1-200kg load cell with a range of 200kg
　
　
Extended Reading
Performance indicators of weighing sensors
The performance of a weighing system can be measured by indicators such as linearity, hysteresis, repeatability, and creep.
Linear:Indicates the consistency between the actual output of the system and the theoretical straight line. As shown in the figure, when linear errors occur, the output of the system is correct at no load and full load, but the input-output points between these two points are inconsistent with the ideal state. Linear error is the maximum difference between the theoretical straight line and the actual output curve.
Lag:Indicates the degree to which the input-output curve of the system does not coincide during loading and unloading.
Repeatability:Indicates the degree of inconsistency in the system's output for several consecutive weighing of the same weight during the loading or unloading process. Usually expressed as the percentage of the total output that is the difference between the minimum output and the maximum output of the system under the same loading condition.
Creep:The characteristic of a system that bears a constant weight at a certain temperature, and the output changes over time due to the mechanical deformation of the elastic material of the sensor.
　
Pressure sensorCommon definitions of

Standard pressure: The amount of pressure expressed in atmospheric pressure. What is greater than atmospheric pressure is called positive pressure; Less than atmospheric pressure is called negative pressure.
Differential pressure (pressure difference): The relative difference between two pressures.
Absolute pressure (A): The amount of pressure expressed in absolute vacuum.
Relative pressure (gauge pressure) (G): Compared to standard pressure. Gauge pressure=absolute pressure - atmospheric pressure.
Atmospheric pressure: refers to the pressure generated by gravity on the air column on the Earth's surface. It is related to the altitude, latitude, and meteorological conditions at which it is located. 1 standard atmospheric pressure (1 atm) is equivalent to the pressure of a mercury column at a height of 760mm.
Vacuum: refers to a pressure state below atmospheric pressure. 1Torr=1/760 atmospheric pressure (atm).
Installation Guidelines for Pressure Sensors
　
Before installation, please carefully read the product manual and verify the relevant information of the product.
The sensor should be installed in a ventilated, dry, corrosion-free, and cool place. If installed outdoors, a protective cover should be added to avoid the normal use of the product being affected by sunlight and rain.
Avoid strong impact or hitting during installation.
Connect the wires in the correct way and pay attention to protecting the outgoing wires of the sensor.
When cleaning the pressure interface and pilot hole of the sensor, trichloroethylene or alcohol should be injected into the pilot hole, gently shaken, and the liquid poured out multiple times.
It is prohibited to use any hard tool to penetrate the pressure hole to avoid damaging the sensitive core.



The above are [CBE1 sensor] CBE1-10kg~CBE1-200kg_ Detailed information of the Japanese Minebea weighing sensor, if you are interested in the CBE1 sensor, CBE1-10kg~CBE1-200kg_ If you have any questions about the price, delivery time, model, and inventory of Minebea weighing sensors in Japan, please feel free to call18520271262Obtain [CBE1 sensor] CBE1-10kg~CBE1-200kg_ Latest price details for Minebea weighing sensors in Japan.
