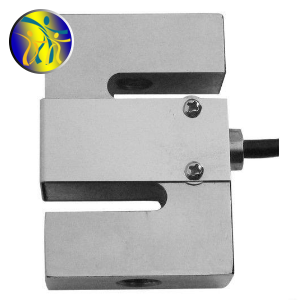

Guangzhou Zhongxin Automation Technology Co., Ltd. specializes in supplying ZXEE-50kg~ZXEE-7T American ZX pull-type S-type weighing sensors. The ZXEE series weighing sensors ensure fast delivery, 100% original and authentic products, and 10 years of industry experience, focusing on high-end and high-quality sensor services, providing complete automation solutions. ZXEE-50kg~ZXEE-7T American ZX pull type S-type weighing sensor related models: ZXEE-50kg, ZXEE-100kg, ZXEE-150kg, ZXEE-200kg, ZXEE-250kg, ZXEE-300kg, ZXEE-500kg, ZXEE-750kg, ZXEE-1t, ZXEE-1.2t, ZXEE-1.5t, ZXEE-2t, ZXEE-3t, ZXEE-5t, ZXEE-7t.
Introduction to ZXEE series weighing sensors
English name:
US Zxscell
Product features:
Material options: alloy steel, stainless steel
Protection level: IP65, IP68
Optional range: 50kg~7t
Mainly used in hook scales, belt scales, and batching systems, the material can be stainless steel
Technical specifications of ZXEE series weighing sensors
|
Technical parameter | 4Wires Exc+(Red); Exc - (Black); Sig+(Green); Sig - (White) |
| Rated load: |
50，100，150，200，250，300，500，750kg，1t，1.5t，2t，3t，5t，7.5t |
Insulation resistance: |
≥5000MΩ |
| Accuracy level: |
0.03 |
Rated temperature: |
-10_+40℃ |
| Sensitivity: |
2.0±0.003mv/v |
Working temperature range: |
-30_+70℃ |
| Linear error: |
±0.03%F.S |
Safe load: |
150% F.S |
| Lag error: |
±0.03%F.S |
Destruction load: |
200% F.S |
| Creep (30 minutes): |
±0.03%F.S |
Rated excitation voltage: |
10-12V DC |
| Zero temperature effect: |
±0.02%F.S/10℃ |
Sealing level: |
IP67 |
| Sensitivity temperature effect: |
±0.02%F.S/10℃ |
Material: |
alloy steel |
| Input impedance: |
400±20Ω |
Stainless steel |
| Output impedance: |
352±5Ω |
Cable: |
3m |
Dimensions of ZXEE series weighing sensor products
|
Rated load |
A |
B |
C |
D |
|
50_750kg |
51 |
76.2 |
19.1 |
M12 |
|
1t |
51 |
76.2 |
25.4 |
M12 |
|
15_5t |
76.2 |
100.4 |
31.8 |
M20*1.5 |
As shown in the following figure:
The above ZXEE-50kg~ZXEE-7T American ZX pull type S-type weighing sensors provide detailed information. If you have any questions about the price, delivery time, model, or inventory of ZXEE-50kg~ZXEE-7T American ZX pull type S-type weighing sensors, please feel free to call us
18520271262 Obtain the latest price details for ZXEE-50kg~ZXEE-7T American ZX pull type S-type weighing sensors.
Sales Engineer - Miss Chen
