Guangzhou Zhongxin Automation Technology Co., Ltd. specializes in supplying the ZXEC series American ZX single point weighing sensors, ensuring fast delivery time and 100% authentic original products. With 10 years of industry experience, we focus on high-end and high-quality sensor services and provide complete automation solutions. ZXEC series American ZX single point weighing sensor related models: ZXEC-200kg, ZXEC-300kg, ZXEC-500kg, ZXEC-800kg, ZXEC-1t

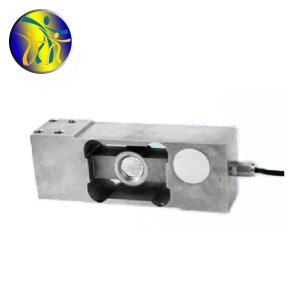

Introduction to ZXEC series weighing sensors
★ Strong anti bias load ability
★. Fully welded and sealed, with high protection level
★ ZXEC functions: high temperature, low temperature, dustproof, moisture-proof.
★ The ZXEC-A series is suitable for platform scales, packaging scales, etc.
★. Range options: 200kg, 300kg, 500kg, 800kg, 1t
Dimensions of ZXEC series weighing sensor products
Technical specifications of ZXEC series weighing sensors
| Technical parameter | 4Wires Exc+(Red); Exc - (Black); Sig+(Green); Sig - (White) |
| Rated load: |
200，300，500，800kg,1t |
Insulation resistance: |
≥5000MΩ |
| Accuracy level: |
0.03 |
Rated temperature: |
-10_+40℃ |
| Sensitivity: |
2.0±0.2mv/v |
Work stability range: |
-30_+70℃ |
| Linear error: |
±0.03%F.S |
Safe load: |
150% F.S |
| Lag error: |
±0.03%F.S |
Destruction load: |
200% F.S |
| Creep (30 minutes): |
±0.02%F.S |
Rated excitation voltage: |
10-12V DC |
| Zero temperature effect: |
±0.02%F.S/10℃ |
Sealing level: |
IP67 |
| Sensitivity temperature effect: |
±0.02%F.S/10℃ |
Material: |
Stainless steel |
| Input impedance: |
400±20Ω |
Cable: |
1.5m |
| Output impedance: |
352±5Ω |
Maximum platform size: |
600*600mm |
The above ZXEC-200kg~ZXEC-1t American ZX single point weighing sensors provide detailed information. If you have any questions about the price, delivery time, model, or inventory of ZXEC-200kg~ZXEC-1t American ZX single point weighing sensors, please call 18520271262 to obtain the latest price details of ZXEC-200kg~ZXEC-1t American ZX single point weighing sensors.
