【 65058 Sensor 】 65058-10K~65058-225K_ Sensors (STS) load cells in the United States

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　

Guangzhou Zhongxin Automation Technology Co., Ltd. specializes in supplying the US Sensortronics (STS) 65058 seriesLoad Cell, [65058 sensor] 65058-10K~65058-225K_ Sensortronics (STS) weighing sensors from the United States guarantee fast delivery time, 100% genuine, and strive to become the top brand for sensor sales in China. Sensors (STS) 65058 series load cell models in the United States: 65058-10k, 65058-15k, 65058-20k, 65058-25k, 65058-50k, 65058-60k, 65058-75k, 65058-100k, 65058-125k, 65058-250k, 65058-200k, 65058-225k.

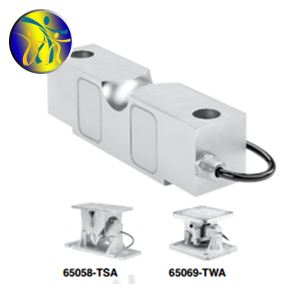

Introduction to Sensortronics (STS) 65058 Series Products in the United States
Product brand: Sensortronics weighing sensor in the United States
Brand abbreviation:American STS weighing sensor
Product characteristics: shear beam type weighing sensor
Protection level: IP67 standard
Design for single or multiple loading unit applications
High quality alloy tool steel structure, nickel plated and corrosion-resistant nickel
Stainless steel optional, stainless steel version model is 65058S
Precautions: Use in harsh environments and operate in a standardized manner.
Range: 10K~225K
Application scope: Large scale, truck scale, and ground scale

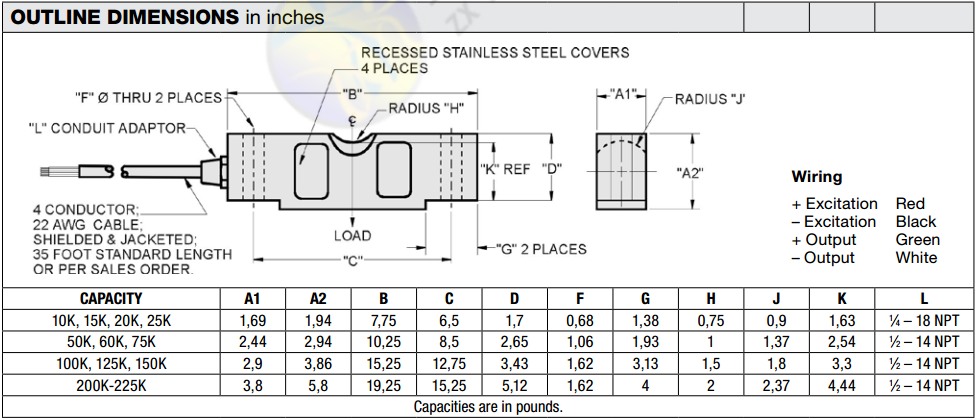

Installation dimensions of Sensortronics (STS) 65058 series in the United States

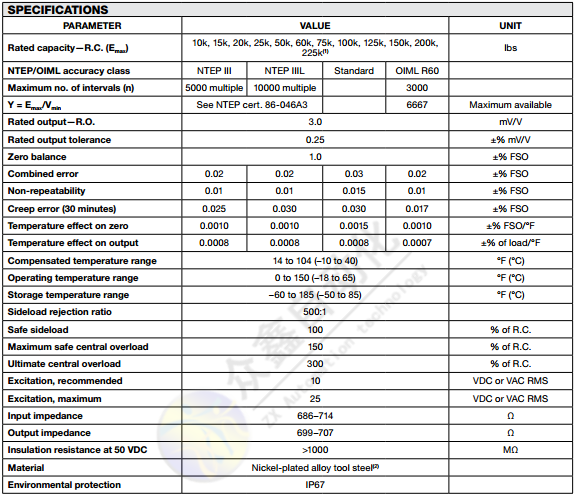

US Sensortronics (STS) 65058 series technical specifications


The complete model of the US Sensors (STS) 65058 series sensor
Vishay Sensors (STS) 65058-10klbs Load Cell
Vishay Sensors (STS) 65058-15klbs Load Cell
Vishay Sensors (STS) 65058-20klbs Load Cell
Vishay Sensors (STS) 65058-25klbs Load Cell
Vishay Sensors (STS) 65058-50klbs Load Cell
Vishay Sensors (STS) 65058-60klbs Load Cell
Vishay Sensors (STS) 65058-75klbs Load Cell
Vishay Sensors (STS) 65058-100klbs Load Cell
Vishay Sensors (STS) 65058-125klbs Load Cell
Vishay Sensors (STS) 65058-150klbs Load Cell
Vishay Sensors (STS) 65058-200klbs Load Cell
Vishay Sensors (STS) 65058-225klbs Load Cell

Extended Reading

Performance indicators of weighing sensors
The performance of a weighing system can be measured by indicators such as linearity, hysteresis, repeatability, and creep.
Linear:Indicates the consistency between the actual output of the system and the theoretical straight line. As shown in the figure, when linear errors occur, the output of the system is correct at no load and full load, but the input-output points between these two points are inconsistent with the ideal state. Linear error is the maximum difference between the theoretical straight line and the actual output curve.
Lag:Indicates the degree to which the input-output curve of the system does not coincide during loading and unloading.
Repeatability:Indicates the degree of inconsistency in the system's output for several consecutive weighing of the same weight during the loading or unloading process. Usually expressed as the percentage of the total output that is the difference between the minimum output and the maximum output of the system under the same loading condition.
Creep:The characteristic of a system that bears a constant weight at a certain temperature, and the output changes over time due to the mechanical deformation of the elastic material of the sensor.
　
Cantilever beam type weighing sensorPrecautions for use
1. The replacement and related operations of internal circuit boards and other parts must be carried out by professional engineers or technicians.
2. Before opening the shell cover, ensure that the equipment is powered off for at least 10 minutes. The opening of the shell cover must be carried out by professional engineers or technicians.
3. The explosion-proof type must be transferred to a safe area for maintenance, disassembly, and reassembly.
4. The converter circuit board assembly contains sensitive components that may be damaged by static electricity. Be careful to avoid direct contact with electronic components or circuit patterns on the circuit board, and take corresponding anti-static measures if necessary
　
The above is [65058 sensor] 65058-10K~65058-225K_ Detailed information of American Sensors (STS) weighing sensors, if you are interested in [65058 sensors] 65058-10K~65058-225K_ If you have any questions about the price, lead time, model, or inventory of Sensors (STS) weighing sensors in the United States, please feel free to call18520271262 Chen GongObtain [65058 Sensor] 65058-10K~65058-225K_ The latest price details of the Sensortronics (STS) weighing sensors in the United States.
