【 60001 Sensor 】 60001-25lb~60001-20klb_ Sensors (STS) load cells in the United States

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　

Guangzhou Zhongxin Automation Technology Co., Ltd. specializes in supplying the US Sensortronics (STS) 60001 seriesLoad Cell, [60001 Sensor] 60001-25lb~60001-20klb_ Sensortronics (STS) weighing sensors from the United States guarantee fast delivery time, 100% genuine, and strive to become the top brand for sensor sales in China. Sensors (STS) 60001 series load cell models in the United States: 60001-25lb, 60001-50lb, 60001-75lb, 60001-100lb, 60001-150lb, 60001-200lb, 60001-250lb, 60001-300lb, 60001-500lb, 60001-750lb, 60001-1klb, 60001-1.5klb, 60001-2klb, 60001-2.5klb, 60001-3klb, 60001-5klb, 60001-10klb, 60001-15klb, 60001-20klb.

Introduction to Sensortronics (STS) 60001 Series Products in the United States
Product brand: Sensortronics weighing sensor in the United States
Brand abbreviation:American STS weighing sensor

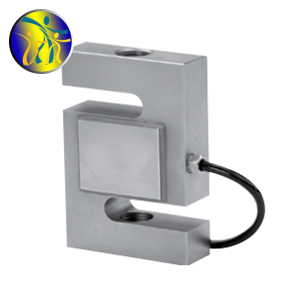

Product characteristics:S-type load cell
Protection level: IP67 standard
Design for single or multiple loading unit applications
High quality alloy tool steel structure, nickel plated and corrosion-resistant nickel
Stainless steel optional, stainless steel version model is 60050
Precautions: Use in harsh environments and operate in a standardized manner.
Range: 25lbs~20klbs
Application scope: lever conversion, suspension scale, tension/tension measurement, testing machine, hook scale, mixing station, etc

Installation dimensions of the US Sensortronics (STS) 60001 series


US Sensortronics (STS) 60001 series technical specifications


The complete model of the US Sensortronics (STS) 60001 series sensors
Vishay Sensors (STS) 60001-25lbs Load Cell
Vishay Sensors (STS) 60001-50lbs Load Cell
Vishay Sensors (STS) 60001-75lbs Load Cell
Vishay Sensors (STS) 60001-100lbs Load Cell
Vishay Sensors (STS) 60001-150lbs Load Cell
Vishay Sensors (STS) 60001-200lbs Load Cell
Vishay Sensors (STS) 60001-250lbs Load Cell
Vishay Sensors (STS) 60001-300lbs Load Cell
Vishay Sensors (STS) 60001-500lbs Load Cell
Vishay Sensors (STS) 60001-750lbs Load Cell
Vishay Sensors (STS) 60001-1klbs Load Cell
Vishay Sensors (STS) 60001-1.5klbs Load Cell
Vishay Sensors (STS) 60001-2klbs Load Cell
Vishay Sensors (STS) 60001-2.5klbs Load Cell
Vishay Sensors (STS) 60001-3klbs Load Cell
Vishay Sensors (STS) 60001-5klbs Load Cell
Vishay Sensors (STS) 60001-10klbs Load Cell
Vishay Sensors (STS) 60001-15klbs Load Cell
Vishay Sensors (STS) 60001-20klbs Load Cell

Extended Reading

Performance indicators of weighing sensors
The performance of a weighing system can be measured by indicators such as linearity, hysteresis, repeatability, and creep.
Linear:Indicates the consistency between the actual output of the system and the theoretical straight line. As shown in the figure, when linear errors occur, the output of the system is correct at no load and full load, but the input-output points between these two points are inconsistent with the ideal state. Linear error is the maximum difference between the theoretical straight line and the actual output curve.
Lag:Indicates the degree to which the input-output curve of the system does not coincide during loading and unloading.
Repeatability:Indicates the degree of inconsistency in the system's output for several consecutive weighing of the same weight during the loading or unloading process. Usually expressed as the percentage of the total output that is the difference between the minimum output and the maximum output of the system under the same loading condition.
Creep:The characteristic of a system that bears a constant weight at a certain temperature, and the output changes over time due to the mechanical deformation of the elastic material of the sensor.
　
Overview of S-type load cells
The S-type weighing sensor is the most common type of sensor, mainly used to measure the tension and pressure between solids. It is also commonly referred to as a tension and pressure sensor because its appearance resembles the S-shape, so it is commonly referred to as an S-type weighing sensor. This sensor is made of alloy steel material, sealed with adhesive protection, easy to install and use, and is suitable for electronic force measurement and weighing systems such as hanging scales, ingredient scales, and machine modified scales.
　
The above are [60001 Sensor] 60001-25lb~60001-20klb_ Detailed information of the US Sensors (STS) weighing sensor, if you are interested in [60001 Sensor] 60001-25lb~60001-20klb_ If you have any questions about the price, lead time, model, or inventory of Sensors (STS) weighing sensors in the United States, please feel free to call18520271262 Chen GongObtain 【 60001 Sensor 】 60001-25lb~60001-20klb_ The latest price details of the Sensortronics (STS) weighing sensors in the United States.
