SSPIL Sensor SSPIL-6kg~SSPIL-2t_SettlerToledo Mettler Toledo Weighing Sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　

【Guangzhou Zhongxin Automation Technology Co., Ltd】We specialize in supplying Mettler Toledo SSP IL series weighing sensors. Our SSPIL sensors range from SSPIL-6kg to SSPIL-2t.MettlerToledo weighing sensors guarantee fast delivery times and are 100% genuine. We strive to become the top brand of sensor sales in China. Mettler Toledo SSP IL SeriesThe weighing sensorRelated models: SSP IL-6kg, SSP IL-10kg,SSP IL-30kg,SSP IL-30kg,SSP IL-50kg,SSP IL-100kg,SSP IL-200kg,SSP IL-300kg,SSP IL-150kg,SSP IL-300kg,SSP IL-500kg,SSP-IL-1t,SSP-IL-2t。
　

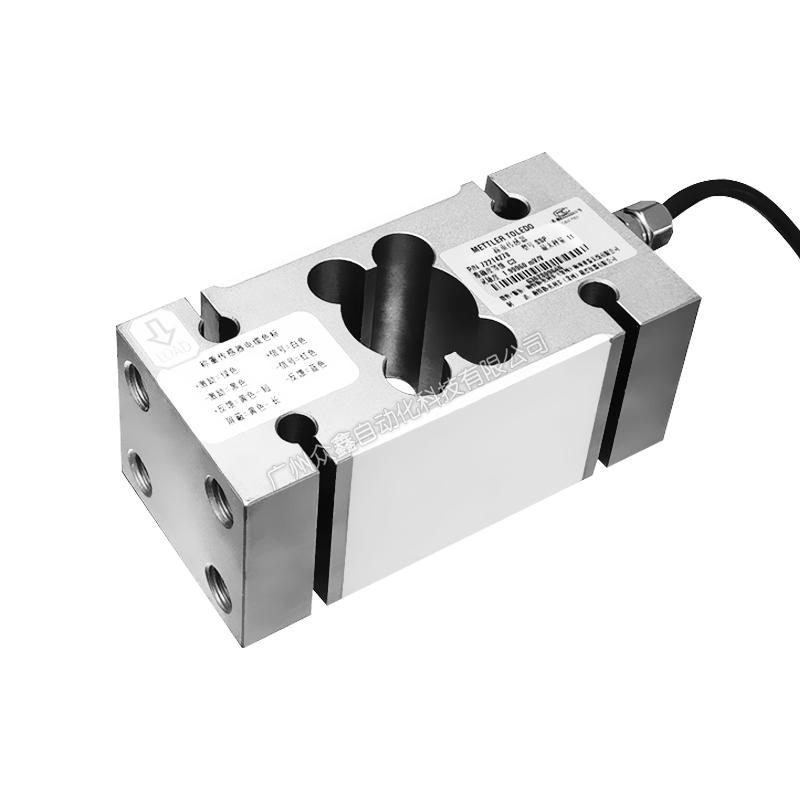

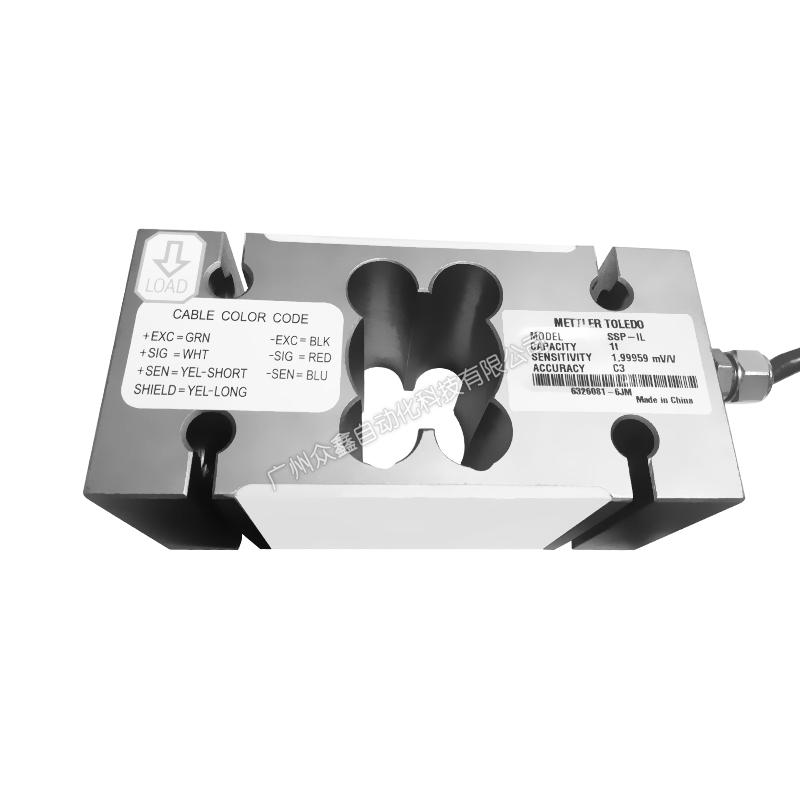

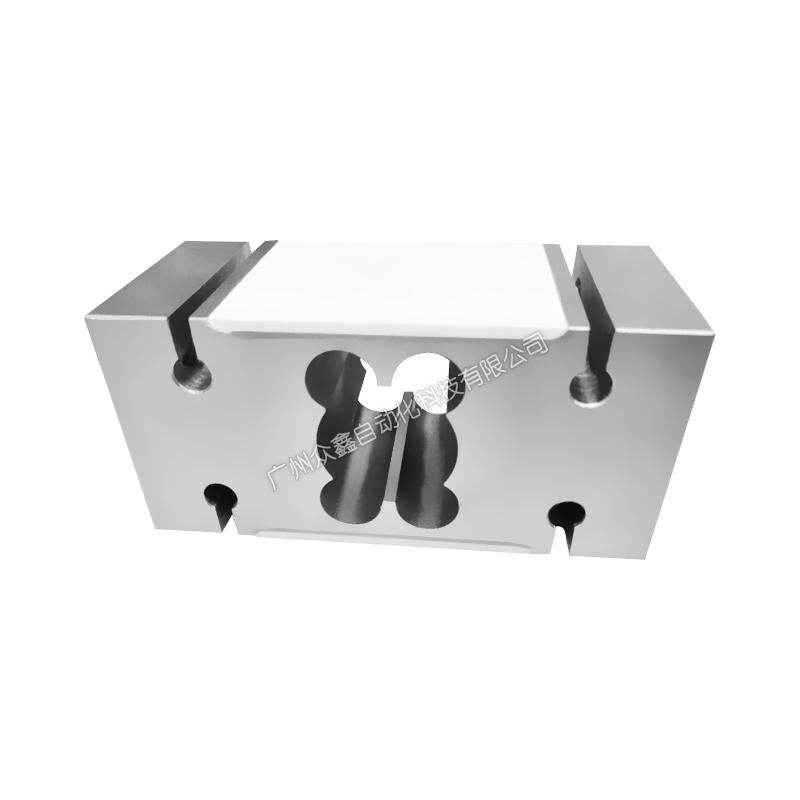

Mettler Toledo SSP IL Series Product Introduction

English name: Swiss METTLER TOLEDO weighing sensor
Chinese name: SwitzerlandMettler Toledo weighing sensor
Product features:
Box type weighing sensor
Stainless steel material, rubber sealed sensor
IP67 protection level
Maximum platform size: 800 * 1200mm
Certified by OIML R60 C3
Range options: 6kg, 10kg, 30kg, 30kg, 50kg, 100kg, 200kg, 300kg, 150kg, 300kg, 500kg, 1t, 2t

Mettler Toledo SSP IL Series Installation Dimensions

　

Mettler Toledo SSP IL series technical specifications
　


Mettler Toledo SSP IL Series Ordering Information

Material number: 72214216 Model description: Box type steel sensor 6KG, 1m cable
Material number: 72214217 Model description: Box type steel sensor 10KG, 1m cable
Material number: 72214218 Model description: Box type steel sensor 30KG, 2m cable
Material number: 72214219 Model description: Box type steel sensor 50KG, 2m cable
Material number: 72214220 Model description: Box type steel sensor 100KG, 2m cable
Material number: 72214221 Model description: Box type steel sensor 200KG, 2m cable
Material number: 72214222 Model description: Box type steel sensor 300KG, 2m cable
Material number: 72214223 Model description: Box type steel sensor 150KG, 2m cable
Material number: 72214224 Model description: Box type steel sensor 300KG, 2m cable
Material number: 72214225 Model description: Box type steel sensor 500KG, 2m cable
Material number: 72214226 Model description: Box type steel sensor 500KG, 2m cable
Material number: 72214278 Model description: Box type steel sensor 1000KG, 2m cable
Material number: 72214279 Model description: Box type steel sensor 2000KG, 2m cable

Explosion proof ordering information series
Material number: 72207869 Model description: Box type steel sensor 6KG, 1m cable, explosion-proof
Material number: 72207870 Model description: Box type steel sensor 10KG, 1m cable, explosion-proof
Material number: 72207871 Model description: Box type steel sensor 30KG, 2m cable, explosion-proof
Material number: 72207872 Model description: Box type steel sensor 30KG, 2m cable, explosion-proof
Material number: 72207873 Model description: Box type steel sensor 50KG, 2m cable, explosion-proof
Material number: 72207874 Model description: Box type steel sensor 100KG, 2m cable, explosion-proof
Material number: 72207875 Model description: Box type steel sensor 200KG, 2m cable, explosion-proof
Material number: 72207876 Model description: Box type steel sensor 300KG, 2m cable, explosion-proof
Material number: 72207877 Model description: Box type steel sensor 150KG, 2m cable, explosion-proof
Material number: 72207878 Model description: Box type steel sensor 300KG, 2m cable, explosion-proof
Material number: 72207879 Model description: Box type steel sensor 500KG, 2m cable, explosion-proof
Material number: 72208616 Model description: Box type steel sensor 1000KG, 2m cable, explosion-proof
Material number: 72208617 Model description: Box type steel sensor 2000KG, 2m cable, explosion-proof

Expand reading

Brand Introduction
METTLER TOLEDO, as a leading global manufacturer of precision instruments and scales, has maintained technological and market leadership throughout its century long development history. Nowadays, the solutions provided by Mettler Toledo cover various processes and links in the laboratory, industrial, and retail (commercial) industries. From high-precision microanalysis to weighing applications of over a thousand tons, Mettler Toledo's unified team, global service network, and perfect solutions help global users improve efficiency, create value, and easily cope with various challenges.
　
The origin of box type weighing sensors
In the discussion of the first International Industrial Weighting and Force-measuring Exhibition in 1979, a new term emerged in the terminology of sensors: "single point" force sensing. The latest generation of retail scales did not include any auxiliary flexures supporting the upper weighing software platform, which was rigidly fixed to the central sensor. The design of this type of box type force sensor is based on the parallelogram principle, but an additional center cross beam should be provided for the strain gauge to complete the task of measuring beams and deflection components in the top and bottom parts of the parallelogram. Its advantage is that the strain gauge moves away from the position caused by eccentric loading, which leads to twisting effects, while increasing the rigidity of the structure. This type of force sensor is subjected to eccentric loading tests in the manufacturing plant. Apply 1/3 of the sensor's maximum load in different directions within a radius of 200 millimeters. Each sensor must operate within ± 1/3000 of the center reading value, which is a typical design. Another noteworthy new news in the field of force sensors is the promotion and application of the principle of gyroscopes. The gyroscopic force measurement system utilizes the proprietary characteristics of the tourbillon, making it a precise, linear, and reproducible force sensor. After studying the anti lag, anti drift, and anti temperature effects of this force sensor, the gyroscopic force measurement system can transmit direct digital signals to the display unit with high anti-interference performance. These characteristics make it completely independent of harsh environmental conditions. The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal support. There is a movable joint hanging an external universal support, which also supports one end of the movable lever below the tourbillon.
　
The above is the detailed information of the SSPIL sensor SSPIL-6kg~SSPIL-2t_SettlerToledo Mettler Toledo weighing sensor. If you have any questions about the price, delivery time, model, and inventory of the SSPIL sensor SSPIL-6kg~SSPIL-2t_SettlerToledo Mettler Toledo weighing sensor, please feel free to call18520271262 Chen GongGet the latest price details for SSPIL sensors ranging from SSPIL-6kg to SSPIL-2t_SettlerToledo Mettler Toledo weighing sensors.
