1、 Introduction to LWE displacement sensor products
Product brand: VOLFA, Germany
Product type: Linear displacement sensor
Product series: LWE
Product travel: 50mm to 800mm
Product features:
(1) Resolution better than 0.01mm
(2) Excellent linearity, up to 0.05% F.S
(3) Two end ball ring bearing design, bearing support
(4) Strong temperature stability
(5) Easy to install, suitable for heavy-duty industrial use.
Product Description:
(1) Aluminum alloy shell with bright wire drawing treatment on the surface
(2) Pull rod stainless steel, rotatable external thread
(3) Flexible buffer bearing
(4) High precision conductive plastic for resistance components
(5) The sliding brush component is a pair of multi touch alloy sliding brushes,
(6) Electrical connection C193 4-pin square plug
Product application:
(1) Mechanical and automotive industries
(2) Experimental equipment, actuator, and cylinder matching
(3) Water gate control, robotics technology, hydraulic machinery, etc
2、 LWE displacement sensor product model
LWE-50，LWE-75，LWE-100
LWE-130，LWE-150，LWE-175
LWE-200，LWE-225，LWE-250
LWE-275，LWE-300，LWE-350
LWE-375，LWE-400，LWE-425
LWE-450，LWE-500，LWE-550
LWE-600，LWE-650，LWE-700
LWE-750，LWE-800

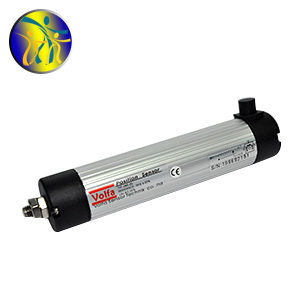

3、 LWE displacement sensor product image

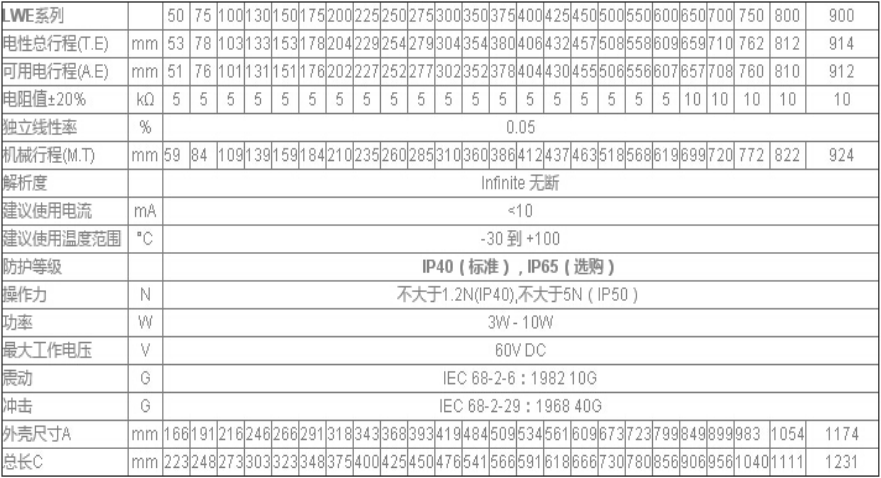

4、 Technical parameters of LWE displacement sensor products
5、 LWE displacement sensor product dimensions
