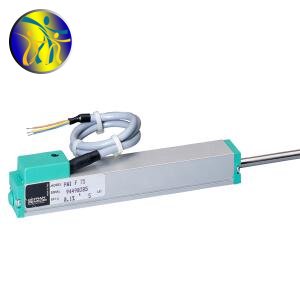

【 PA1-C Sensor 】 PA1-C-025~PA1-C-0150_ Italian GEFRAN displacement sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of Italian GEFRAN PA1-C series displacement sensors, 【 PA1-C Sensors 】 PA1-C-025~PA1-C-0150_ GEFRAN, ItalyDisplacement sensorEnsure fast delivery time, 100% original import, and improve complete automated weighing solutions for various industrial fields. Italian GEFRAN PA1-C series displacement sensor related models: PA1-C-025, PA1-C-050, PA1-C-075, PA1-C-0100, PA1-C-0125, PA1-C-015

Characteristics of Italian GEFRAN PA1-C series products

Product brand:Italian GEFRAN displacement sensorGefran electronic ruler
Product name: Linear displacement sensor (also known as electronic ruler)
☆ Range 25~150mm
☆ The mechanical linkage device adopts a joint with a wire collector and M4 thread
☆ Independent linearity up to ± 0.05%
☆ Infinite resolution
☆ Theoretical changes in non electric signals outside the range of electric quantity
☆ Maximum displacement velocity of 5 m/s
☆ Working temperature: -30...+100 ° C
☆ Electrical connection:
☆ PA1 F 3-wire shielded cable 1m
☆ PA1 C 5-pole connector 1m (DIN 43322)
☆ Wear life:> 100x106 operations (within the C.E.U. range)
　
The GEFRAN Jefferson PA1-C series displacement sensor from Italy is one of our company's key advantageous products, with absolute competitive prices, in stock, original, authentic, and reliable! Ensure satisfactory price and quality!
　
We solemnly promise: "If you are not satisfied within three months, you can return or exchange the goods unconditionally at any time, refund the full payment, and do not charge any fees.". Two years warranty, free maintenance at any time!

Italian GEFRAN PA1-C series connection method


　
Technical indicators of Italian GEFRAN PA1-C series


Italian GEFRAN PA1-C series models

PA1-C-025 Description: PA1 displacement sensor, 5-pin connector output, effective electrical stroke (C.E.U.) 25mm
PA1-C-050 Description: PA1 displacement sensor, 5-pin connector output, effective electrical stroke (C.E.U.) 50mm
PA1-C-075 Description: PA1 displacement sensor, 5-pin connector output, effective electrical stroke (C.E.U.) 75mm
PA1-C-0100 Description: PA1 displacement sensor, 5-pin connector output, effective electrical stroke (C.E.U.) 100mm
PA1-C-0125 Description: PA1 displacement sensor, 5-pin connector output, effective electrical stroke (C.E.U.) 125mm
PA1-C-0150 Description: PA1 displacement sensor, 5-pin connector output, effective electrical stroke (C.E.U.) 150mm

Expand reading

Summary of displacement sensor brands
German Novotechnik displacement sensor,
Italian GEFRAN displacement sensor
German Volfa displacement sensor
UK RDP displacement sensor
Japanese Seiko displacement sensor
American Trans Tek displacement sensor
　
Overview of Linear Displacement Sensors
Linear displacement sensors are mainly used for direct and accurate measurement of displacement and length in control, adjustment, and measurement systems. The rod free design allows the sensor brush to move along the length direction of the sensor on the side of the sensor, avoiding the common problem of sensor failure caused by "pump" effect in general sensors, and the range can reach 3000 Hao meters. The novel ball twist releases the torque generated by unevenness or tilt, and the sensor bears uniform tensile force. The installation fixture can be fine tuned. Based on the relationship between materials and processes, the temperature coefficient of displacement sensors is extremely low. The sturdy structure and materials enable the sensors to work reliably under harsh temperature and vibration conditions. The measurement principle of the sensor is simple, passive, and the absolute value output makes it not affected by external electromagnetic effects. At the same time, it does not require a built-in power supply and can maintain real-time displacement data in the event of a power outage.
　
The above are [PA1-C Sensor] PA1-C-025~PA1-C-0150_ Detailed information on Italian GEFRAN displacement sensors, if you are interested in [PA1-C sensors] PA1-C-025~PA1-C-0150_ If you have any questions about the price, delivery time, model, or inventory of GEFRAN displacement sensors in Italy, please feel free to call us18520271262 Chen GongObtain [PA1-C Sensor] PA1-C-025~PA1-C-0150_ Latest price details for GEFRAN displacement sensors in Italy.
