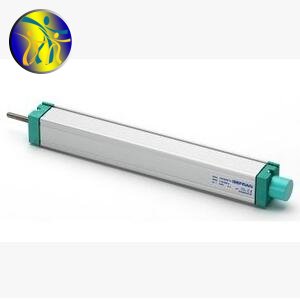

LT-M Sensor LT-M-050-P_ LT-M-0900-P_ Italian GEFRAN displacement sensor

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　

【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional supply of Italian GEFRAN LT-M series displacement sensors, LT-M-050-P_ LT-M-0900-P_ Italy's GEFRAN displacement sensor ensures fast delivery, 100% imported from original equipment, and provides a complete automated weighing solution for various industrial fields. Italian GEFRAN LT-M series displacement sensor models: LT-M-050-P, LT-M-0100-P, LT-M-0130-P, LT-M-0150-P, LT-M-0175-P, LT-M-0200-P, LT-M-0225-P, LT-M-0275-P, LT-M-0300-P, LT-M-0375-P, LT-M-0400-P, LT-M-0450-P, LT-M-0500-P, LT-M-0600-P, LT-M-0750-P, LT-M-0900-P

Characteristics of Italian GEFRAN LT-M series products

☆ Product brand:Italian GEFRAN displacement sensorGefran electronic ruler
Product name: Linear displacement sensor
Product alias: Electronic ruler
☆ Product model: LT
☆ Travel 50mm~900mm
☆ Use M6 thread mechanical connection
☆ Independent linearity reaches ± 0.05%
☆ Repeatability 0.01mm
☆ Infinite resolution
☆ Changes in electrical signals beyond the theoretical electrical stroke
☆ Displacement rate up to 5m/s (10 m/s optional)
☆ Working temperature: -30...+100 ℃
☆ Electrical connection:
LTH 3-pole connector
LTM 4-pole DIN43650 ISO4400 standard connector
LTB 5-pole DIN43322 connector
LTF 3-pole shielded cable (1 meter length)
☆ Service life> one hundred × 106 times or> twenty-five × 106 meters, whichever is smaller (within the effective electrical travel range)
☆ Protection level: IP60 (optional IP65)
　
The Italian GEFRAN Jefferson LT-M series displacement sensors are one of our company's key advantageous products, with absolute competitive prices, in stock, original, authentic, and reliable! Ensure satisfactory price and quality!
　
We solemnly promise: "If you are not satisfied within three months, you can return or exchange the goods unconditionally at any time, refund the full payment, and do not charge any fees.". Two years warranty, free maintenance at any time!

Italian GEFRAN LT-M series parameter dimensions



Italian GEFRAN LT-M series complete model

LT-M-050-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 50mm
LT-M-0100-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 100mm
LT-M-0130-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 130mm
LT-M-0150-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 150mm
LT-M-0175-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 175mm
LT-M-0200-P describes LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 200mm
LT-M-0225-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 225mm
LT-M-0275-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 275mm
LT-M-0300-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 300mm
LT-M-0375-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 375mm
LT-M-0400-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 400mm
LT-M-0450-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 450mm
LT-M-0500-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 500mm
LT-M-0600-P describes LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 600mm
LT-M-0750-P Description LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 750mm
LT-M-0900-P describes LT displacement sensor, 4-pole connector output, IP65 effective electrical stroke 900mm
　
Expand reading

Overview of Linear Displacement Sensors
Linear displacement sensors are mainly used for direct and accurate measurement of displacement and length in control, adjustment, and measurement systems. The rod free design allows the sensor brush to move along the length direction of the sensor on the side of the sensor, avoiding the common problem of sensor failure caused by "pump" effect in general sensors, and the range can reach 3000 Hao meters. The novel ball twist releases the torque generated by unevenness or tilt, and the sensor bears uniform tensile force. The installation fixture can be fine tuned. Based on the relationship between materials and processes, the temperature coefficient of displacement sensors is extremely low. The sturdy structure and materials enable the sensors to work reliably under harsh temperature and vibration conditions. The measurement principle of the sensor is simple, passive, and the absolute value output makes it not affected by external electromagnetic effects. At the same time, it does not require a built-in power supply and can maintain real-time displacement data in the event of a power outage.
　
Other forms of displacement sensors
LT-M-050-S　　　 LT-H-050-S　　 LT-B-050-S　　 LT-F-050-S　　　　
LT-M-050-P　　　 LT-H-050-P　　 LT-B-050-P　　 LT-F-050-P　
LT-M-0100-S　　 LT-H-0100-S　 LT-B-0100-S　 LT-F-0100-S
LT-M-0100-P　　 LT-H-0100-P　 LT-B-0100-P　 LT-F-0100-P
LT-M-0130-S　　 LT-H-0130-S　 LT-B-0130-S　 LT-F-0130-S
LT-M-0130-P　　 LT-H-0130-P　 LT-B-0130-P　 LT-F-0130-P
LT-M-0150-S　　 LT-H-0150-S　 LT-B-0150-S　 LT-F-0150-S
LT-M-0150-P　　 LT-H-0150-P　 LT-B-0150-P　 LT-F-0150-P
LT-M-0175-S　　 LT-H-0175-S　 LT-B-0175-S　 LT-F-0175-S
LT-M-0175-P　　 LT-H-0175-P　 LT-B-0175-P　 LT-F-0175-P
LT-M-0200-S　　 LT-H-0200-S　 LT-B-0200-S　 LT-F-0200-S
LT-M-0200-P　　 LT-H-0200-P　 LT-B-0200-P　 LT-F-0200-P
LT-M-0225-S　　 LT-H-0225-S　 LT-B-0225-S　 LT-F-0225-S
LT-M-0225-P　　 LT-H-0225-P　 LT-B-0225-P　 LT-F-0225-P
LT-M-0275-S　　 LT-H-0275-S　 LT-B-0275-S　 LT-F-0275-S
LT-M-0275-P　　 LT-H-0275-P　 LT-B-0275-P　 LT-F-0275-P
LT-M-0300-S　　 LT-H-0300-S　 LT-B-0300-S　 LT-F-0300-S
LT-M-0300-P　　 LT-H-0300-P　 LT-B-0300-P　 LT-F-0300-P
LT-M-0375-S　　 LT-H-0375-S　 LT-B-0375-S　 LT-F-0375-S
LT-M-0375-P　　 LT-H-0375-P　 LT-B-0375-P　 LT-F-0375-P
LT-M-0400-S　　 LT-H-0400-S　 LT-B-0400-S　 LT-F-0400-S
LT-M-0400-P　　 LT-H-0400-P　 LT-B-0400-P　 LT-F-0400-P
LT-M-0500-S　　 LT-H-0500-S　 LT-B-0500-S　 LT-F-0500-S
LT-M-0500-P　　 LT-H-0500-P　 LT-B-0500-P　 LT-F-0500-P
LT-M-0600-S　　 LT-H-0600-S　 LT-B-0600-S　 LT-F-0600-S
LT-M-0600-P　　 LT-H-0600-P　 LT-B-0600-P　 LT-F-0600-P
LT-M-0700-S　　 LT-H-0700-S　 LT-B-0700-S　 LT-F-0700-S
LT-M-0700-P　　 LT-H-0700-P　 LT-B-0700-P　 LT-F-0700-P
LT-M-0750-S　　 LT-H-0750-S　 LT-B-0750-S　 LT-F-0750-S
LT-M-0750-P　　 LT-H-0750-P　 LT-B-0750-P　 LT-F-0750-P
LT-M-0900-S　　 LT-H-0900-S　 LT-B-0900-S　 LT-F-0900-S
LT-M-0900-P　　 LT-H-0900-P　 LT-B-0900-P　 LT-F-0900-P
　
The above is the LT-M sensor LT-M-050-P_ LT-M-0900-P_ Detailed information on Italian GEFRAN displacement sensor, if you are interested in [LT-M sensor] LT-M-050-P_ LT-M-0900-P_ If you have any questions about the price, delivery time, model, or inventory of GEFRAN displacement sensors in Italy, please feel free to call us18520271262 Chen GongObtain LT-M Sensor LT-M-050-P_ LT-M-0900-P_ Latest price details for GEFRAN displacement sensors in Italy.
