. RSM-2802 016 112 202 Angle Sensor German Novotechnik Angle Sensor Product Introduction
Product series: RSM2800
Product features:
(1) Non contact, magnetic induction measurement technology
(2) Long service life
(3) Working range 720°~ 5760°, 360° Incremental (equivalent to 2… 16 turns)
(4) Continuous output of analog signals within the selected range
(5) Power on is the working state, and power off position memory function
(6) Insert type toothed or embedded shaft connection
(7) Easy to install
(8) Protection level IP54 or IP67
(9) Single or dual output
(10) Resolution 16 bits
(11) Independent linearity up to± 0.03%
(12) Optional digital interface, see separate parameter table
Product Description:
(1) Shell: High grade high-temperature resistant plastic
(2) Shaft: stainless steel
(3) Bearing: plain steel sleeve bearing
(4) Electrical connection: shielded cable 4× AWG26, M12 connector with short cable
Product Introduction:
This sensor integrates the compact and cost-effective features of a multi turn potentiometer for multi turn angle measurement.
This product combines single turn angle measurement with separate turn counting technology for multi turn angle measurement, with high resolution and accuracy. Due to its ability to detect and memorize the number of turns stored in the event of power failure, this sensor can store the angle of rotation and is a truly compact power on read sensor.
The sensor adopts a magnetic induction non-contact working principle internally, resulting in a long service life and high resistance to mechanical influences such as impact and vibration.
The working range can be selected from 2 to 16 turns, with a rotation angle of up to 5760°. The output signal can be single or dual output, with excellent linearity within the selected range. The working range is therefore utilized to a large extent by Zui. The sensor housing is made of high-grade special high-temperature resistant plastic material. The installation adopts an extended slot method for plating and fixing, with flexible adjustment. Simply adjust the mechanical structure to easily install.
Non gap toothed/embedded connection ensures simple and fast installation. The sensor is not affected by moisture and dust. The signal output is achieved through a sealed shielded cable led out from the casing. Due to its compact and non-contact design, the RSM2800 sensor has greatly reduced the system cost for some expensive applications such as gear Transcell.
This product can be widely used in many fields, such as printing machinery, drive and steering systems, rope length sensors, door control systems, etc; Mobile engineering vehicles (such as elevators), paper industry, and robotics technology. In a word, this product is an ideal substitute for wire wound multi turn Potentiometer and encoder.

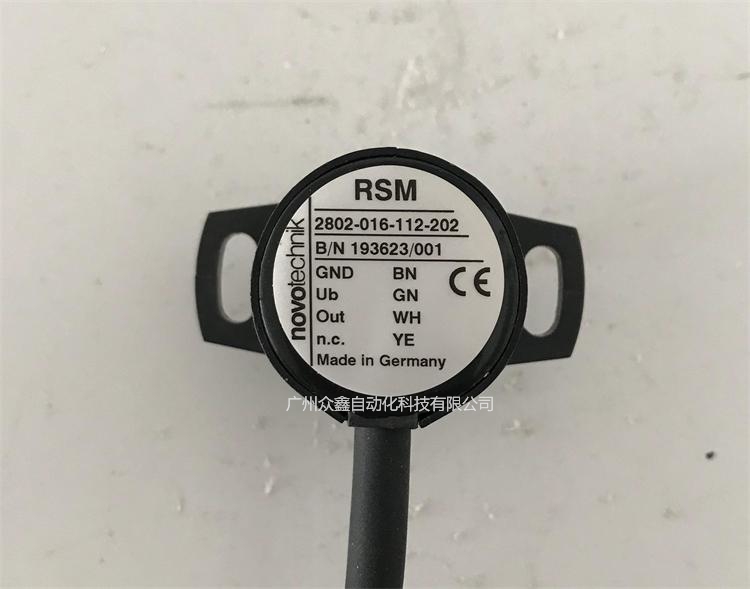

. RSM-2802 016 112 202 Angle Sensor German Novotechnik Angle Sensor Real Shot
