1、 TS-0150 Linear Display Sensor German Novotechnik Display Sensor Product Introduction
Product series:TS
Product features:
(1) Long service life, running up to 100 x 106 movements
(2) Excellent linearity, up to ± 0.075%
(3) Double bearing linkage rod
(4) Specially designed ball joint structure can eliminate lateral stress
(5) Operating speed up to 10 m/s
(6) Excellent performance in shock and vibration resistance
(7) Optional output cable or plug
Product Description:
(1) Shell: anodized aluminum oxide
(2) Installation: Adjustable clamp
(3) Pull rod: stainless steel AISI 303
(4) Ball joint: Hard steel ball with M5 x 0.5 knurling, quenched, with buffered elasticity
(5) Flexible bearings: flexible metal bearings at both ends
(6) Resistance element: conductive plastic
(7) Sliding brush component: Precious metal multi touch foot sliding brush with elastic damping
(8) Electrical connection: 5-pin IEC 130-9 round plug
Product Introduction :
Sensors measure the resistance of conductive and resistive materials sprayed on PCBs, enabling precise control and adjustment of measurements The sliding brush is installed on the connecting rod and tightly combined with conductive resistance material High measurement accuracy and long service life
The coupling of the ball joint structure in the sensor (which can be installed at either end of the pull rod) ensures that the sensor can move freely, and even if there is a difference between the direction of the sensor pull rod and the direction of the motion force, it will not damage the sensor
A multi contact sliding brush made of precious metal with spring damping and independent buffering device ensures reliable contact with the resistor even during high-speed operation or under impact and vibration
2、 TS-0150 Linear Displacement Sensor German Novotechnik Displacement Sensor Related Models
TS-0025
TS-0050
TS-0075
TS-0100
TS-0150

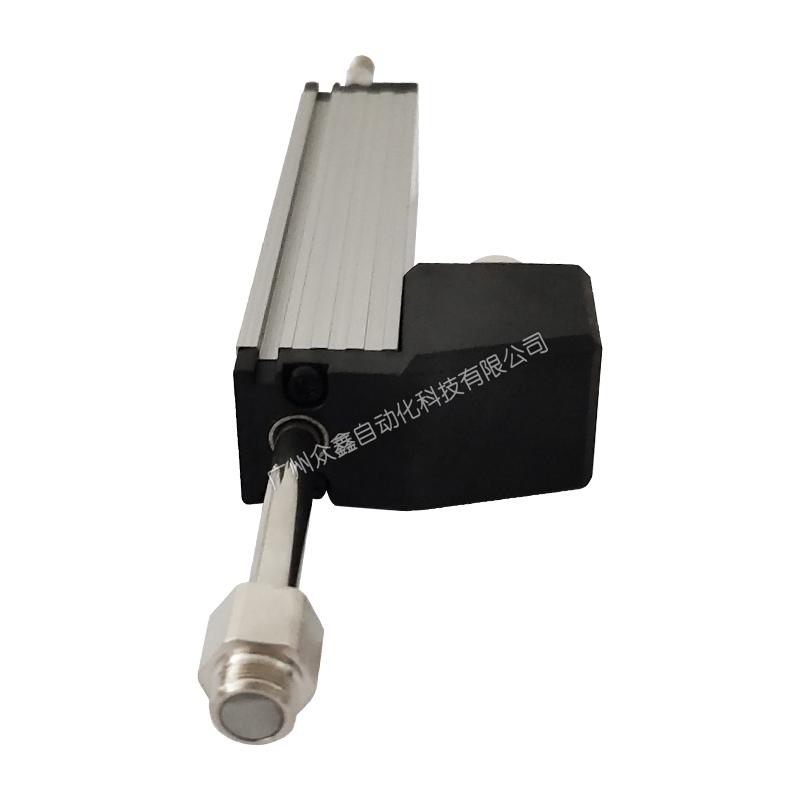

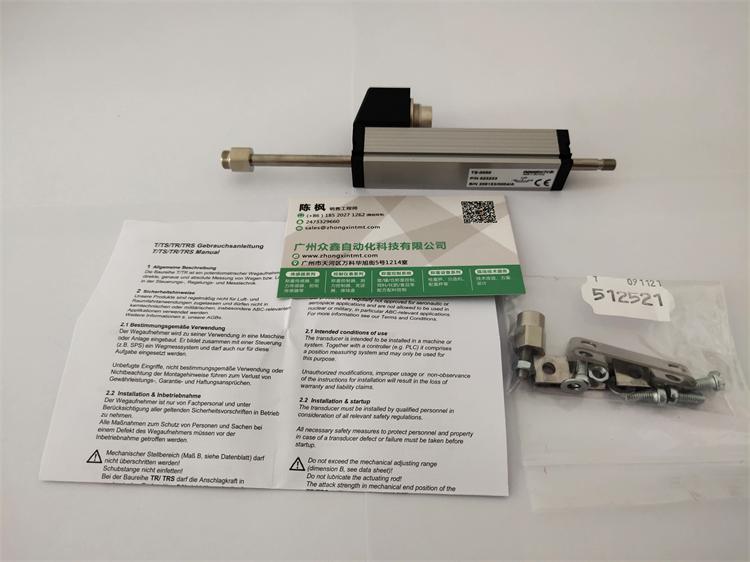

3、 Actual photo of TS linear displacement sensor from Novotechnik in Germany
4、 TS-0150 Linear Displacement Sensor German Novotechnik Displacement Sensor Product Dimensions
5、 TS-0150 Linear Displacement Sensor Technical Parameters of German Novotechnik Displacement Sensor
