1、 LS1-0025 Displacement Sensor Product Introduction
Product Series: LS1
Product type: Linear displacement sensor
Sensor travel: 25mm
Product Introduction
(1) The non-contact inductive measurement principle displacement sensor using NOVOPAD measurement technology is combined with a PCB substrate and a built-in reset spring for direct and accurate position feedback or data display applications.
(2) The two ends of the pull rod are supported by metal flexible bearings, allowing for higher lateral forces at the end of the pull rod. The sturdy and compact housing design makes LS1 more suitable for industrial environments. The design of the rear end stop nut of the pull rod is convenient for connecting with electromagnetic, pneumatic and hydraulic actuators.
(3) The signal processor with built-in Teach In function provides accurate voltage and current absolute value signals.
(4) Non contact sensors are easy to maintain, wear free, and have good repeatability, resolution, and linearity. Sensor replacement does not require calibration, and the magnetic field environment has no effect on the measurement signal.
Product Features:
(1) Long service life, with up to 100 x 106 movements during operation
(2) Compact shell design, 18 x 18 mm
(3) Two end support rod
(4) Compatible with standard contacts
(5) Resolution of 0.05% or 0.1%
(6) Excellent linearity, up to ± 0.15%
(7) Standard current or voltage signal output
(8) Button based Teach In function, LED status display
(9) Anti magnetic field interference
(10) Output cable or plug optional
2、 LS1 displacement sensor series models
LS1-0025
LS1-0050
LS1-0075
LS1-0100
LS1-0150
LS1-0200
3、 Technical parameters of LS1-0025 displacement sensor
4、 LS1-0025 displacement sensor product size

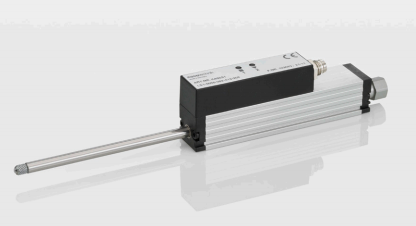

5、 Product picture of LS1-0025 displacement sensor
