F220g displacement sensor, NOVOTECHNIK F200g series displacement sensor from Germany

Product brand: Novotechnik, Germany

Product series: F200

Product type: displacement sensor, linear displacement sensor, electronic displacement sensor

Product distributor: Guangzhou Zhongxin Automation Technology Co., Ltd

Product Introduction:

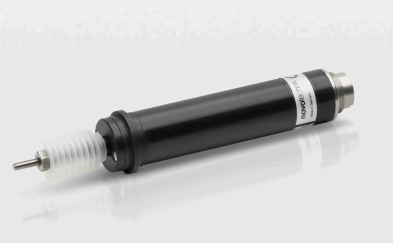

(1) The F-200 model is an electronic displacement sensor that converts small linear displacements into electrical analog signals through a differential transformer with a movable iron core.

(2) The iron core is installed on the push rod, which is tightly pressed against the measured object or tightly connected to the measured object by a built-in spring. The sensor is powered by DC voltage. The highly integrated built-in power module provides stable AC voltage for the differential transformer.

(3) The displacement of the iron core generates the corresponding DC output voltage, and the change in displacement is calculated through the change in voltage. The electrical zero position is located in the middle of the effective range of the push rod.

Product features:

(1) Excellent linearity, standard value ± 0.1%... ± 0.3%

(2) When equipped with EEM 33-70 connectors, the protection level is IP 67

(3) Connected to reverse voltage protection

(4) Built-in integrated circuit

(5) DC power supply, DC output

(6) Near infinite resolution

(7) Good thermal stability

F-205-1G

F205g

F205.1g

F210g

F210.1g

F220g
