1、 Product Introduction of T210 Torque Sensor from German HBM Brand
Product brand: HBM Germany
Product Type: Torque Sensor
Product model: T210
Product Distributor: Guangzhou Zhongxin Automation Technology Co., Ltd
Product Introduction
(1) The T210 torque sensor is a precision torque measurement system that uses wireless power supply and signal transmission. It can accurately measure torque, speed, and rotation angle, providing two signal output modes: voltage and frequency. T210 is precise and reliable, with a circular shaft end that can be easily integrated into various industrial applications, such as offline testing or development test benches. Standardized design allows almost all existing equipment to be retrofitted with T210.
(2) T210 is compatible with the T21WN torque sensor downwards, and the installation hole is compatible with the T21WN model.
(3) T210 is used for high-precision torque and speed measurement on test benches, as well as various industrial applications.
Product Features:
(1) The accuracy level is 0.1
(2) Linear deviation, including lag ≤ 0.05%
(3) Rated range from 0.5 to 200 N · m
(4) High speed up to 30000 revolutions per minute
(5) Speed measurement, 512 pulses per revolution
(6) Output signal 10 V and 10 kHz ± 5 kHz
(7) Non contact transmission of measured values
(8) Cylindrical shaft end for friction fit
(9) Provide 3D STEP files
(10) Maintenance free

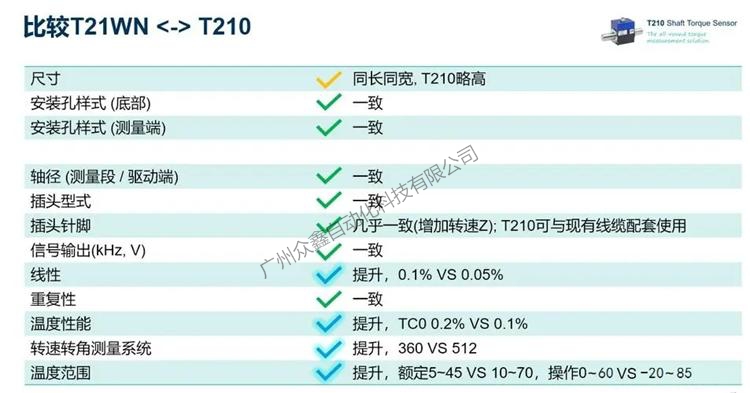

2、 Issues to consider when converting from T21WN to T210
1. About size
The length and width of sensors with the same range are the same. The height of T210 is slightly higher, but for most applications, the space in this direction is not important. The installation holes on the bottom and measuring side are the same. But T210 does not have mounting holes on the drive side.
2. About the shaft end
The diameter of the shaft end is exactly the same
3. What needs to be considered in terms of electrical aspects
The plugs used are the same, the pin assignments are very similar, and the cables already in use can also be used with T210.
4. Regarding the output signal
The frequency output (10 kHz ± 5 kHz) and voltage output (± 10 V) are basically the same. In most applications, direct replacement should not have an impact.
5. What are the changes in the speed measurement system?
The current characteristic of the measurement system is 512 pulses per revolution. As before, there are two 5V square wave signals offset by 90 ° for angle measurement. And each signal can be used for speed measurement. In addition, there is a reference signal with one pulse per revolution, which facilitates measurement at high speeds. The option for 24V level signal is no longer available.
6. Is T210 better?
We can see higher rotational speed, lower linear deviation, better temperature characteristics, wider temperature range, and better speed measurement system
3、 German HBM brand T210 torque sensor product model
T210/0.5NM
T210/1NM
T210/2NM
T210/5NM
T210/10NM
T210/20NM
T210/50NM
T210/100NM
T210/200NM

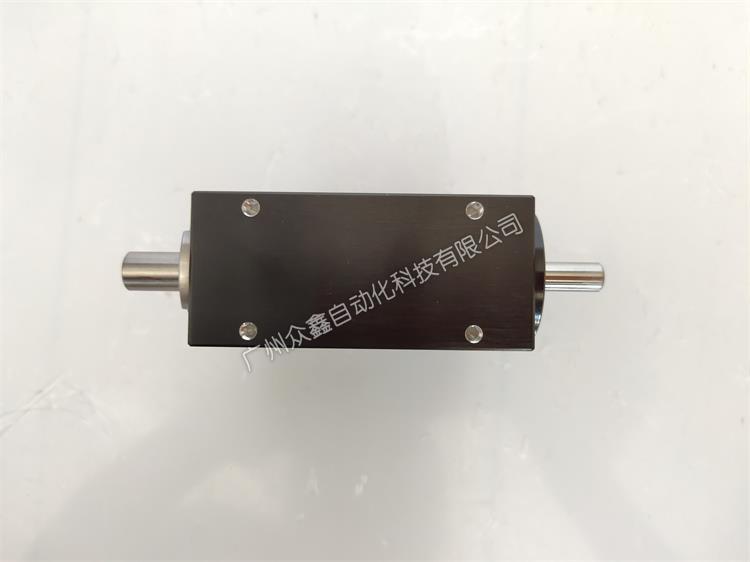

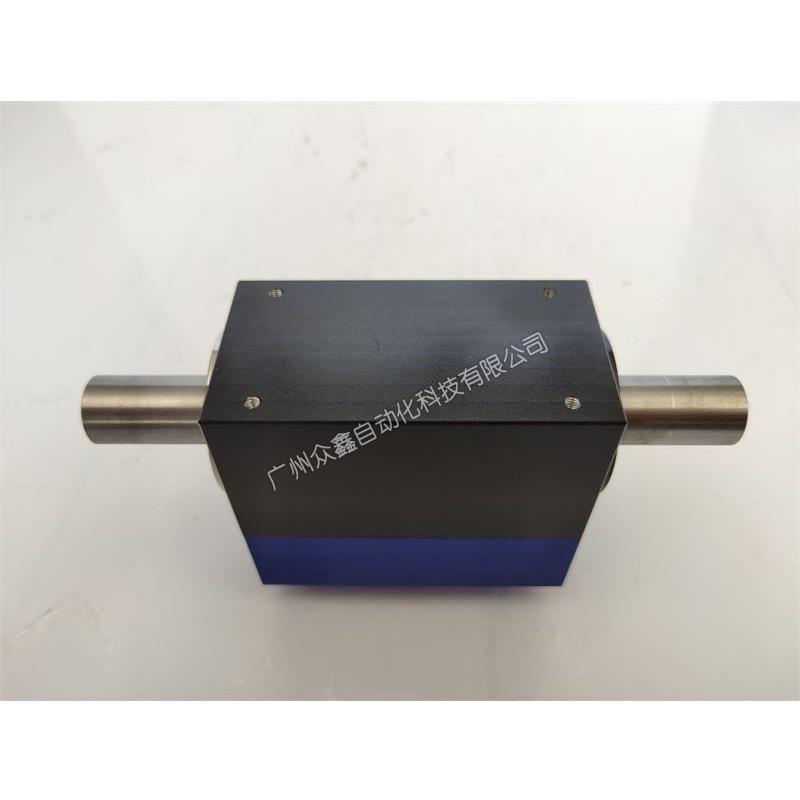

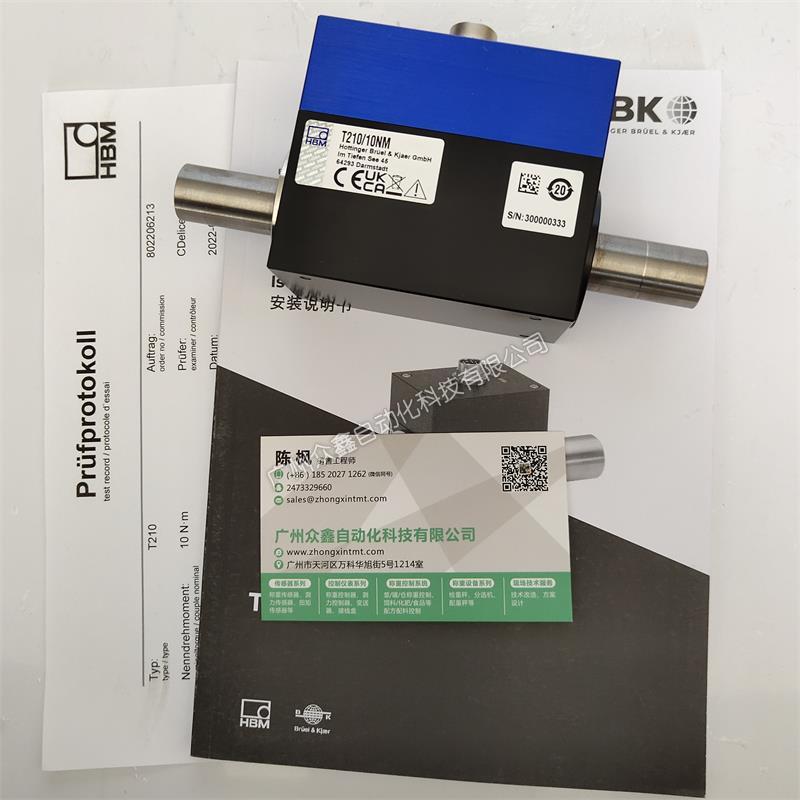

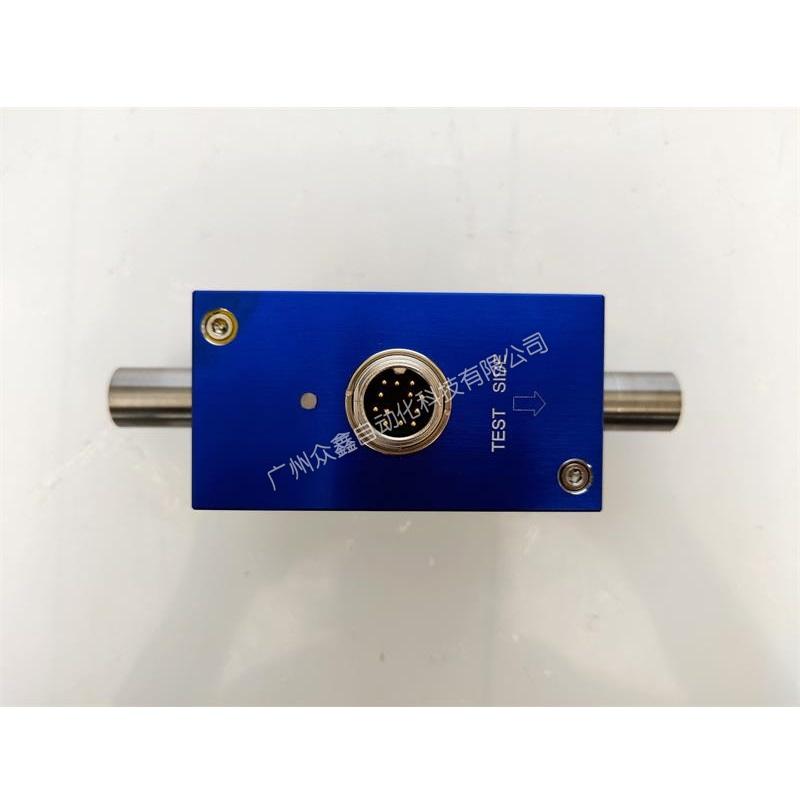

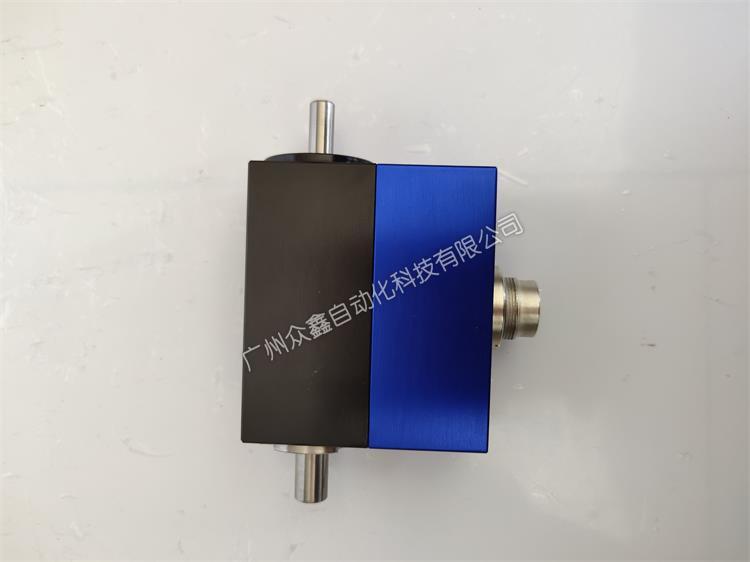

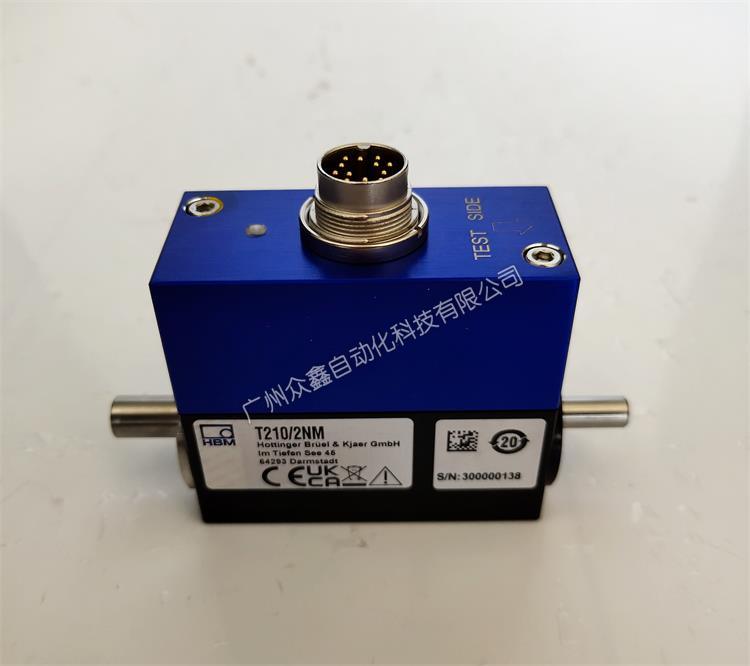

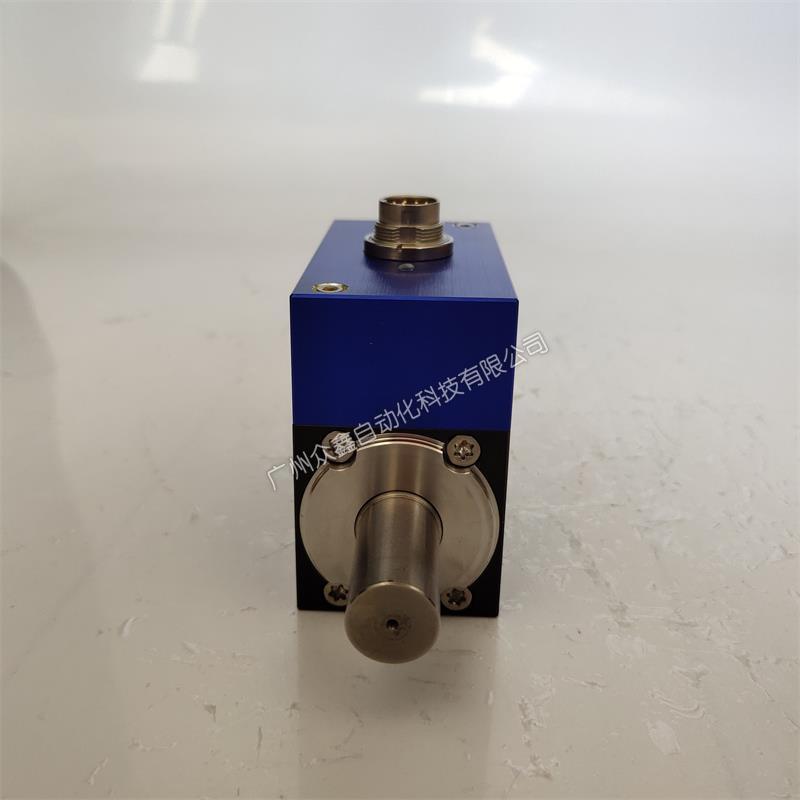

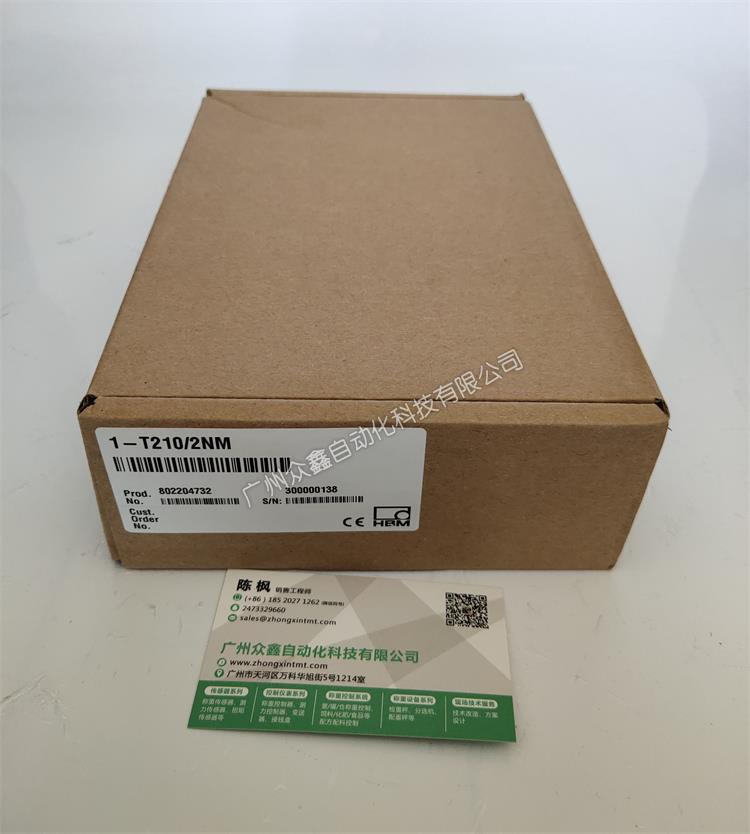

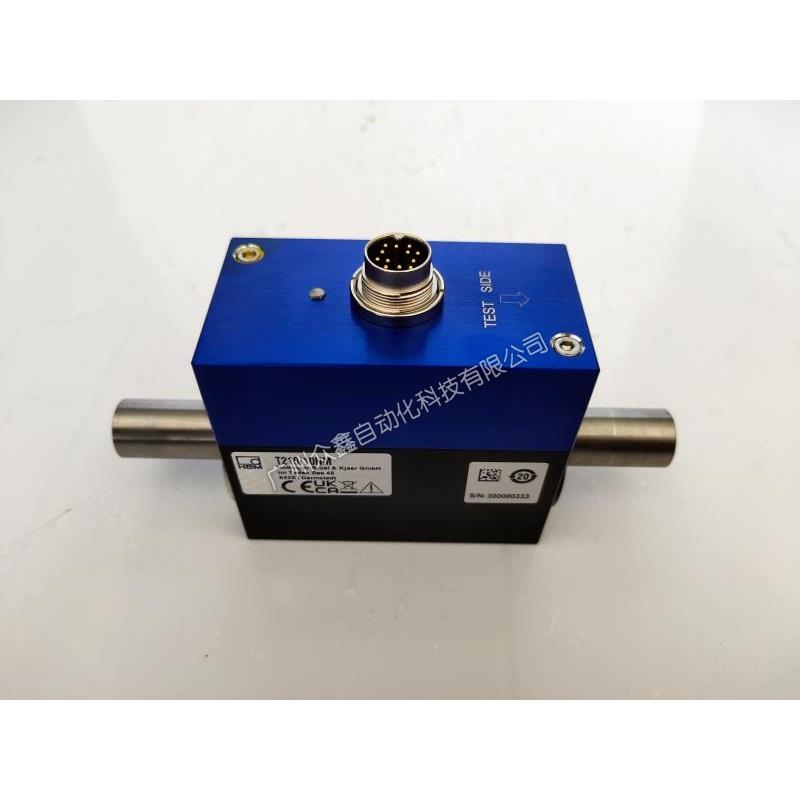

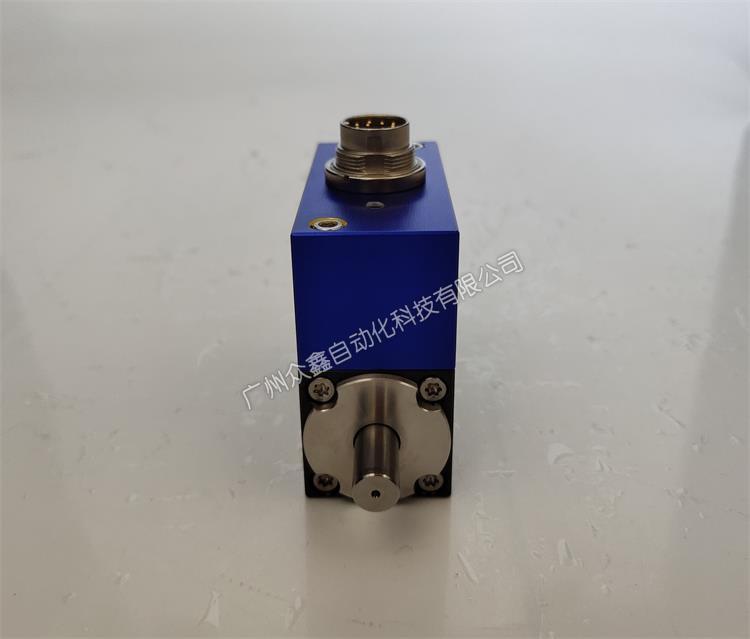

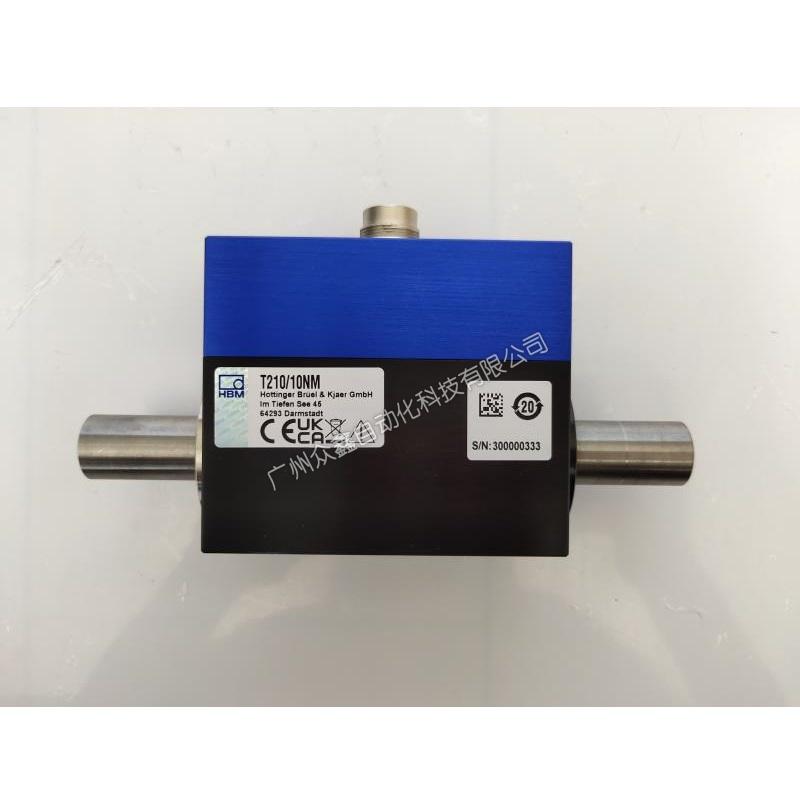

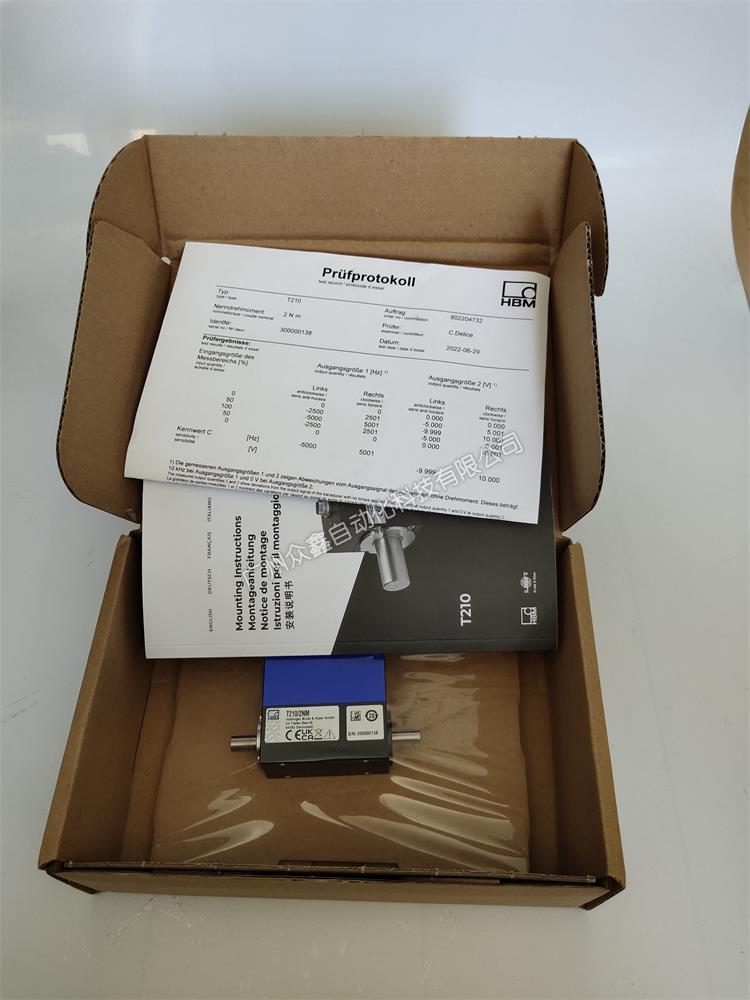

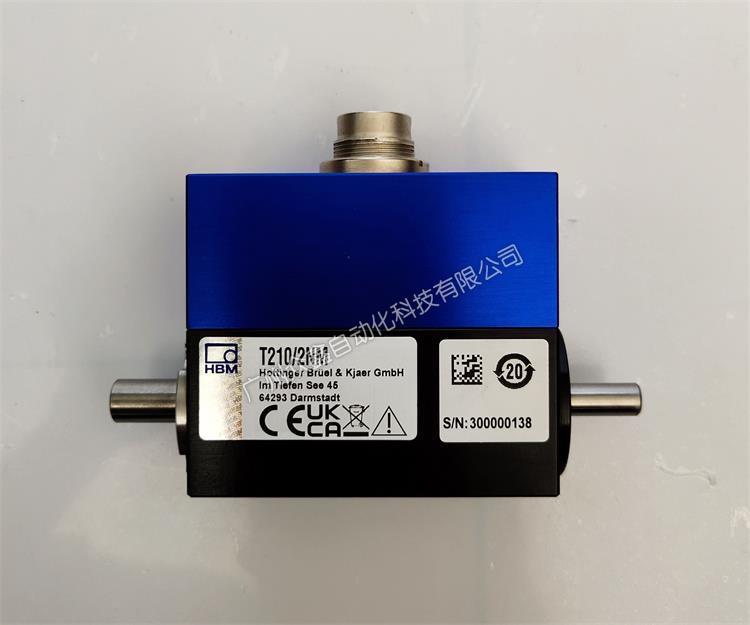

4、 German HBM brand T210 torque sensor picture

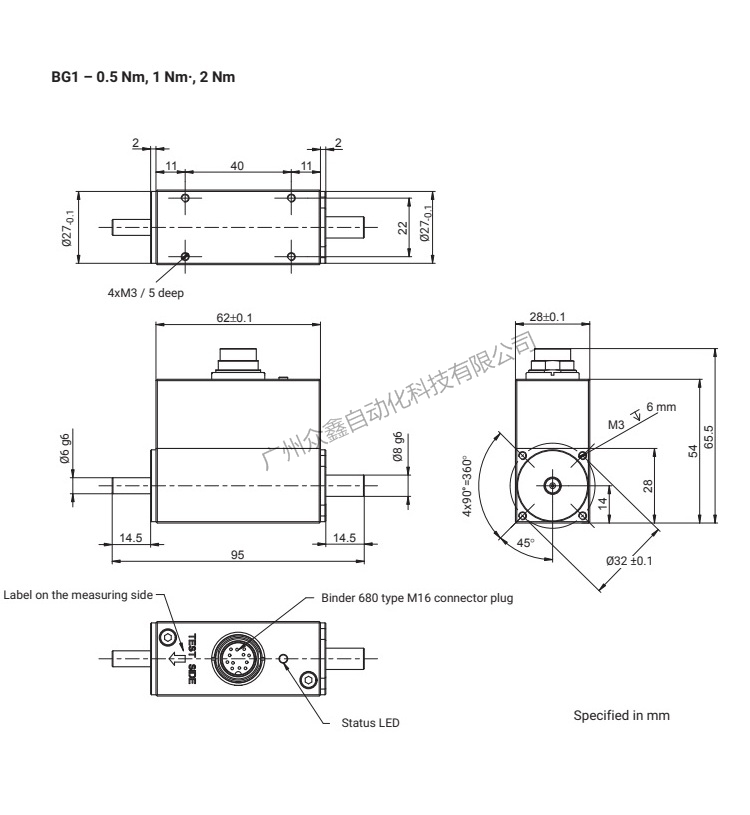

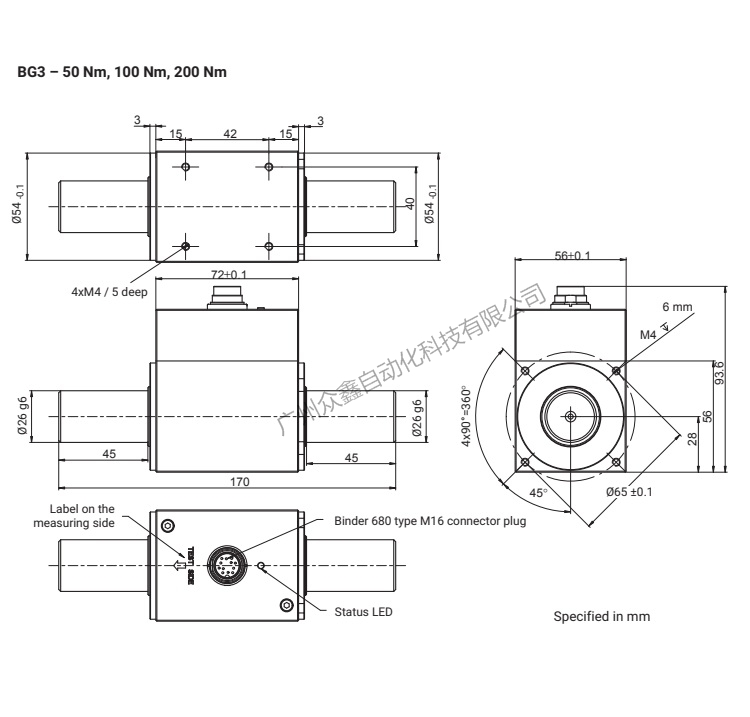

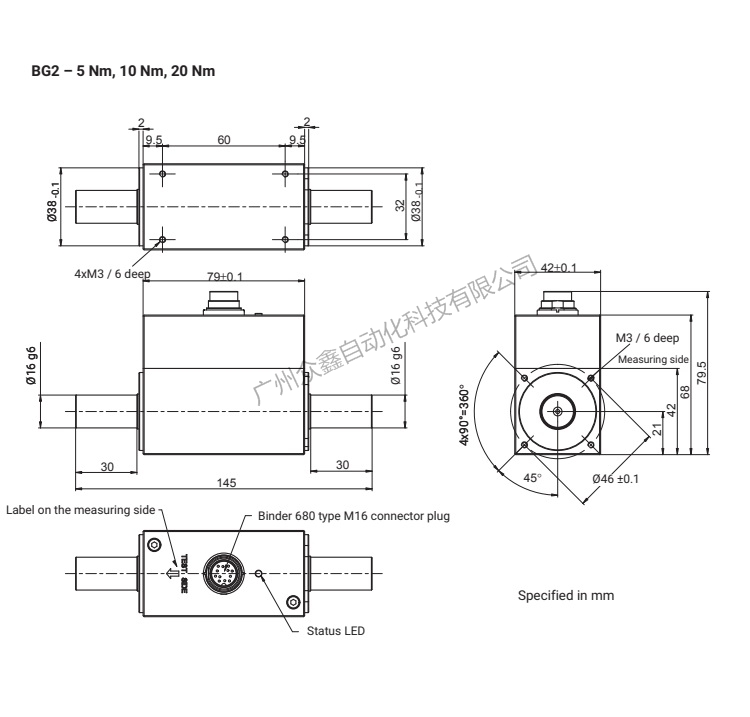

5、 German HBM brand T210 torque sensor product size

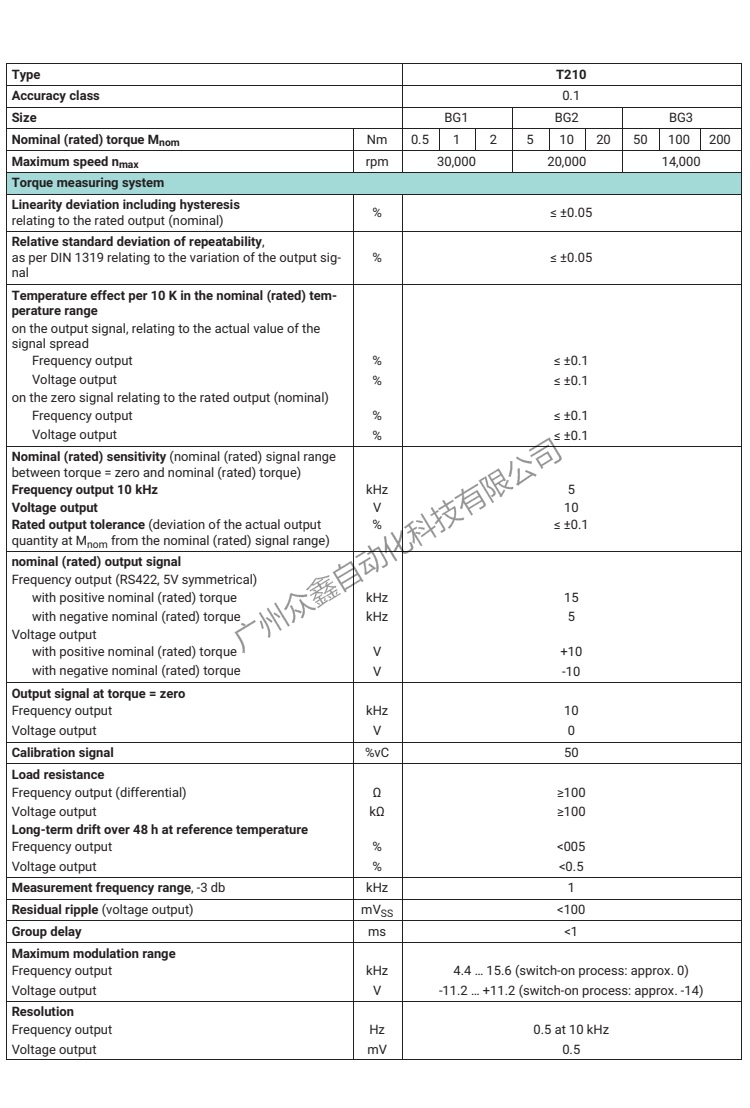

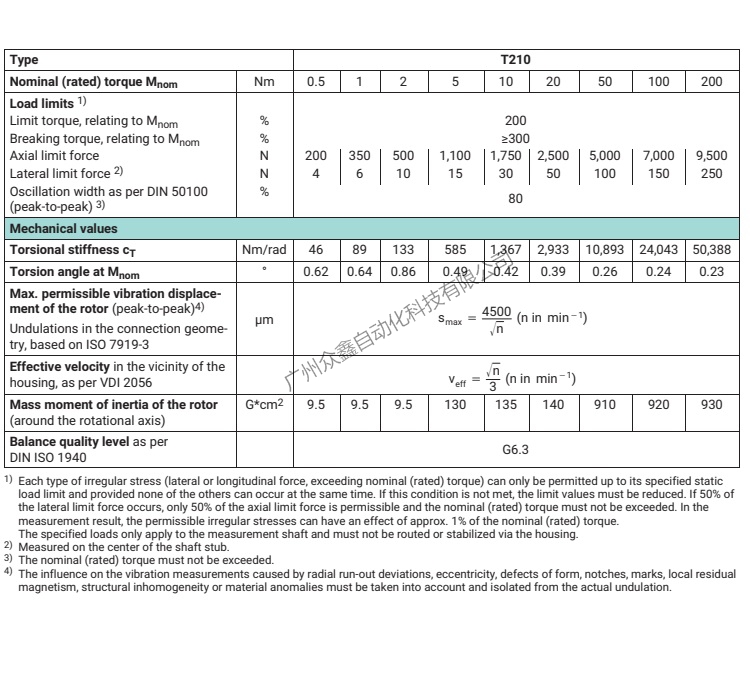

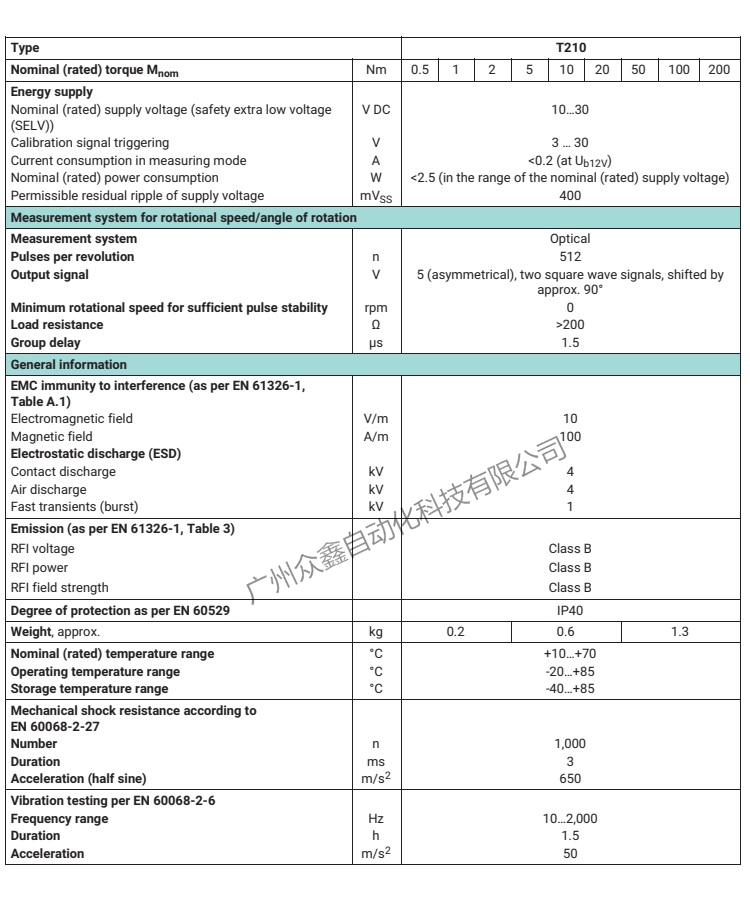

6、 Technical parameters of German HBM brand T210 torque sensor
