U10F force sensor from German HBM brand for static and dynamic measurement with a range of 50KN to 1.25MN

1、 U10F Force Sensor Product Introduction

Product brand: HBM Germany

Product model: U10F

Product Type: Force Sensor

Product Features:

(1) Precision and durable tension/pressure sensors for static and dynamic measurement tasks

(2) The nominal (rated) force ranges from 50 kN to 1.25 millinewtons

(3) Both sides have flange connections, making installation very convenient

(4) Very good lateral force and bending moment stability

(5) Special design to compensate for lateral forces and bending moments

(6) The numerous possible configurations, such as TEDS chips, dual bridge type, and various electrical connections, mean that it can flexibly adapt to various measurement tasks

(7) Made of non rusting materials, with a protection level of IP68 if required

(8) High natural frequency, very suitable for measuring fast processes

2、 U10F Force Sensor All Models

U10F/50KN

U10F/125KN

U10F/250KN　

U10F/500KN

U10F/1.25MN

3、 U10F force sensor product image

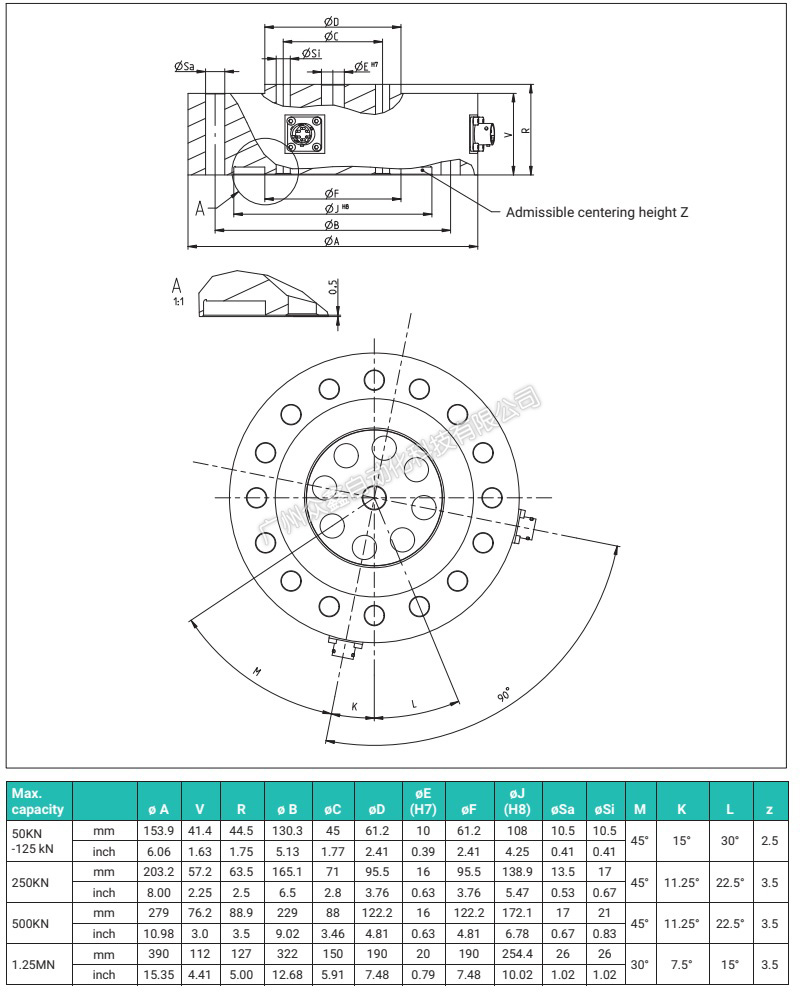

4、 U10F force sensor product size

5、 U10F force sensor product parameters
