GM7702 Weighing Transmitter Jieman Small Weight Display

1、 Product Introduction of Jieman GM7702 Weighing Transmitter

Product brand: Jieman

Product type: Weighing transmitter, weight display

Product Series: GM7702

Product Introduction

GM7702 weight display is a small weight display developed and produced for industrial sites that require weight transmission. This weight monitor has the characteristics of small size, stable performance, and simple and applicable operation. It can be widely used in concrete mixing and asphalt mixing equipment, metallurgical blast furnaces, converters and chemical plants, weight control of feed, and other occasions.

Product Features:

1. Small size, beautiful appearance, convenient and applicable

2. Suitable for all resistance strain bridge weighing sensors

3. Full panel digital calibration, simple process, convenient and intuitive

4. Digital filtering function

5. Automatic zero position tracking function

6. Automatic reset function when powered on

7. Bidirectional isolation serial port function, with RS485 and RS232 for convenient communication with the upper computer

8. The weight display can be calibrated through the serial port (with the serial calibration switch turned on)

9. 16 bit DA output function

10. 2-input 3-out switch input/output, supporting limit control output

11. RS232 communication interface supports online program upgrade

12. Tare weight processing function

Product Parameters:

1. Power supply: DC24V ± 5%

2. Working temperature: -10~40 ℃

3. Maximum humidity: 90% R.H. No condensation allowed

4. Power consumption: approximately 0.8W

5. Sensor power supply: DC5V 100mA (MAX)

6. Input impedance: 10M Ω

7. Zero adjustment range: 0.00-12mV when the sensor is 3mV/V

8. Input sensitivity: 0.1uV/d

9. Input range: 0.00~15mV (sensor is 3mV/V)

10. Conversion method: Sigma Delta

11. A/D conversion speed: 120, 240, 480 times/second

12. Nonlinear: 0.01% F.S

13. Gain drift: 10PPM/℃

14. Maximum display accuracy: 1/100000

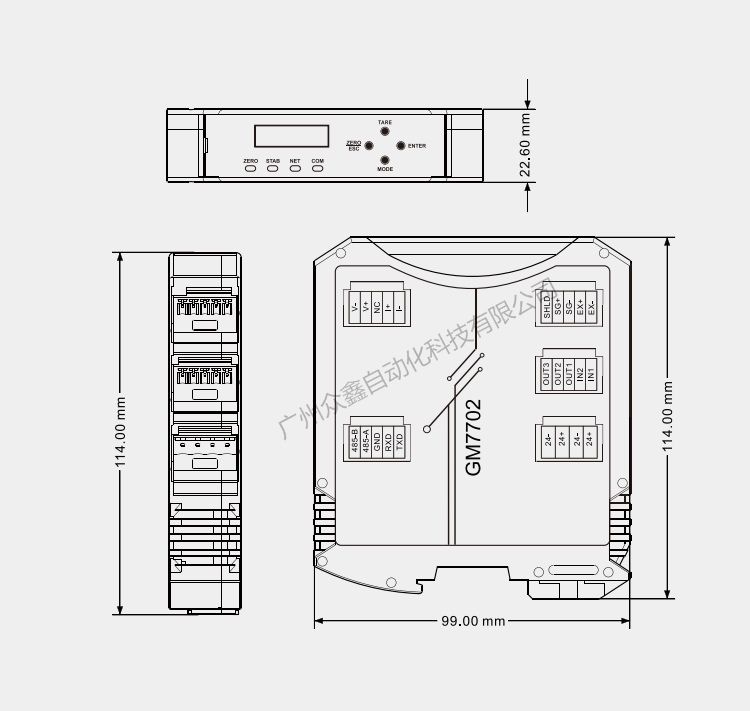

2、 Product size

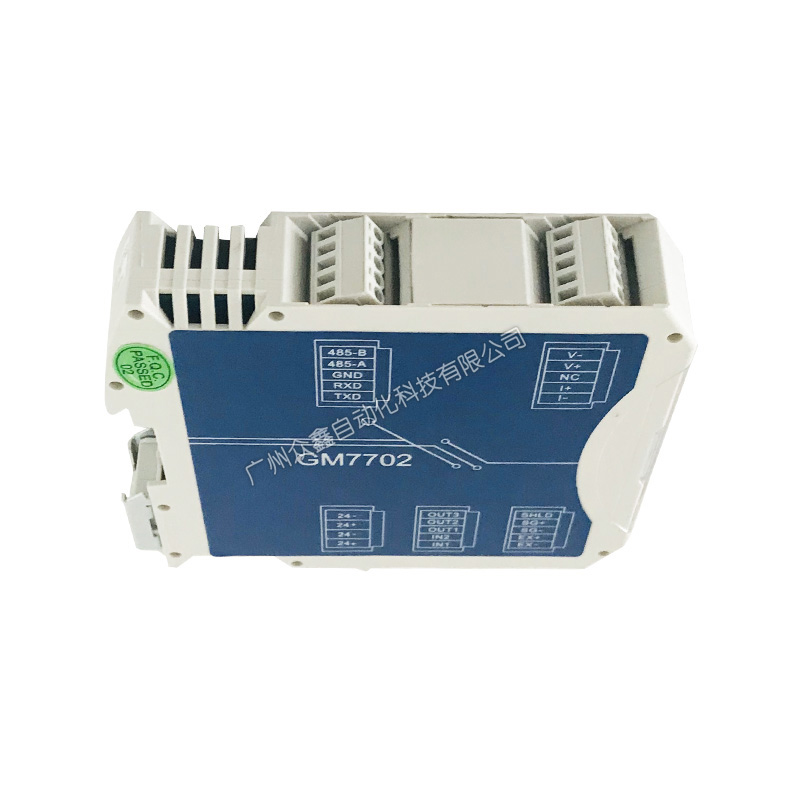

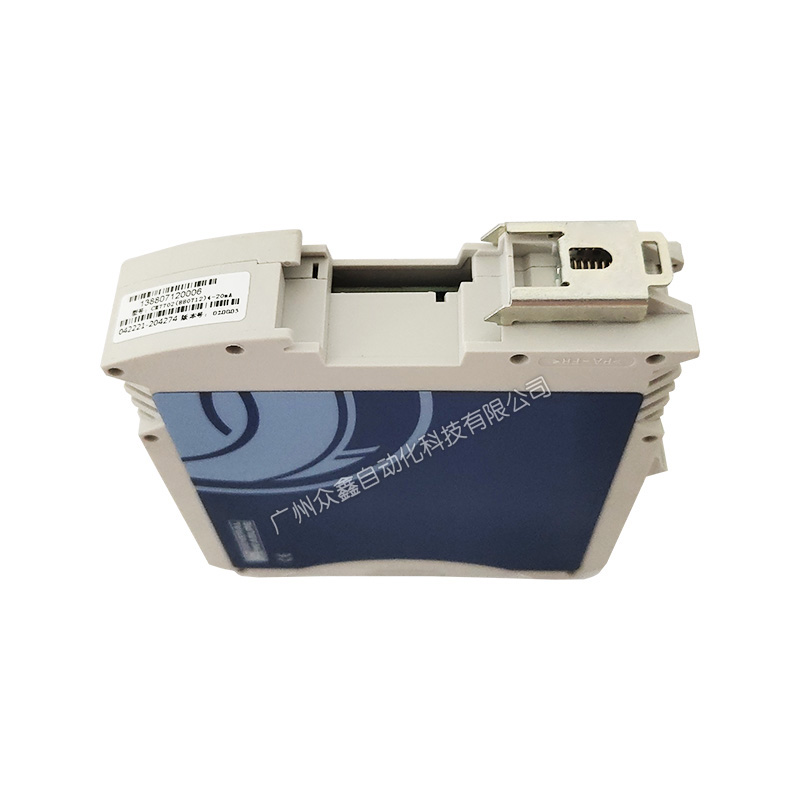

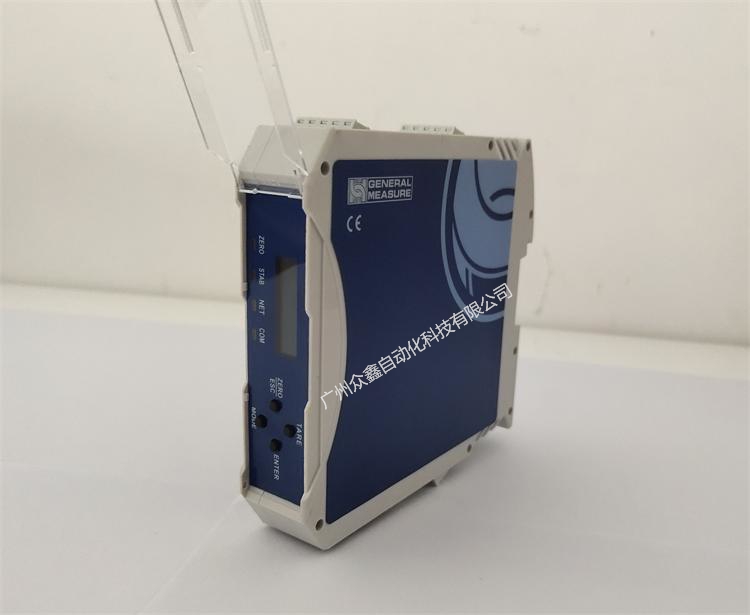

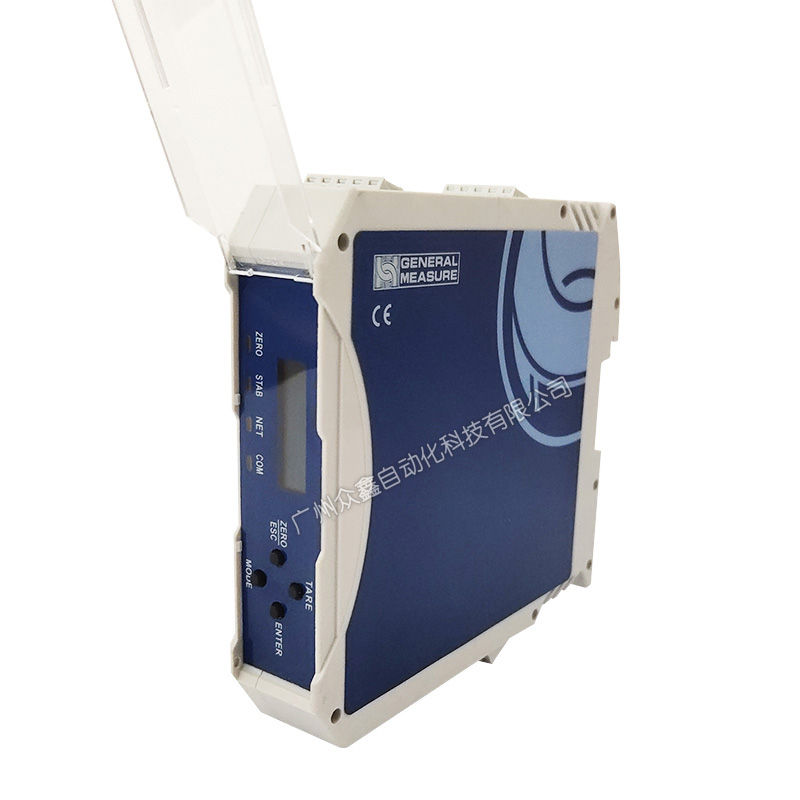

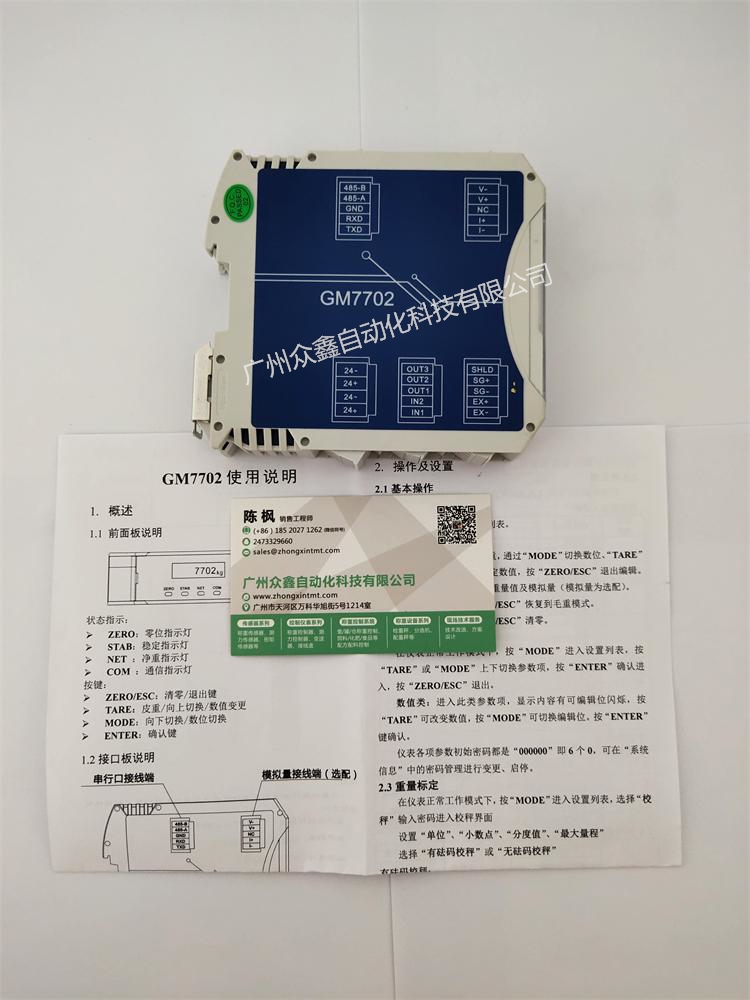

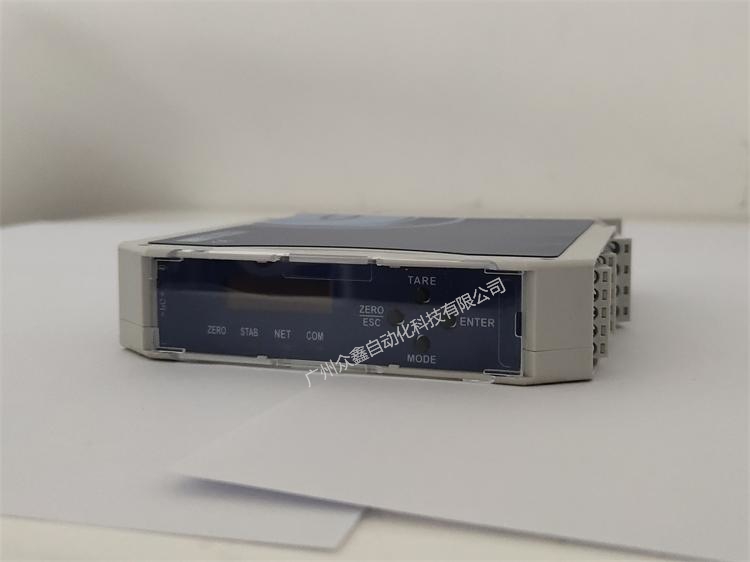

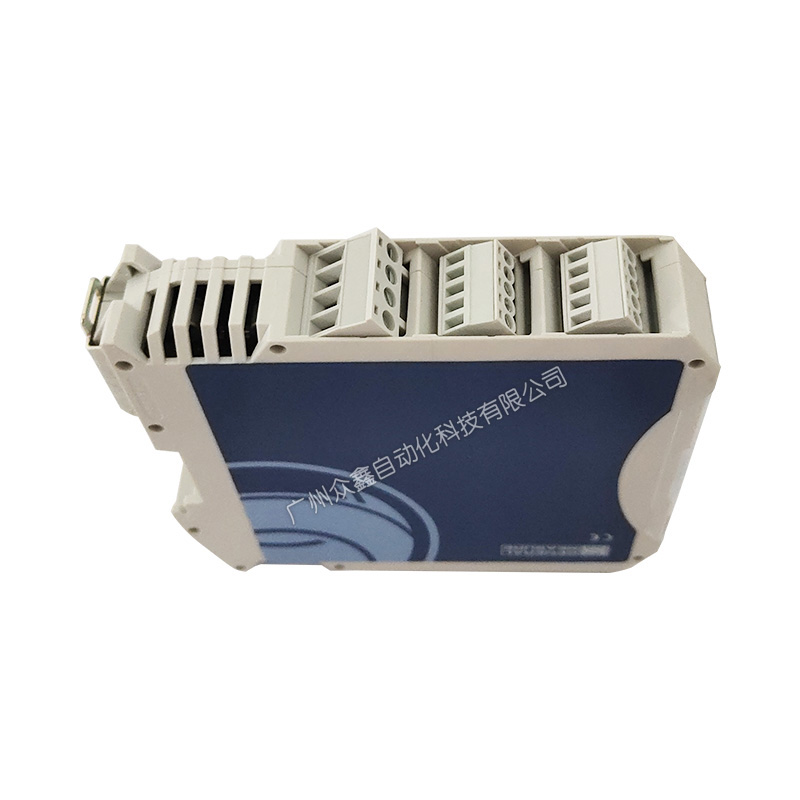

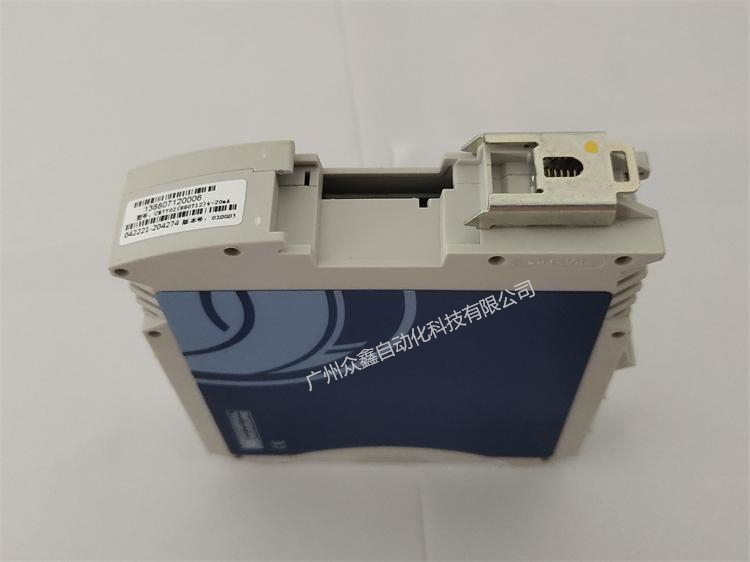

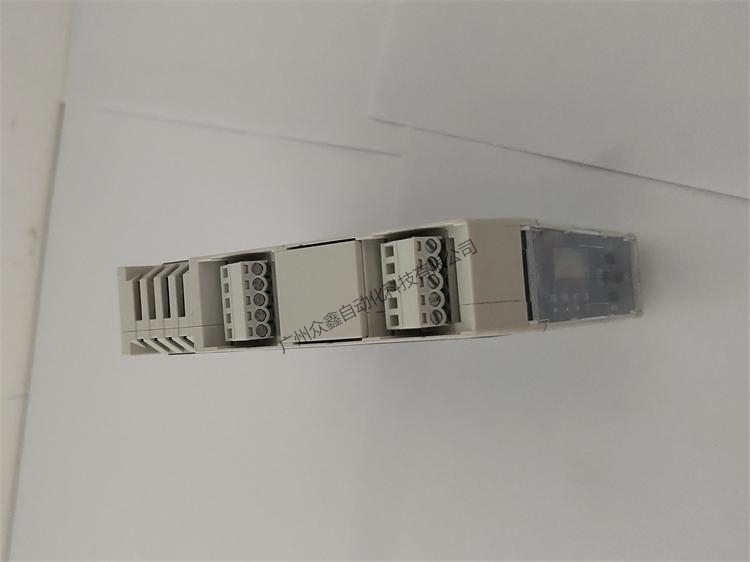

3、 Product images
