1、 Introduction to Mettler Toledo B520.10 Weighing Instrument
Product series:B520
Model introduction: B520.10 is a standard type with 6 types of material ingredients
Product Type:Weighing instrumentElectronic weighing instrument
Note: The B520 has been discontinued and is now being replaced with the C30 model. Currently, there is still a small amount of inventory in the B520
Product Introduction: B520 is a cost-effective instrument launched by METTLER TOLEDO, suitable for various packaging occasions; On the basis of inheriting the excellent performance of METTLER TOLEDO products, the B520 instrument has made a great leap in weighing speed and accuracy, effectively solving various speed and accuracy problems in packaging, truly achieving fast and accurate weighing

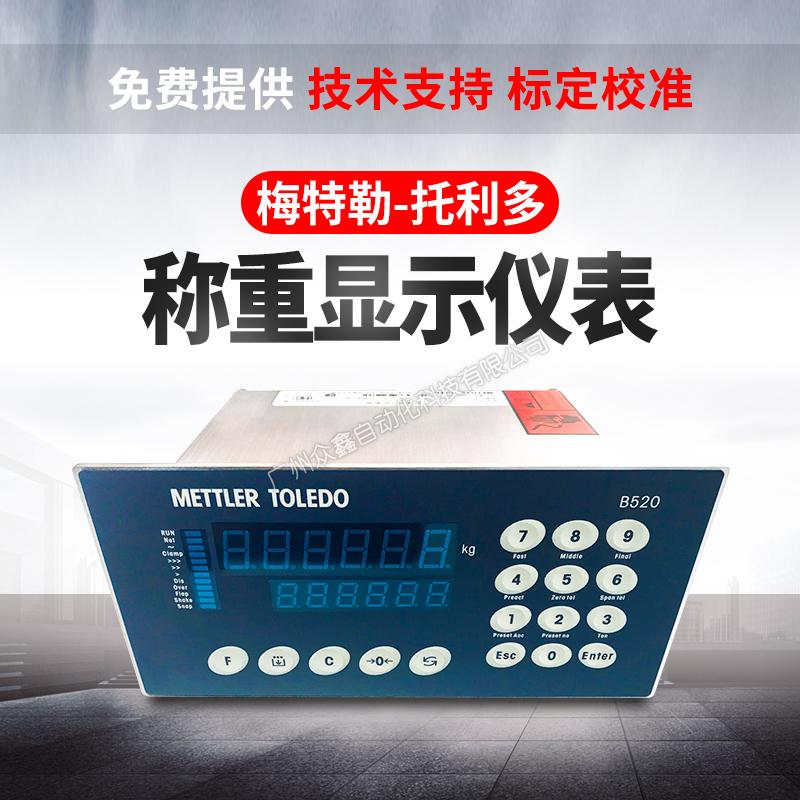

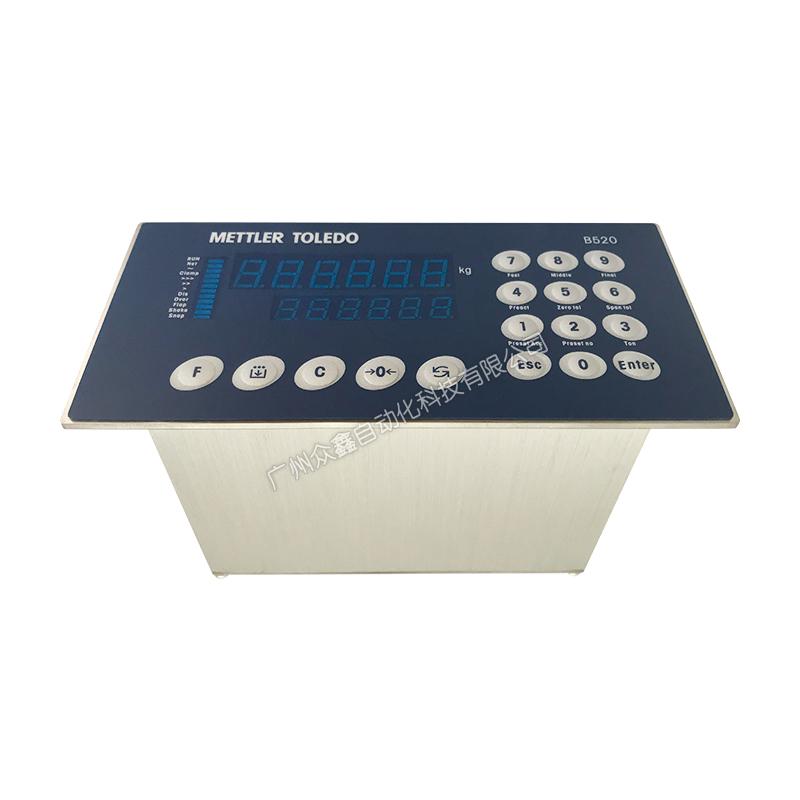

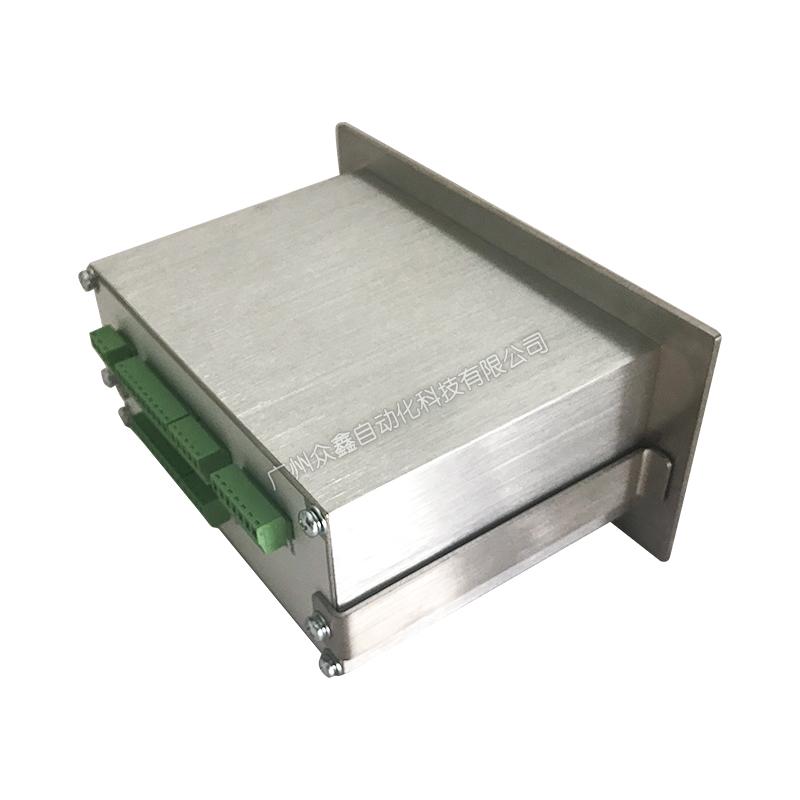

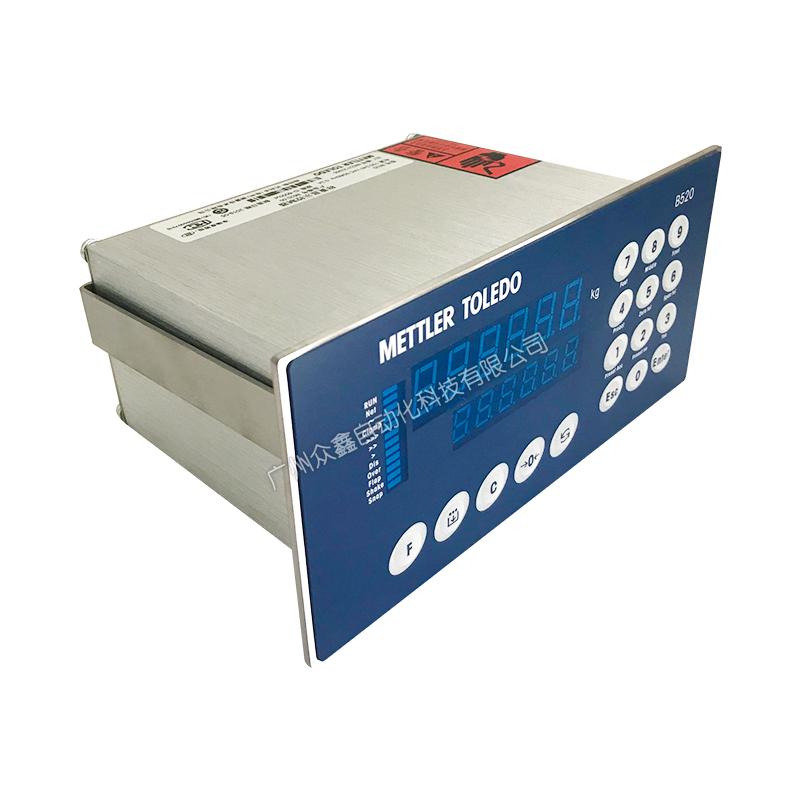

2、 Real picture of Mettler Toledo B520 weighing instrument
3、 Mettler Toledo B520 weighing instrument related models
B520.00, standard type, standard packaging function
B520.10, standard type, 6 material ingredients
4、 Features of Mettler Toledo B520 weighing instrument
Main hardware features:
(1) 10V driving voltage, capable of driving up to four 350 ohm analog sensors
(2) High precision and resolution S-D type A/D conversion, with an internal A/D conversion rate greater than 337 times/second
(3) 2 bright white LED displays: capable of displaying information such as actual weighing value, target weight, and current gross weight separately
(4) 17 keyboards, including numbers and function keys
(5) Display graduation of 1000-10000d is optional, and graduation value of 0.001-10 is optional
(6) 2 serial ports (RS232/RS485, data format is continuous/command selectable)
(7) Real-time clock circuit with power-off protection

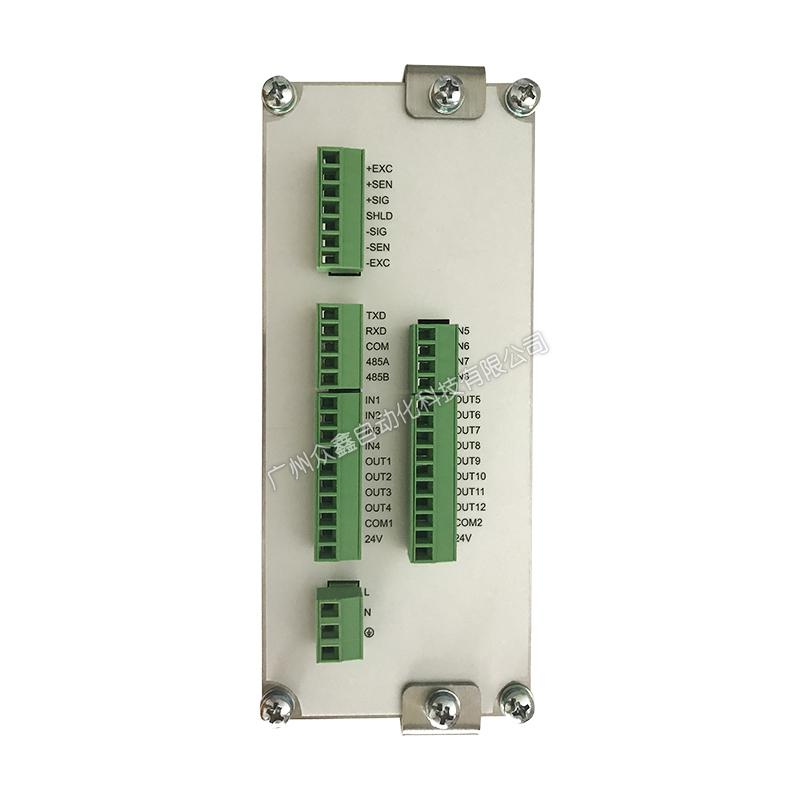

(8) 8 input/12 output interfaces with photoelectric isolation
(9) Global universal power supply, ranging from 87VAC to 264VAC
(10) All metal structure, with front panel protection level of IP65
(11) Use highly reliable and convenient on-site wiring connectors
(12) Internal software can be upgraded or updated at any time through RS-232
(13) SMT technology, high reliability and stability, tested in EMC, RFI, and other aspects
Main software features:
(1) High speed software filtering model greatly improves packaging speed and accuracy
(2) Built-in multiple fixed ingredient modes, no need for PLC support to directly drive the relay to complete the function
(3) It can perform general multi material batching with manual and automatic functions, and the process is simple;
(4) Can store 10 formulas, easy to call;
(5) Data band power outage protection
(6) MODBUS communication function allows for data exchange and status transfer with the upper computer
(7) Automatic zero tracking and dynamic detection function
(8) Multiple time delay setting function
(9) I/O port peeling, zeroing, peeling, can achieve any ingredient process;
(10) Can achieve the reduction method process, suitable for various occasions;
(11) Humanized operation and setting, simple and convenient
(12) TraxDSP ä anti vibration filtering technology can prevent errors caused by the vibration of the scale body
(13) Can save debugging parameters and restore debugging parameters separately
5、 Mettler Toledo B520 weighing instrument product dimensions
