56H40000B0F0 controller XK3139 IND560 series weighing instrument

56H40000B0F0 controller XK3139 IND560 series weighing instruments

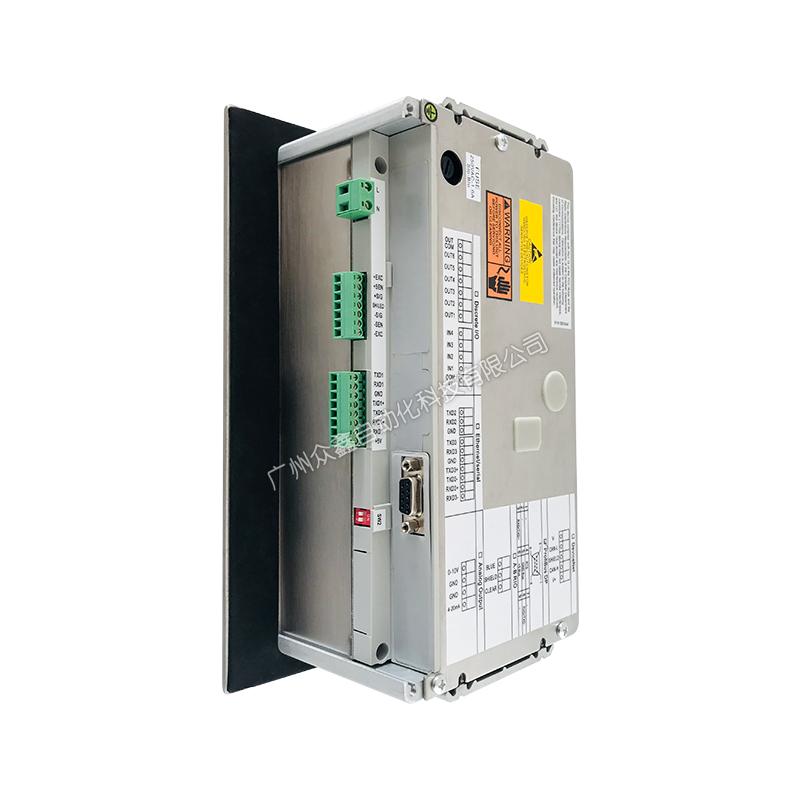

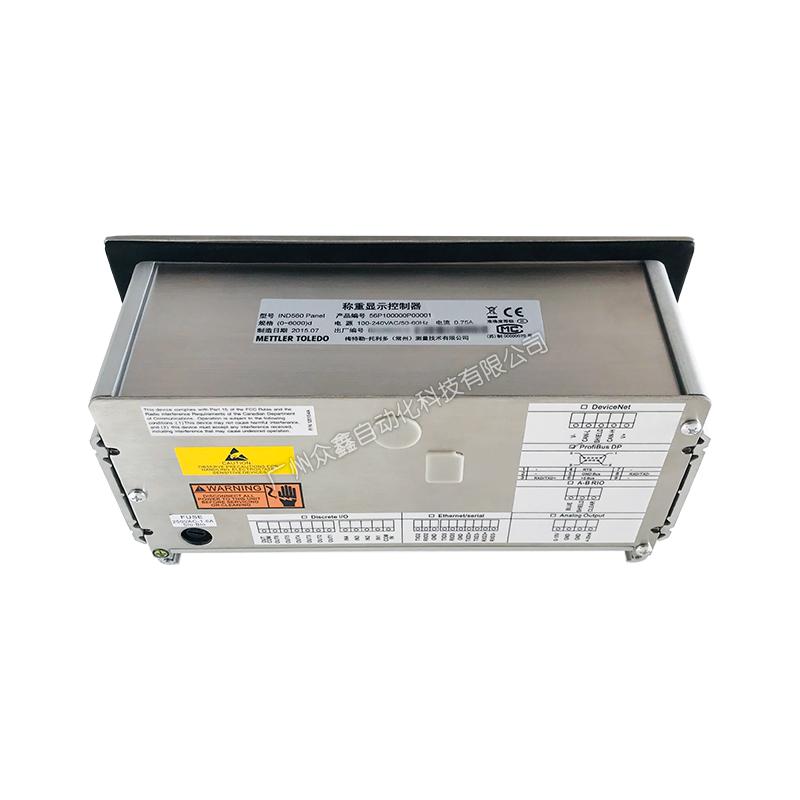

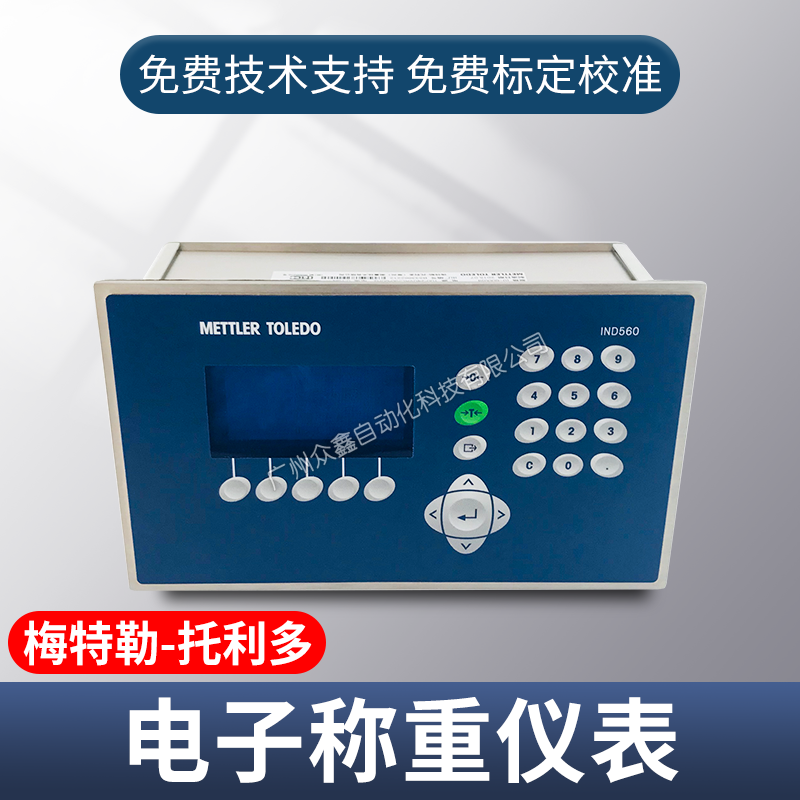

>Mettler Toledo 56H40000B0F0 Control Instrument Product Introduction

Product brand: SwitzerlandMettler Toledo weighing display instrumentPower Transcell weighing instrument
Product feature: weighing display instrument
The IND560 weighing terminal is a universal instrument used for process control
Panel mounted control cabinet, dustproof for desktop and pillar mounted installation
4.71-inch OLED full environment display screen, all Chinese display settings
Built in USB interface for external keyboard, scanning gun, data backup, recovery, and software upgrade
Up to 12 analog sensors can be connected, and a high-precision weighing platform with IDNET interface can be connected. The maximum display graduation is 10000d (connected to analog scales)
Support fixed value filling and ingredient weighing solutions for 6 types of materials
IND560BC dedicated instrument for continuous batching (belt scale or feeder) weighing controller
The IND560CF dedicated instrument is used as a weighing controller for continuous feeding equipment due to weight loss
The standard explosion-proof IND560 can be used in gas and dust environments
Configure 4-20mA, I/O interface, Profibus DP interface
Installation dimensions of Mettler Toledo 56H40000B0F0 control instrument

Mettler Toledo 56H40000B0F0 complete specification and model of control instrument
56P1-00000-000, 56P4-00000-000, 56P1-0000B-0F0, 56P4-0000B-0F0, 56H1-00000-000, 56H4-00000-000, 56H1-000B-A00-023, 56H1-0000B-0J0-023, 56H1-0000B-0F0, 56H4-0000B-0F0　
expand

Brand Introduction
Chuanli Electronics Group was established in Chicago, USA in 1981. It is a well-known enterprise group specializing in the production of sensors and various electronic weighing instruments. Its products are sold throughout the Americas, Europe, Southeast Asia, and Australia Based on a global business strategy, Chuanli has multiple branches worldwide In the Asian region, the main branches include Taipei Quanli, Nanjing Chuanli, Shanghai Quanli, Changzhou Chuanli, Tianjin Chuanli, etc Chuanli Electronic Weighing Instrument (Nanjing) Co., Ltd. was established at the end of 1997 as the production base of the group in China, mainly producing various types of products Load cell 、Weighing instrumentDozens of series and hundreds of varieties, including electronic weighing instruments and automatic control testing equipment, covering various precision and range Nanjing Chuanli has a complete research and development institution, advanced mechanical manufacturing equipment, and comprehensive testing and experimental methods We have always attached great importance to product quality and management quality, and have passed international certifications such as NTEP, UL, CE, and ISO 9001:2000; Its production technology and product quality are in a leading position in both the international and domestic markets Chuanli adheres to the business philosophy of "professional quality, sincere and sincere", and wholeheartedly serves you with professional high-quality products
　
Structural principle of weighing display
There are many varieties of digital display type weighing control displays (abbreviated as digital displays), and Figure 1 shows one of them The digital display receives and processes electrical signals output by the Load cell Electrical signals can be analog or digital, with the most common being analog voltages ranging from a few to tens of millivolts The circuit principle of the digital display is shown in Figure 2 The excitation power supply supplies the working power supply of the load cell and also supplies the reference voltage of the A/D (analog-to-digital) conversion unit, with a stability generally above 0.1%. The amplification unit usually adopts a measurement amplifier structure to receive and amplify the signal of the load cell The magnification is usually several hundred times The filtering unit filters out electrical noise that is mixed in from outside the machine and generated by the amplifier itself The A/D conversion unit converts analog quantities into digital quantities, with conversion bits typically taking 14 or more binary digits The data processing unit is composed of a microprocessor as the core and peripheral support chips. It completes a series of operations such as data collection, computation, and storage under the control of the program, and the processing results are sent to the corresponding interface The display unit displays the weighing value and status in the form of numbers, text, or charts, and can communicate with external devices through interfaces
Performance characteristics
The performance of digital displays includes five aspects: metrological performance, functionality, environmental adaptability, safety, and reliability Compared with general digital instruments, digital displays have five characteristics: ① built-in sensor excitation power supply, easy to use; ② Adopting ratio based A/D conversion and frequency doubling technology, with good long-term stability in metrological performance; ③ The software can truly simulate weighing characteristics such as vibration, empty scale changes, and material drop, displaying fast, accurate, and stable; ④ There are setting units for parameters such as zero setting, zero tracking, calibration, maximum weighing, and indexing position in the machine, which are easy to adjust and have strong universality; ⑤ With an output interface, it can connect multiple external devices and facilitate system control
　
The above is 56H40000B0F0 weighing display instrument Mettler Toledo Control Instrument in Switzerland Detailed information, if you are interested in 56H40000B0F0 weighing display instrument Mettler Toledo Control Instrument in Switzerland, if you have any questions about the price, delivery date, model and inventory of the control instrument, please call 18520271262 to get the latest price details of 56H40000B0F0 weighing display instrument Mettler Toledo Control Instrument in Switzerland
