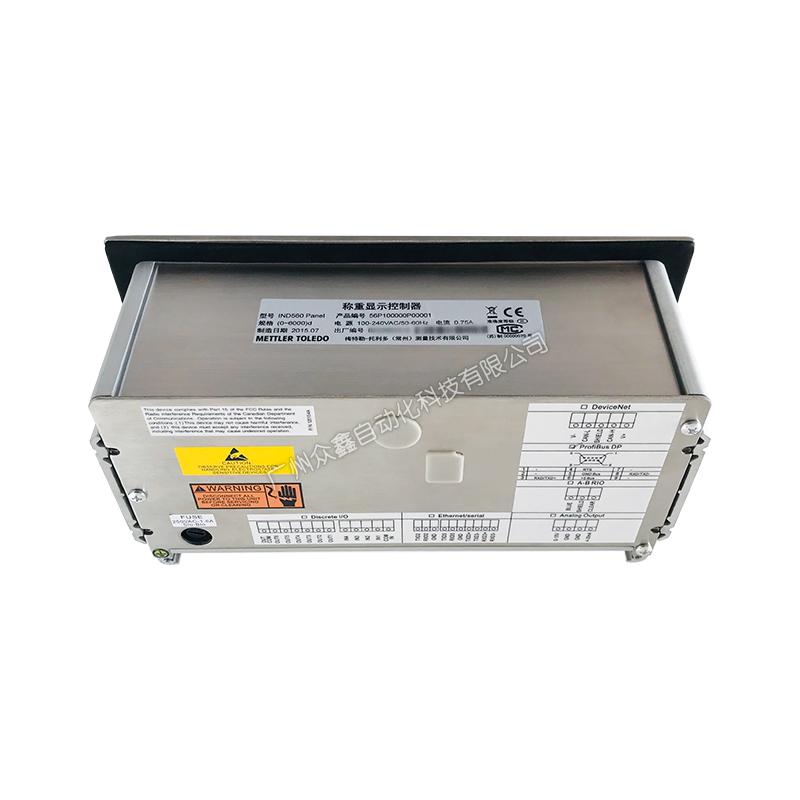

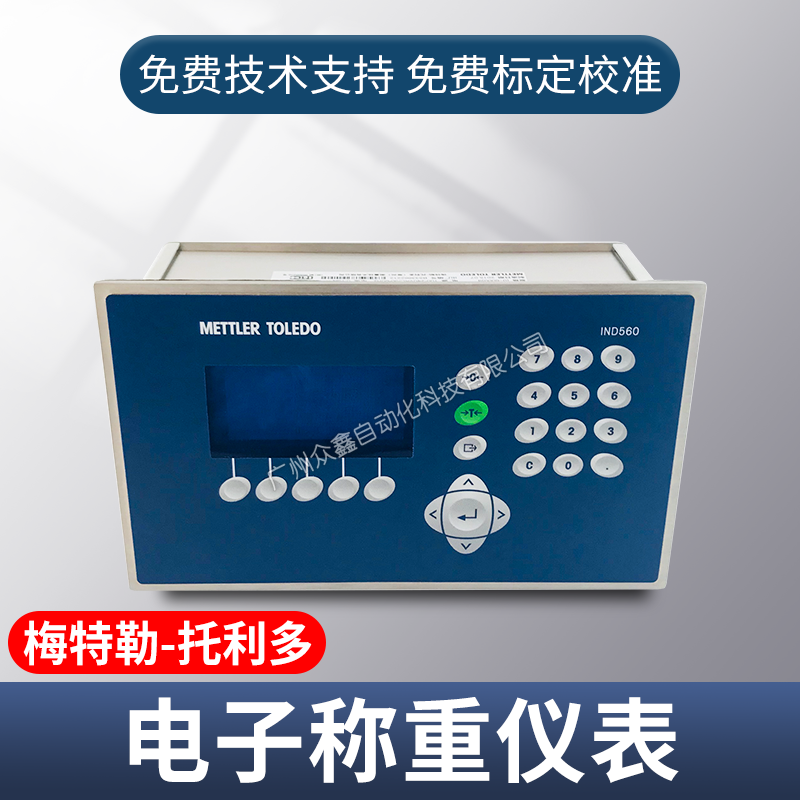

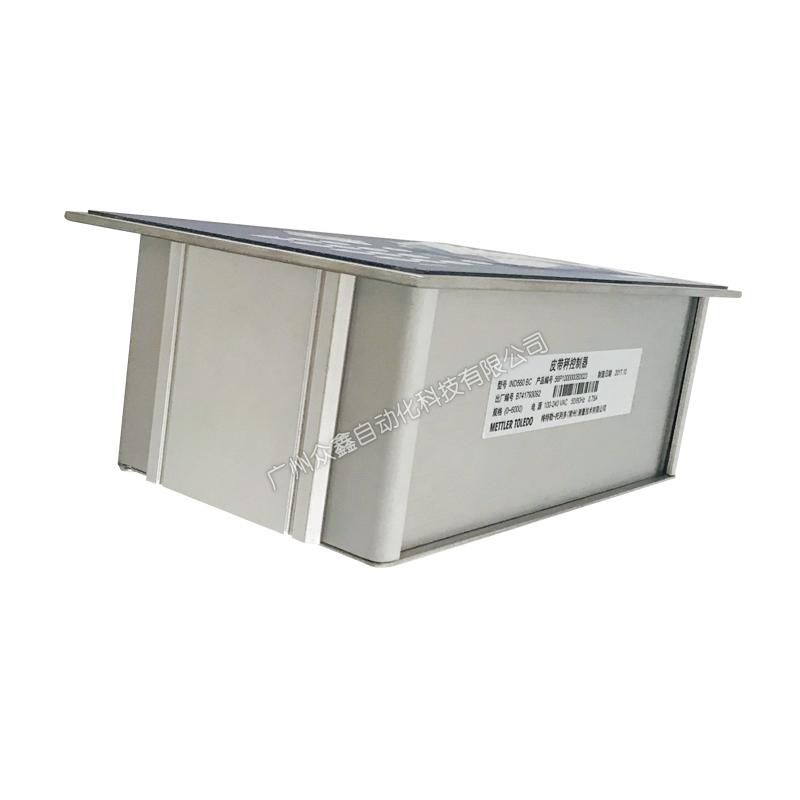

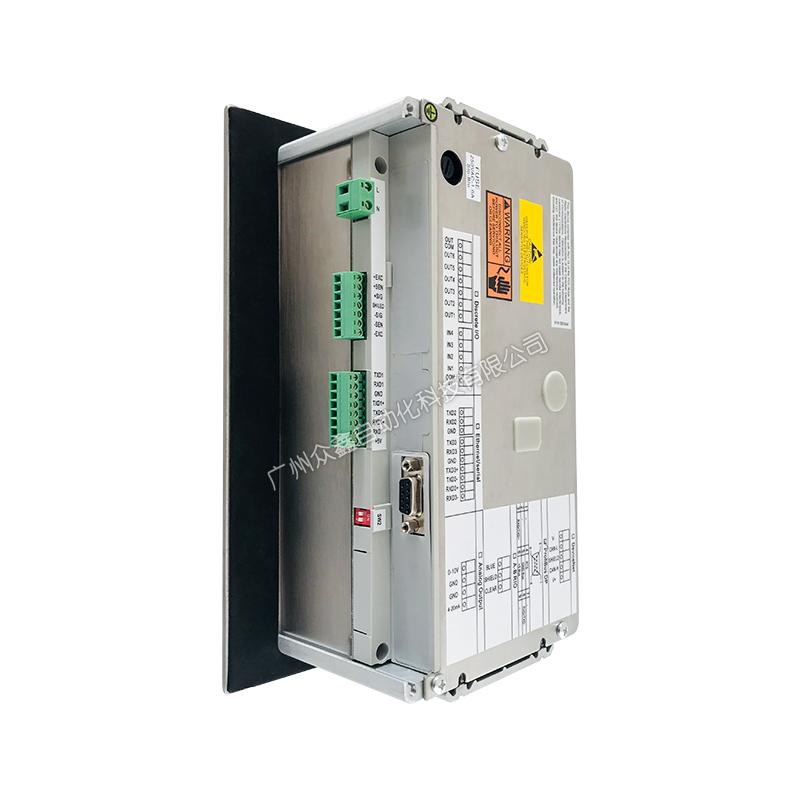

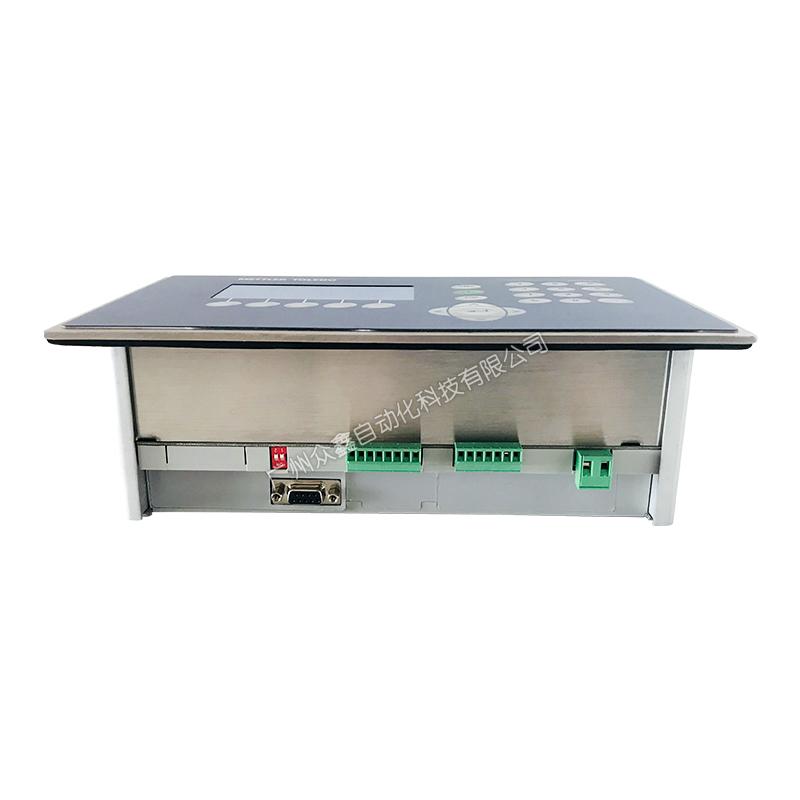

Mettler Toledo 56P400000000 Control Instrument Product Introduction

Product brand: SwitzerlandMettler Toledo weighing display instrumentPower transmission weighing instrument
Product features: Weighing display instrument
The IND560 weighing terminal is a universal instrument used for process control
Panel type that can be installed inside the control cabinet, dustproof type that can be installed in both desktop and column types
4.71-inch OLED full environment display screen with full Chinese display settings
Built in USB interface for external keyboard, scanner, data backup, recovery, and software upgrade
Up to 12 analog sensors can be connected, and high-precision weighing platforms with IDNET interfaces can be connected, with a maximum display division of 10000d (connected to analog scales)
Support fixed value filling of 6 types of materials, ingredient weighing solution
IND560BC dedicated instrument continuous batching (belt scale or feeder) weighing controller
IND560CF dedicated instrument for weighing controller used in weight loss discontinuous feeding equipment
The standard configuration explosion-proof IND560 can be used in gas and dust environments
Configure 4-20mA, I/O interface, Profibus DP interface

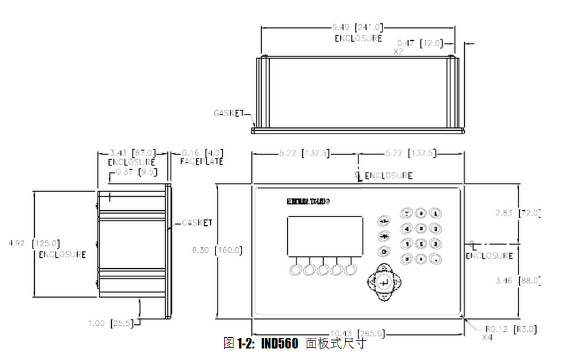

Mettler Toledo 56P400000000 Control Instrument Installation Dimensions

Mettler Toledo 56P400000000 complete specifications and models of control instruments
56P1-00000-000，56P4-00000-000，56P1-0000B-0F0，56P4-0000B-0F0，56H1-00000-000，56H4-00000-000，56H1-000B-A00-023，56H1-0000B-0J0-023，56H1-0000B-0F0，56H4-0000B-0F0　
expand

Brand Introduction
Chuanli Electronics Group was founded in Chicago, USA in 1981. It is a well-known enterprise group specializing in the production of sensors and various electronic scales, and its products are marketed throughout the Americas, Europe, Southeast Asia, and Australia. Based on a global business strategy, Chuanli has multiple branches worldwide. In the Asian region, the main branch offices include Taipei Quanli, Nanjing Chuanli, Shanghai Quanli, Changzhou Chuanli, Tianjin Chuanli, etc. Chuanli Electronic Weighing Instrument (Nanjing) Co., Ltd. was established at the end of 1997 as the production base of the group in China, mainly producing various types of productsThe weighing sensor、Weighing instrumentThere are dozens of series and hundreds of varieties of electronic scales and automatic control detection equipment, covering various accuracies and ranges. Nanjing Chuanli has complete scientific research and development institutions, advanced mechanical manufacturing equipment, and comprehensive testing and experimental methods. We have always attached great importance to product quality and management quality, and have passed international certifications such as NTEP, UL, CE, as well as ISO 9001:2000 certification; Its production technology and product quality are in a leading position in both international and domestic markets. Chuanli adheres to the business philosophy of "professional quality, sincerity and dedication", and serves you wholeheartedly with professional high-quality products.
　
Structure principle of weighing display
There are many types of digital display weighing control displays (referred to as digital displays), and one of them is shown in Figure 1. The digital display receives and processes the electrical signal output by the weighing sensor. Electrical signals come in both analog and digital forms, with the most common being analog voltages ranging from a few to tens of millivolts. The circuit principle of the digital display is shown in Figure 2. The excitation power supply supplies the working power of the weighing sensor, while also supplying the reference voltage of the A/D (Analog/Digital) conversion unit, with a stability generally above 0.1%. The amplification unit usually adopts a measurement amplifier structure to receive and amplify the signal of the weighing sensor. The magnification is usually several hundred times. The filtering unit filters out electrical noise mixed in from outside the machine and generated by the amplifier itself. The A/D conversion unit converts analog signals into digital signals, and the number of conversion bits is usually 14 or more binary digits. The data processing unit is composed of a microprocessor as the core and peripheral support chips. It completes a series of operations such as data acquisition, operation, and storage under the control of the program, and sends the processing results to the corresponding interface. The display unit displays the weighing value and weighing status in the form of numbers, text, charts, etc., and can communicate with external devices through interfaces.
Performance characteristics
The performance of a digital display includes five aspects: metrological performance, functionality, environmental adaptability, safety, and reliability. Compared with general digital instruments, digital displays have five characteristics: ① Equipped with sensor excitation power supply, easy to use; ② Adopting ratio type A/D conversion and frequency doubling technology, the long-term stability of metrological performance is good; ③ The software can accurately simulate weighing characteristics such as vibration, empty scale changes, and material drop, displaying fast, accurate, and stable results There is a setting unit for setting parameters such as empty scale zero setting, zero tracking, calibration, maximum scale capacity, and division position inside the machine, which is easy to adjust and has strong universality; ⑤ With an output interface, it can connect multiple external devices for easy system control.
　
